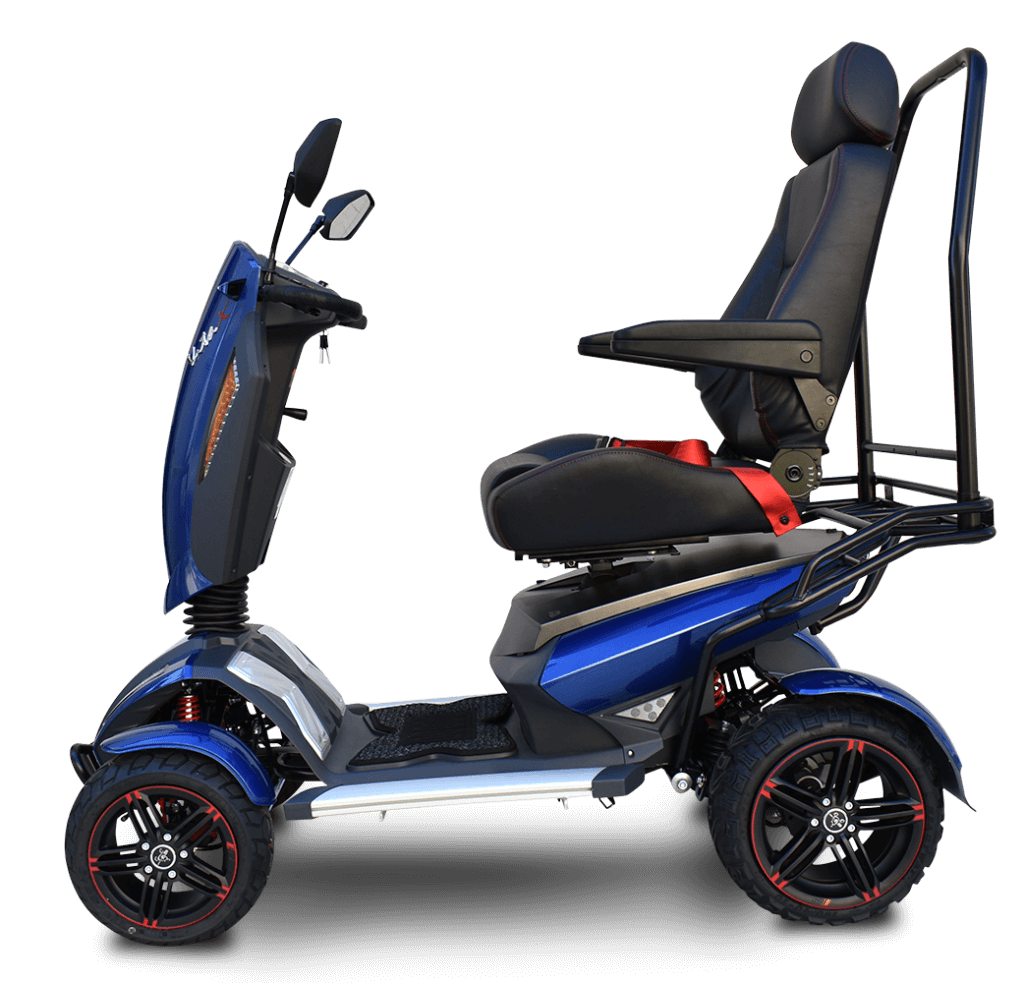

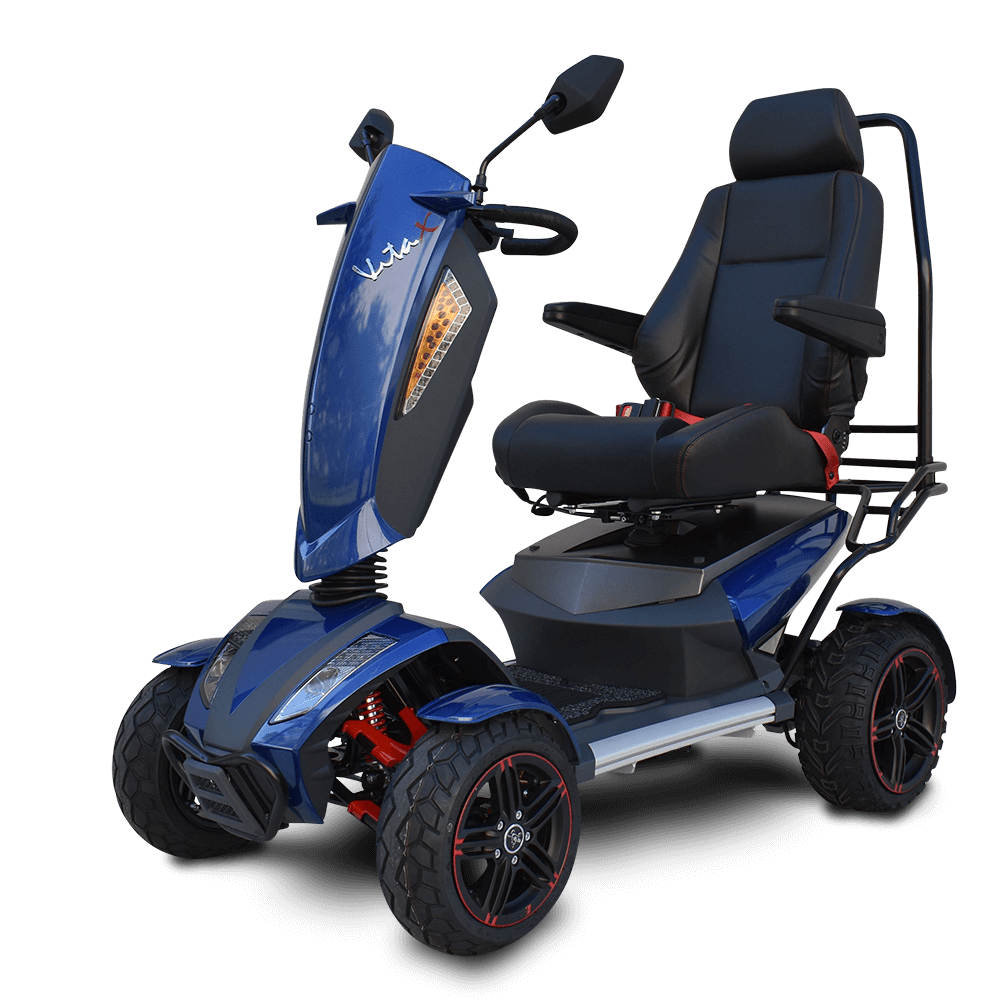

EV Rider Vita Monster 4-Wheel Mobility Scooter

(No reviews yet) Write a Review
SKU: IMC-VitaMonster

Regular Price: $5,995.00
Sale: $5,495.00
(You save $500.00 )

EV Rider Vita Monster 4-Wheel Mobility Scooter

(No reviews yet) Write a Review
SKU: IMC-VitaMonster

Regular Price: $5,995.00
Sale: $5,495.00
(You save $500.00 )
Regular Price: $5,995.00
Sale: $5,495.00
Regular Price: $5,995.00
Sale: $5,495.00
(You save $500.00 )
#1 Rated Mobility Provider
Free Shipping on Orders Over $100
100% Satisfaction Guarantee
Secure Ordering
ATP-Certified Staff Support
Financing Available

  • Description

    EV Rider Mobility Scooter - Vita Monster 4 Wheel

    The Heartway S12X Vita Monster is a sleek, all-terrain power scooter. The Vita Monster has a 900-watt motor and uses a 200 Amp S-drive controller to power through all types of terrain. The 15″ x 6.3″ rear turf tires allow easy outdoor maneuverability.

    The Vita Monster has a double A-Arm front suspension and 3D rear suspension for a smooth ride and maximum shock absorption. It comes with a full LED light package, rearview mirrors, and a roll bar. The Vita Monster’s top speed is 11.5 mph, with a range of up to 28 miles per charge. Other features for the Vita Monster include a sporty 20″ captains seat, cup holder, and adjustable tiller.



    Unmatched Comfort for Long Rides

    The EV Rider Mobility Scooter - Vita Monster 4 Wheel is designed with your comfort in mind. It's luxurious, fully adjustable captain's seat ensures that you will enjoy a comfortable ride no matter how long you need to be on the go. This seat is adjustable in many ways, including height, width, and angle so it can fit you comfortably with no discomfort. Also, the scooter has a fully adjustable front and rear suspension, for a smoother and more comfortable ride. With the Vita Monster, you can be sure that your long rides will always be comfortable.

    Powerful and Durable Build for Maximum Performance

    The Vita Monster 4 Wheel boasts a powerful 900-watt motor and four-wheel drive that enables it to tackle even the toughest terrains. The heavy-duty build can support up to 450 lbs, making it an ideal option for larger individuals who require a sturdy and reliable scooter. The wheels are designed to provide maximum traction, even on uneven surfaces, and the Vita Monster's top speed of 11.5 mph means you'll get where you need to go quickly and safely.

    Versatile and Convenient for Everyday Use

    The EV Rider Mobility Scooter - Vita Monster 4 Wheel is the perfect solution for individuals who need a versatile mobility scooter that can be used both indoors and outdoors. The scooter's turning radius of 53" allows for easy maneuvering in tight spaces, and its compact size means it can easily fit through doorways and other narrow passages. With a range of up to 28 miles on a single charge, you can rest assured that the Vita Monster 4 Wheel can take you where you need to go, no matter the distance.

    Key Specs:

    • Speed – Maximum: 11.5 mph
    • Load Capacity: 350 lbs
    • Weight with Std: 330
    • Driving Range: 28 miles



    Overall Length 64″ in / 162 cm
    Overall Width 31″ in / 79 cm
    Overall Height (at Maximum Tiller Height) 54″ in / 136 cm
    Overall Height – at Minimum Tiller Height 46″ in /117 cm
    Legroom – Floorboard Length x Width 13″ in / 132 cm
    Deck Height – Floorboard to Floor 9.4″ in /24 cm
    Ground Clearance 4″ in / 10 cm
    Turning Radius 53″ in / 135 cm
    Weight with Std. 330 lbs / 150 kgs
    Weight without Batteries 220 lbs / 100 kgs
    Seat Type Captain Seat
    Seat – Width & Depth & Height 20″ in / 50 mm x 19″ in / 48 cm x

    30″ in / 75 cm

    Seat – Cushion Thickness 6″ in /15cm
    Seat Height – Cushion to Deck 19.7″ in /50 cm
    Seat Height – Cushion to Floor 29.5″ in /75 cm
    Tire Type Air Tire
    Rim Type Rear Aluminum
    Rim Type Front Aluminum
    OEM Spec Rear N/A
    Outside Diameter Rear 15″ in / 38 cm x 6.3″ in / 16 cm
    Tire Width Rear 6.3″ in / 16 cm
    OEM Spec Front N/A
    Outside Diameter Front 13″ in / 33 cm x 4.5″ in / 11.5 cm
    Tire Width Front 4.5″ in / 11.5 cm
    Battery Type & Power 12V 75Ah x 2pcs
    Brake System Electromagnetic
    Climbing Angle – Maximum Recommended 12 degree
    Charger Type 8 Amp, Off Board120/240 Volt,50/60Hz
    Charging Time 8-10hrs
    Controller S-DRIVE 200 Amp
    *Driving Range 28 miles / 45 km
    Load Capacity 350 lbs / 160 kgs
    Motor & Drive Location 900 watts
    *Speed – Maximum 11.5 mph / 18.5 kph
    Colors Midnight Black
    Tiller Type D Type Handle
    Throttle Control Type Pot Meter
    Anti-Tipper Wheels-Rear Yes
