Chair includes Quantum 4 Front Power Base, Group 34 AGM Cell Interceptor Batteries, Flat Free Drive Tires and Casters, Q-logic Joystick Controller, Swing Away Joystick Bracket, Q-logic Power Motors, Q-Logic Control Module, Electronic Harnesses, Tru Balance Power Tilt and Recline Seating System, Seat Pan-Armrests Seating Assembly, Seat Belt, Power Seating Function Module, 10" Comfort Plus Headrest Pad with Mounting Bracket, Power Center Mount Articulating Foot Platform, Off Board Charging System

The Virtual ATP Consultation will show up in your shopping cart at no charge during checkout. Once the power wheelchair is purchased, you will receive an email link to schedule your FREE Virtual ATP Consultation before the chair is built and shipped to ensure compatibility, sizing and product knowledge. After the completion of the Virtual ATP Consultation, the product will go into production and soon be shipped!!

Quantum Rehab 4Front
Package Includes: Power Tilt, Power Recline, Power Articulating Foot Platform

Description

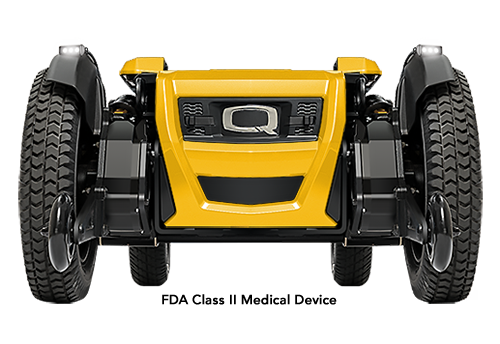

4Front® 2 Power Base

The 4Front^® 2 is the next generation of group 3, front-wheel drive, power chairs! New Smart Traction Control (STC), along with Smooth Ride Suspension (SRS), provide stability for smooth obstacle transitions and unmatched driving performance. Additional new features include 4-pole motors and redesigned caster arms for improved durability and aesthetics and reduced weight.

The 4Front® is a quiet, more responsive front-wheel drive power chair that features automotive-grade suspension with unprecedented comfort and ride quality. The 4Front®'s CASE (Caster Angle Sensor Encoder) technology and SRS (Smooth Ride Suspension) provide stability for smooth obstacle transitions and unmatched driving performance. The 4Front® features standard speeds of up to 6 mph in the lowered position, and speeds up to 3.2 mph while elevated at 10" with our optional safe seat elevation. Standard LED fender lights allow you to see and be seen.

4Front® 2 Features

4-pole motors
NEW Smart Traction Control (STC)
Superior, SRS (Smooth Ride Suspension)
Unmatched driving performance and ride quality
Advanced stability for smooth obstacle transitions
Redesigned caster arms for improved durability and aesthetics and reduced weight
Q-Logic 3e controller
Increased speeds up to 6.25 mph
LED front and rear fender lights
Quiet ride technology
Optional 10” of power adjustable safe seat elevation at speeds of up to 3.5 mph
Optional NEW backup camera

4Front® 2 Compatible Seating

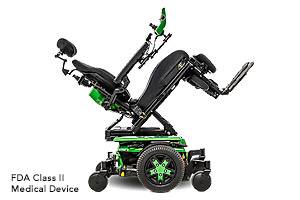

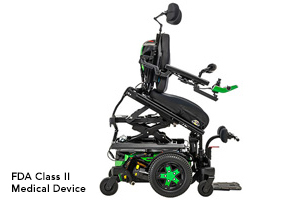

TRU Balance® 4 Power Positioning Systems

TRU Balance®️ 4 Power Positioning Systems is now available with more power seat configurations and provides a choice of 10, 20, or 30 degrees of power anterior tilt. Other features include up to eight customizable memory seating positions and an articulating foot platform that lowers to assist with transfers. TRU Balance 4 is available on the Edge 3 Stretto®️, Edge®️ 3, and 4Front®️ 2 power chairs.

TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Optional 12" iLevel® power adjustable seat height is available.

Contoured Seating

Contoured seating is the standard seating option on Quantum Power Chairs. Contoured seating features a black vinyl Captain's seat with options consisting of a high back or medium back, solid seat pan, limited recline, and depth adjustability. It is selected when special positioning is not required.

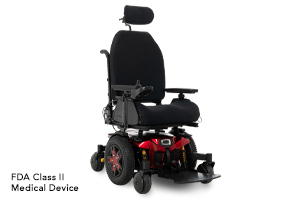

TRU-Balance® Flex Seating

TRU-Balance® Flex Seating is the no-charge static seat option available on the Edge 3, Q6 Edge® 2.0, and the Rival® power chairs.

4Front® 2 Compatible Electronics

The Q-Logic NES is the latest generation of non-expandable power wheelchair electronics. It is user-friendly, customizable and offers up to 2-actuator functions

Q-Logic 3 Advanced Drive Control System

The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence.

4Front® 2 SRS Suspension

There's Only One...SRS

SRS (Smooth Ride Suspension) is a superior power chair suspension developed after two years of research and consumer feedback.

SRS consists of four coil-over, gas-charged shocks that provide an ultra-smooth and quiet ride. The geometry in which the shocks are built into the base of the power chair allows for independent caster and wheel travel.

With unprecedented comfort and ride quality, SRS delivers exceptional driving performance over multiple terrains. Additionally, SRS adds stability to optional safe seat elevation on the 4Front® 2 Power Wheelchair.

When you want a smooth, comfortable ride, unmatched performance and advanced stability, there’s only one choice: SRS.

4Front® 2 Colors

4Front® 2 Specifications

Model	4Front® 2
Drive Configuration	Front-wheel drive
Drive Wheels	Standard: 14" flat free Optional: 14" knobby/pneumatic
Caster Wheels	Rear: 9" flat free
Anti-Tip Wheels	4" Flat Free
Maximum Speed⁴	Up to 6.25 mph Up to 3.5 mph when elevated
Ground Clearance	3.15" at battery tray
Turning Radius⁵	25.9"
Overall Length¹¹	39.9" without front riggings
Base Width	24"
Seating Sizes	TRU-Balance® 3 Static Seat: W: 12-22" D: 12-22" Power Tilt: W: 12-22" D: 12-22" Power Lift & Tilt: W: 12-22" D: 12-22" TRU- Balance® Flex Width: 15-22" Depth: 15-20"
Seat-to-Floor Heights	TRU-Balance® 3 Static Seat: 15.2-17.25" (not available with Synergy®) Power Tilt: 17.5-19.5" Power Lift & Tilt: 17.75-19.75" TRU- Balance® Flex 16.5-18.5"
Battery Size⁶	Group 24 or Group 34
Battery Weight¹⁴	Group 24: 51.5 lbs. Group 34: 44.8 lbs.
Available Electronics¹²	120A Q-Logic 3e (standard) 120A Q-Logic 3 (optional) 75A Q-Logic NES
Battery Charger	8A Off-board
Motor Packages	4-pole, front-wheel drive
Weight Capacity⁷	300 lbs.
Base Weight	130 lbs.
Medicare Code Coverage	Group 3: Standard (K0848/K0849) Single Power: (K0856/K0857) Multiple Power: (K0861)

Notes:
¹ Standard
² Optional
³ Requires HD Suspension
⁴ Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
⁵ Without front riggings
⁶ Battery capacity may change when adding power positioning systems.
⁷ Weight capacity is dictated by the selection of seating.
⁸ All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
⁹ 250 lbs. weight capacity with TRU-Balance® Systems.
¹⁰ Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
¹¹ Requires Group 34 batteries
¹² All Quantum Rehab® units can be ordered with specialty controls
¹³ Required with high-speed motors
¹⁴ Battery weight may vary +/- 3 lbs. based on manufacturer.
¹⁵ Weight capacity is reduced to 400 lbs. with the 10" Lift.
¹⁶ Seat-to-floor heights are measured with the unit unloaded.
¹⁸ Without foot riggings.

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Videos
Videos Hide Videos Show Videos
- Clinicians Review the 4Front™ Front-Wheel Drive Power Chair

  Clinicians and therapists offer feedback on Quantum’s front-wh...
- The 4Front™ Front-Wheel Drive Power Chair

  The 4Front™ is a quiet, more responsive front-wheel drive powe...
Warranty Information
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Quantum will repair or replace at our
option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Structural frame components, including:
- Main frame • Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
Electronic components, including:
- Charger assembly
- Controller
- Joystick
Main frame assemblies, including:
- Metal seat framing
Other components, including:
- Electrical harnesses
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Quantum will repair or replace at our option to the
original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Motor/gearbox assembly • Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Accessories
- Anti-tip forks
- Front riggings
- Caster forks
- Brakes (electronic function ONLY)
- Front rigging mounting brackets
- Caster beam
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Quantum will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Quantum to be defective in material and/or workmanship:
- Bearings and bushings
BATTERIES
The batteries are covered by a twelve (12) month (1 year) warranty from the original manufacturer.
NOTE: Gradual deterioration in performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Quantum effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS plastic shrouds
- Brake pads
- Motor brushes
- Tires and tubes
- Upholstery and seating
- Fuses/bulbs
- Circumstances beyond the control of Quantum
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Quantum
- Repairs and/or modifications made to any part without specific consent from Quantum
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use or use other than normal
- Improper operation, maintenance, or storage
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Quantum without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser.
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Quantum product can result in personal injury or product damage and will void Quantum’s product warranty.
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all other implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
