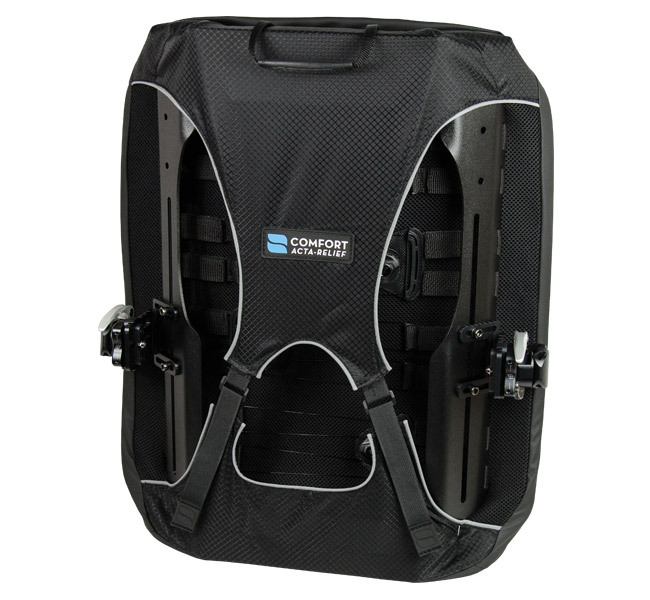

Acta-Relief

Product Features

• Features flexible, adjustable straps that allow this product to offset the center of pressure and better remove pressure points from the spine.
• This allows for a more aggressive molding to each individual patient's natural anatomy to support many seating positions ranging from upright seating to a severely rotated back.
• Equipped with an oversized aluminum shell cut-out to allow deeper immersion into the back.
• Thick Visco surface layer adds extra comfort and support by contouring to the user's body.
• Patent Pending
• Designed to effortlessly adjust, the Boa^® closure system brings comfort and support to the lower and upper thoracic regions.
• With the Boa^® reel and cable system, equal and stable pressure distribution is accomplished in an “off the shelf” back design.
• The open back frame design gives the ability to off-load the pressure typically seen on spinal deformities through the back frame opening.
• BodiLink™ Head Support (E0955) and Hardware (E1028) are optional and available.
• Available head support attaches through the use of a bracket giving the necessary clearances to accommodate more aggressive deformities.
• Lateral trunk supports (E0956) are optional and available.

          THE BOA ADVANTAGE

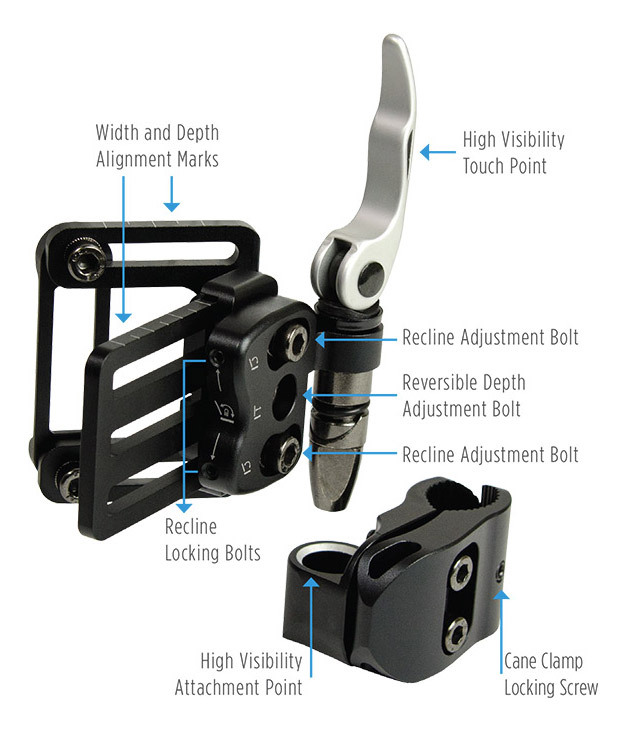

COMPASS 4 HARDWARE

• Fully adjustable for height, depth, and angle of recline.
• Requires only 1.5" of space on each cane for mounting purposes.
• All adjustments can be made while the user is seated in the wheelchair, eliminating the need for multiple transfers during the fitting process.
• Quick-release feature allows backrest to be removed vertically within seconds.
• Hardware may be installed within minutes and fits 3/4", 7/8", and 1" tubing.
• Positive locking feature for angle rotation.

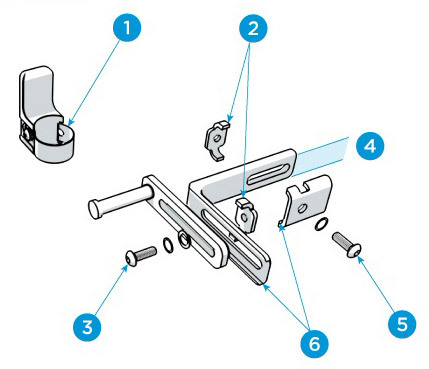

4 POINT

• 1. Cane mount fits 5 different cane diameters. Shorter strap that comes standard fits 3/4”, 7/8” & 1” while longer strap provided (not pictured) fits 1 1/8” & 1 1/4”.
• 2. Slot lock nut system prevents unwanted rotation.
• 3. Single design allows for easy adjustment with minimal fasteners.
• 4. Single slot design uses very little space, allowing other hardware to mount.
• 5. Minimal fasteners, but strong design.
• 6. Track systems prevent rotation, allowing features to nest together for additional stability.
• 7. Combination of aluminum and steel for ultralight hardware.
