Comfort Company Lateral Trunk Supports

(No reviews yet) Write a Review

SKU: CC-LTS

Comfort Company Lateral Trunk Supports

(No reviews yet) Write a Review

SKU: CC-LTS

Description
BodiLink Lateral trunk supports and pads are designed with the body's shape in mind and rounded edges ensure comfort

Features

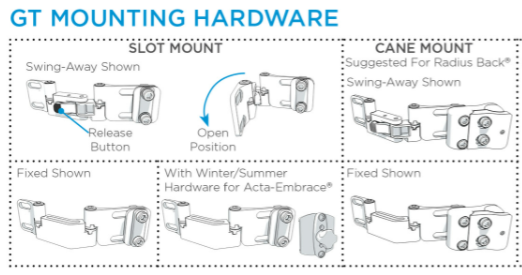

- HARDWARE: The GT2 series provides the industry best combination of adjustment capabilites and strength with a modular link system with spring-loaded gear tooth joints

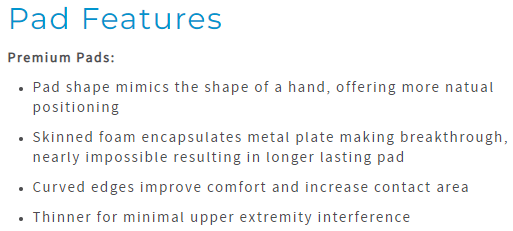

- Pads:Anatomically designed pad offers more natural positioning and greater surface contact Molded foam used to prevent breakdown reducing patient risk
- Curved edges improve comfort and increase contact area
- Thinner for minimal upper extremity interference
- Available in Comfort-Tek or Stretch-Air
Comfort Company

Comfort Company manufactures seating and postural support systems designed for people with a wide range of rehabilitation needs. We are committed to providing our customers with quality products designed for comfort, durability, and ease of use for pediatric, geriatric, or bariatric users. Our vision is to lead in the development, manufacturing, and delivery of the most innovative seating & postural solutions which provide the highest level of comfort, functionality, and quality of life.
Specs
- Thoracic pad options: 3" x 5", 4"x 6", 5"x 7"

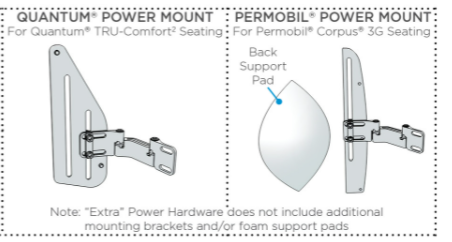

- BodiLink Thoracic hardware options: Fixed or Swing away

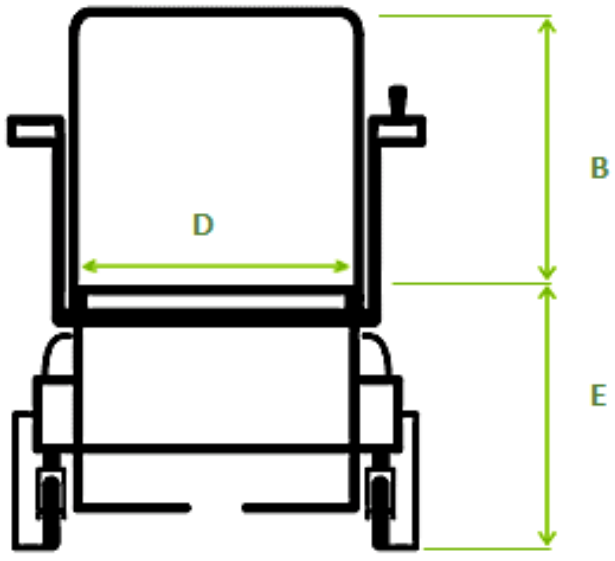

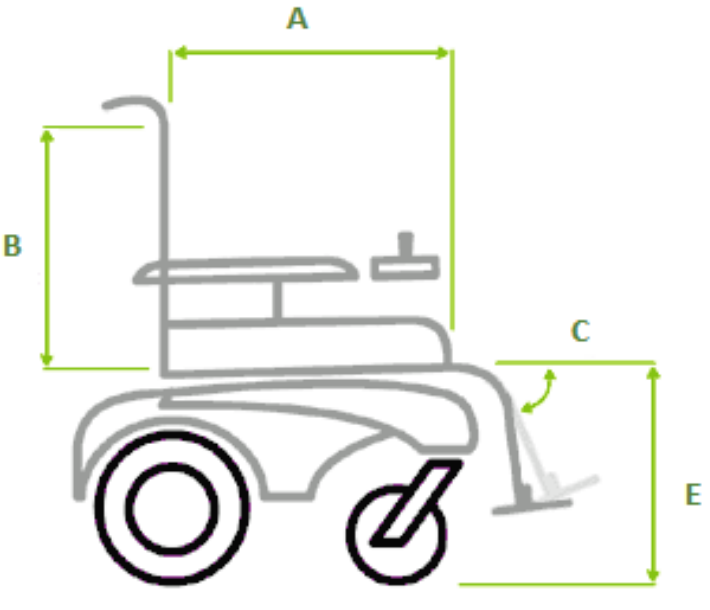

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration.

C-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

D-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

E-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never footpropelled by the user - so excluding the additional two-inch footrest height for propelling is very rare.
Warranty Information

Comfort Company Warranty Information
This product is covered by the Comfort Company Lifetime Guarantee.
If a manufacturing defect should occur, the product will be replaced at no cost to the buyer. Register your product at www.comfortcompany. com/registration to activate Lifetime Guarantee.
If manufacturing defects should occur, discontinue use immediately.
Wear from regular use is not considered a manufacturing defect. Replacement parts are available by contacting Customer Service or your supplier, distributor, or retailer.
Any alterations made to the product or defects caused by irregular use voids the warranty.
Warranty claims should be filed by the original purchaser.
End-users will need to contact the DME Supplier, Distributor or Retailer from whom the product was purchased. In the event the original dealer is not available, any authorized Comfort Company DME supplier, distributor or retailer will provide assistance.
DME suppliers, distributors or retailers with warranty issues will need to contact Customer Service by phone or email and provide original purchase order number, sales order number, or invoice number whenever possible. A Return Merchandise Authorization (RMA) will be issued by Customer Service so a warranty replacement order or quote can be processed.
If you would like to contact us with your comments or concerns, please visit our website www.comfortcompany.com or refer to the "Contact Information" section of this manual.
