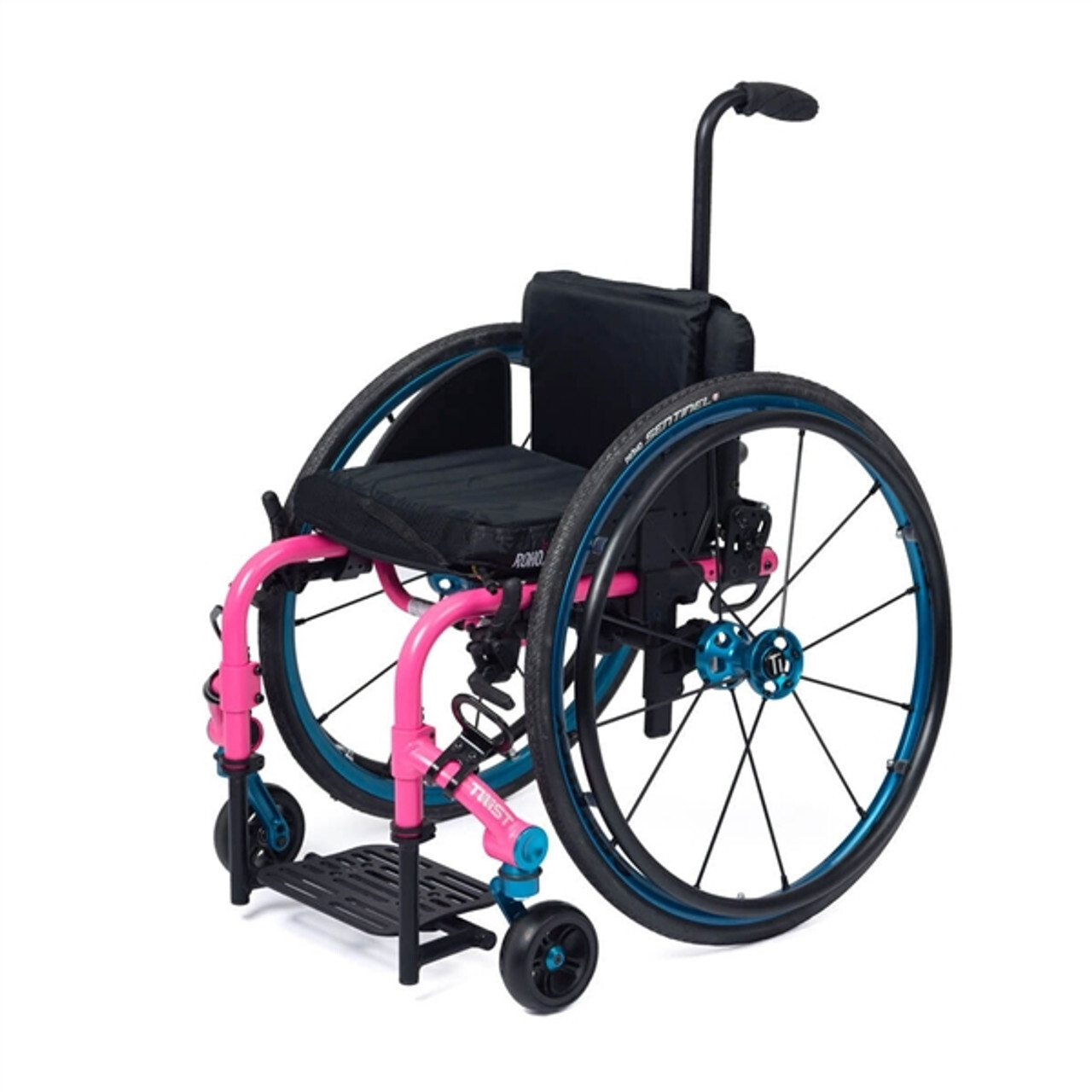

TiLite Twist

(No reviews yet) Write a Review

SKU: TWFS2

TiLite Twist

(No reviews yet) Write a Review

SKU: TWFS2

Description
Designed from the ground up for kiddos, the TWIST encourages exploration, independence, and, yes, playfulness. There are no parts or growth kits to buy. Instead,

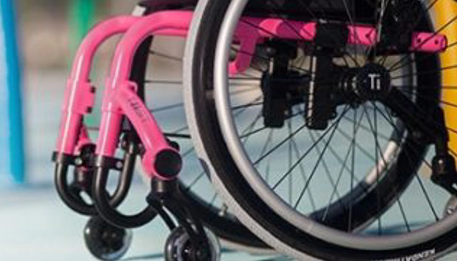

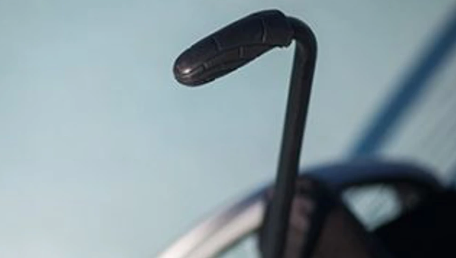

Growth. Built In. No growth kits required! The TWIST is ready to grow straight out of the box. High-Mount Footplate System that maximizes Seat To Footrest Height (STFH) Center Mount Anti-Tip with Single Swivel Caster allows for skills acquisition without compromising safety. The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points on today's wheelchairs by reducing the number of holes in the frame. Adjustable Camber Mount incorporates TiLites Tru-Fit system with up to 3.5? of rear seat height adjustment. Patented Speedloader Adjustable Front Caster Housing quickly and accurately adjusts fork angle in 1° increments. Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels. TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

Features
- Rigid Frame
- Mono-Tube Edge
- Growable
- Full Adjustability
- Parent Friendly
Tilite

TiLite provides you more options so you have less trade offs. TiLite manual wheelchairs are designed to create an optimal balance between lightweight, durable, and individualized configuration.
Specs
- Rigid Frame
- Aluminum
- 12 lb. transport weight
- Seat Width 8" to 15" (2" built-in Seat Width Adj.)
- Seat Depth 8" to 16" (3" built-in Seat Depth Adj.)
- Front Seat to Floor Height 13" - 21.5" (up to 2.25" of built-in Front Seat Height Adj.)
- Rear Seat to Floor Height 12" - 19.5" (up to 3.5" of built-in Rear Seat Height Adj.)
- Weight Limit: Standard- 265 lbs.
Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
Warranty Information
A. LIFETIME
TiLite warrants the wheelchair frame (including the cross-braces, if any) against defects in materials and workmanship for life, so long as the original purchaser uses the wheelchair. The expected life of the frame is five years.
B. ONE YEAR
Subject to the Limitations and Exclusions below, TiLite warrants all TiLite–made wheelchair components, including the Tension Adjustable by Straps Backrest Upholstery, against defects in materials and workmanship for one year from the date of purchase, provided normal use. A replacement product or part that has been installed in accordance with TiLite’s instructions assumes the remaining warranty of the original product or 90 days from the date of repair or replacement, whichever is longer.
C. LIMITATIONS AND EXCLUSIONS
1. This warranty excludes tires and tubes, upholstery (other than Tension Adjustable by Straps Backrest Upholstery), pads, push handle grips, stroller handle grips and any labor or shipping charges incurred in replacement part installation or repair of the product.
2. This warranty does not cover the following, as determined by TiLite in its sole discretion:
  1. damage arising from normal wear and tear or from other circumstances beyond TiLite’s control; or
  2. damage to Tension Adjustable by Straps Back Upholstery due to punctures, tears or burns; or
  3. TiLite Designs Unlimited frames and frame components, unless TiLite determines that the frame or frame component was defectively manufactured; or
  4. damage caused by any modifications made to the wheelchair without TiLite’s express written consent, including, without limitation, modifications through the use of unauthorized parts or attachments.
3. This warranty is VOID if TiLite, in its sole discretion, determines that:
  1. the original TiLite serial number tag has been removed, altered or defaced; or
  2. the product has been subjected to negligence, accident, improper maintenance, storage or operation as required by the TiLite Owners Manual, commercial or institutional use, misuse or abuse, including, but not limited to, exceeding the maximum weight limit of the product or using the product with tie downs or locking, clamping or other restraint systems related to the use of a wheelchair in a motor vehicle; or
  3. the wheelchair has been damaged by improper repairs or repairs made without the express written consent of TiLite.
4. This warranty applies only to the original purchaser/user of the chair and is non-transferable.
5. TiLite’s policy is to honor warranties and to perform services only on products purchased from authorized TiLite Dealers in the USA or TiLite International Distributors. If you purchase a TiLite product from an unauthorized TiLite Dealer or International Distributor, or if you reside outside the USA and you purchase a TiLite product from anyone other than the authorized TiLite International Distributor for your country of residence, your warranty will not be valid.
D. OUR RESPONSIBILITY
TiLite’s sole obligation, and your exclusive remedy, under any warranty is to repair or replace, in our sole discretion, the covered components of the wheelchair.
E. FOR WARRANTY SERVICE
If your product requires warranty service, please contact an authorized TiLite Dealer in the USA or an authorized TiLite International Distributor. In the event of a defect in material or workmanship, the Dealer or Distributor must obtain a return authorization (RA) number from TiLite, and TiLite issues RA numbers only to authorized TiLite Dealers and Distributors. If you do not receive satisfactory service, please write to TiLite Customer Service at 2701 West Court Street, Pasco, WA 99301 or email customerservice@tilite.com. Do not return products to our factory without our prior consent. Returns must be shipped with freight pre-paid. TiLite recommends that you insure the product for its full replacement cost.
F. CONSUMER NOTICE
This warranty gives you specific legal rights, and you may have other legal rights that vary from state to state. The foregoing express warranty is exclusive and in lieu of all other warranties, whether written or oral, express or implied, including the implied warranties of merchantability and fitness for a particular purpose. The sole remedy for violations of any warranty whatsoever shall be limited to repair or replacement of the defective product pursuant to the terms contained herein. No warranty, express or implied, shall extend beyond the terms of the warranties provided above. TiLite shall not be liable for any direct, indirect, consequential or incidental damages whatsoever, and in no event shall damages for breach of any warranty exceed the original cost of the product. By registering your TiLite wheelchair, you will be deemed to agree with all provisions of this warranty. No person is authorized to alter or extend the foregoing express warranty or to waive any of the limitations or exclusions.
