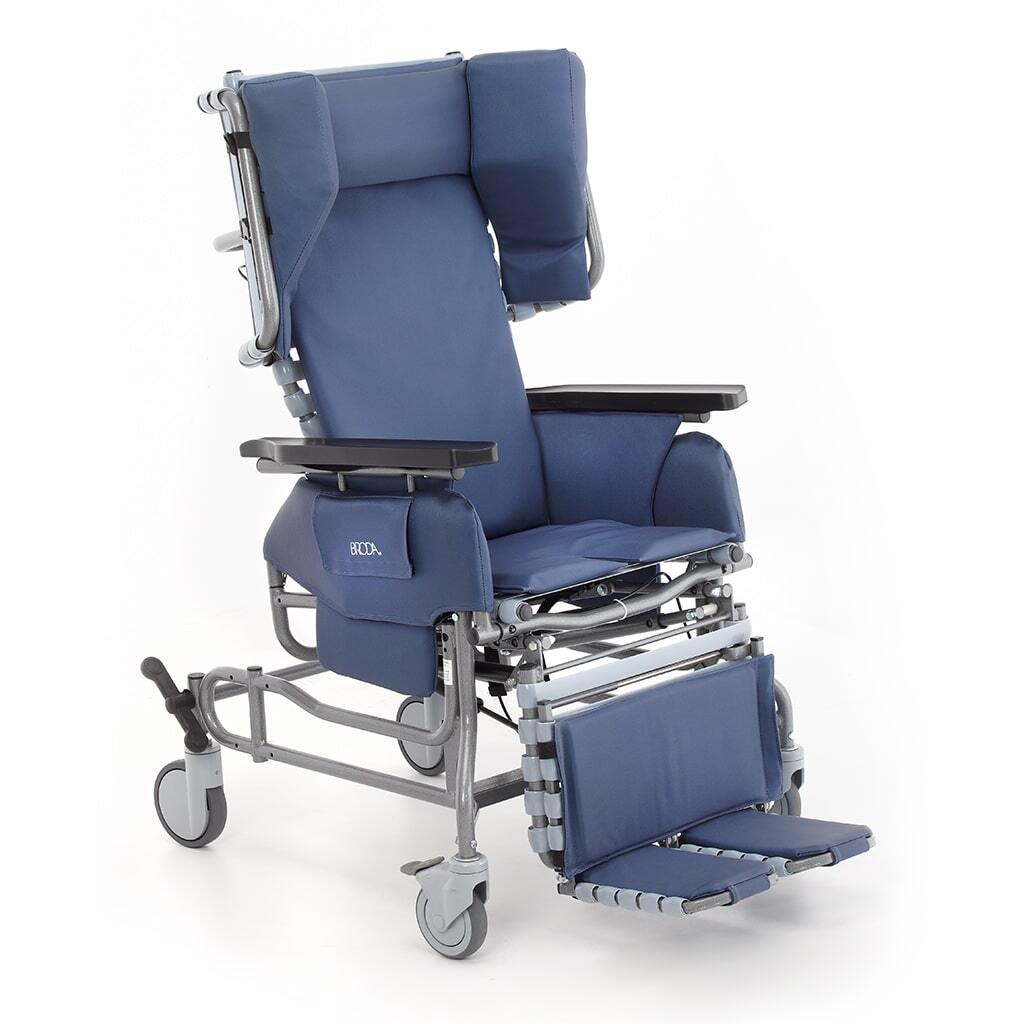

Elite Positioning Tilt Wheelchair

About the Elite Tilt Wheelchair
Find your ideal comfort zone with the Elite Tilt Wheelchair. The Elite Tilt provides secure seating and pressure relief through a gentle adjustable manual tilt-in-space wheelchair. The unique Broda Comfort Tension Seating® system eases seating discomfort and increases airflow for temperature control. Safe and easy to use, the Elite Tilt offers intuitive mobility with all-day comfort.
Features:
- One-of-a-kind Comfort Tension Seating® system provides pressure redistribution and airflow for supportive comfort
- Front-pivot seat tilt enhances line of sight for improved social engagement
- Delivers safe and comfortable tilt, without the use of restraint
- The 16-gauge, powder-coated, tubular steel frame is durable to outlast any other wheelchair
Wheelchair User Benefits
- Improves posture through safe and comfortable positioning without the use of restraints
- Helps maintain the user’s line of vision while tilted for socializing and enhanced quality of life
- Provides pressure redistribution and airflow for unparalleled comfort and support
- Provides long-lasting, durable care
Caregiver Benefits
- Lowers risk of caregiver injury with a reduced number of lifts and transfers
- Decreases physical strain on the caregiver when positioning the user
- Makes it easy to maneuver the wheelchair user around their environment
- Provides endless configurations and adaptations for any user
- Makes disinfection quick and easy
Tilt Angle Up to 40°
Recline Angle No Recline
Weight Capacity Up to 350 lbs. (159 kg)
Seat Widths 16" (41 cm), 18" (46 cm), 20" (51 cm), 22" (56 cm), 24" (61 cm), 26" (66 cm), 28" (72 cm)
Seat Depths 15.5 (40 cm), 17" (44 cm), 18.5" (47 cm), 20" (51 cm), 22" (56 cm)
Seat Surface Heights 19.5" (50 cm), 20.5" (53 cm), 22" (56 cm), 23.5" (60 cm)
Back Heights 32" (82 cm), 33.5" (86 cm), 35" (89 cm)
Wheels Front Total Lock Casters: 5" (13 cm), Mid Mounted Mag Wheels: 14" (36 cm), Rear Mounted Mag Wheels: 14", 20" (36 cm, 51 cm), Rear Multi-Directional Locking Casters: 6" (16 cm)
Frame Material 16-gauge powder-coated tubular steel frame
Special Features Mid-Mount Mag Wheel
Adjustability Removable lateral shoulder supports, Adjustable Elevating Leg Support, Height-Adjustable Arm Supports
Funding ADP Funded (Ontario, CA)
Patient Mobility Caregiver Propelled
-
Size Chart / measuring guide
A-Seat DepthMeasure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.B-Back HeightMeasured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.c-Rear Seat to FloorMeasurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.D-Hanger AngleDetermines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicularE-Seat WidthDetermined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.F-Wheel CamberAngle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.G-Front Seat to FloorMeasure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.H-Footrest WidthMeasure from the inside of each leg rest tubing the distance or desired distance between leg rests.I-Center of GravityMeasure from the front of the seat back post to the center of the rear axle.J-Seat to Footrest LengthMeasure from the edge of the seat upholstery to the top rear of the footrest.K-Backrest AngleMeasure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump -
