Broda Latitude Rehab Wheelchair

(No reviews yet) Write a Review

SKU: Bro-Lat

Broda Latitude Rehab Wheelchair

(No reviews yet) Write a Review

SKU: Bro-Lat

Description

Latitude Rehab Wheelchair

About the Latitude Rehab Wheelchair

Start your rehabilitation on the right track with the Latitude Rehab Wheelchair. The Latitude Rehab has all the comfort and adjustability that you expect from a Broda wheelchair. Ergonomically designed for easy self-propelling, the Latitude Rehab also offers an optional Dynamic Rocking feature, which simulates the soothing motion of your favorite rocking chair.

Features:

One-of-a-kind Comfort Tension Seating^® back support provides pressure redistribution and airflow for supportive comfort
Compatible with top-of-the-line cushions from the Motion Concepts Matrx^® Seating Series
Delivers safe and comfortable tilt, without the use of restraints
Optional Dynamic Rocking provides a calming sensation and physical activity
Front-pivot seat tilt enhances line of sight for improved social engagement
Height-adjustable arm supports and upper lateral supports give each user a custom fit
Durable 16-gauge, powder-coated, tubular steel frame is built to outlast any other wheelchair

Wheelchair User Benefits

Facilitates independent mobility through self-propulsion with the feet
Features optional Dynamic Rocking for additional activity and environmental enjoyment
Provides a custom fit with infinitely adjustable components
Improves, oxygenation, feeding, sitting tolerance, and overall comfort
Supports proper posture, relieving pain and reducing the need for restraints
Reduces the risk of pressure injuries

Caregiver Benefits

Compatible with top-of-the-line cushions from the Matrx Seating Series^® for the perfect fit
Simple, tension-assisted tilt reduces strain on the caregiver during positioning
Saves time by reducing the need for multiple transfers during the day
Makes it easy to change incontinence products without transferring patients from the wheelchair
Offers the option to easily adjust the wheelchair in the field
Optional Dynamic Rocking strengthens the user’s body and provides stimulating activity
No assembly required. All Matrx Seating Series^® components and accessories are shipped on-chair

Tilt Angle	Up to 33°
Recline Angle	No Recline
Weight Capacity	Up to 250 lbs. (113 kg)
Seat Widths	16" (41 cm), 18" (46 cm), 20" (51 cm), 22" (56 cm)
Seat Depths	15.5 (40 cm), 17" (44 cm), 18.5" (47 cm), 20" (51 cm)
Seat Surface Heights	Adjustable: 14" (36 cm), Adjustable: 15" (39 cm), Adjustable: 16" (41 cm), Adjustable: 17" (44 cm), Adjustable: 18" (46 cm), Adjustable: 19" (49 cm)
Back Heights	32" (82 cm), 33.5" (86 cm), 35" (89 cm)
Wheels	Front Aluminum Non-Locking Casters: 5" (13 cm), Front Mounted Mag Wheels: 20", 22" (51 cm, 56 cm), Front Total Lock Casters: 5" (13 cm), Rear Mounted Mag Wheels: 20", 22" (51 cm, 56 cm), Rear Total Lock Casters: 5" (13 cm)
Frame Material	16-gauge powder-coated tubular steel frame
Special Features	Customizable Seating, Dynamic Rocking, HCPCS, Solid Seat Pan
Adjustability	Adjustable seat surface height, Height-Adjustable Arm Supports
Funding	Medicare & Medicaid
Patient Mobility	Self Propelled
HCPCS	E1161

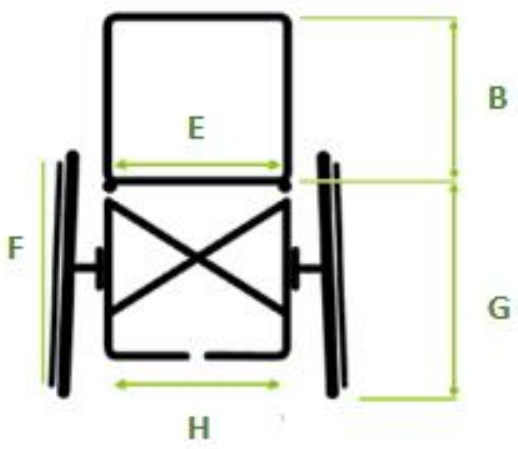

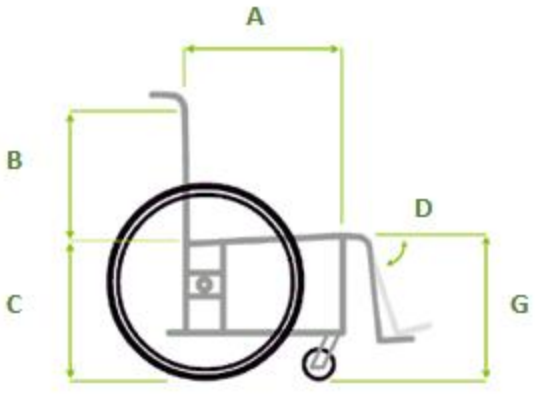

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

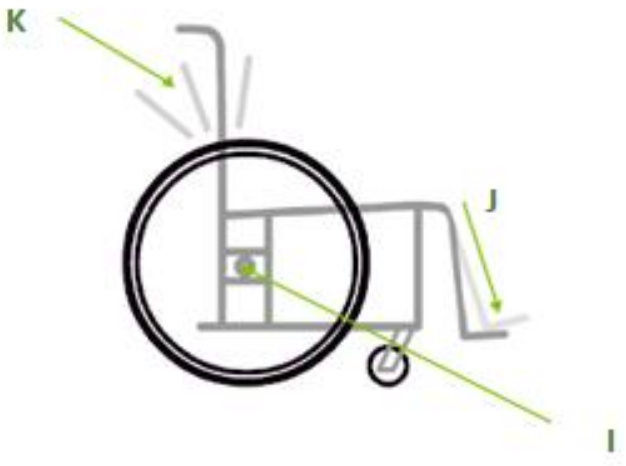

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
