Broda Synthesis Positioning Wheelchair

(No reviews yet) Write a Review

SKU: Broda-Syn

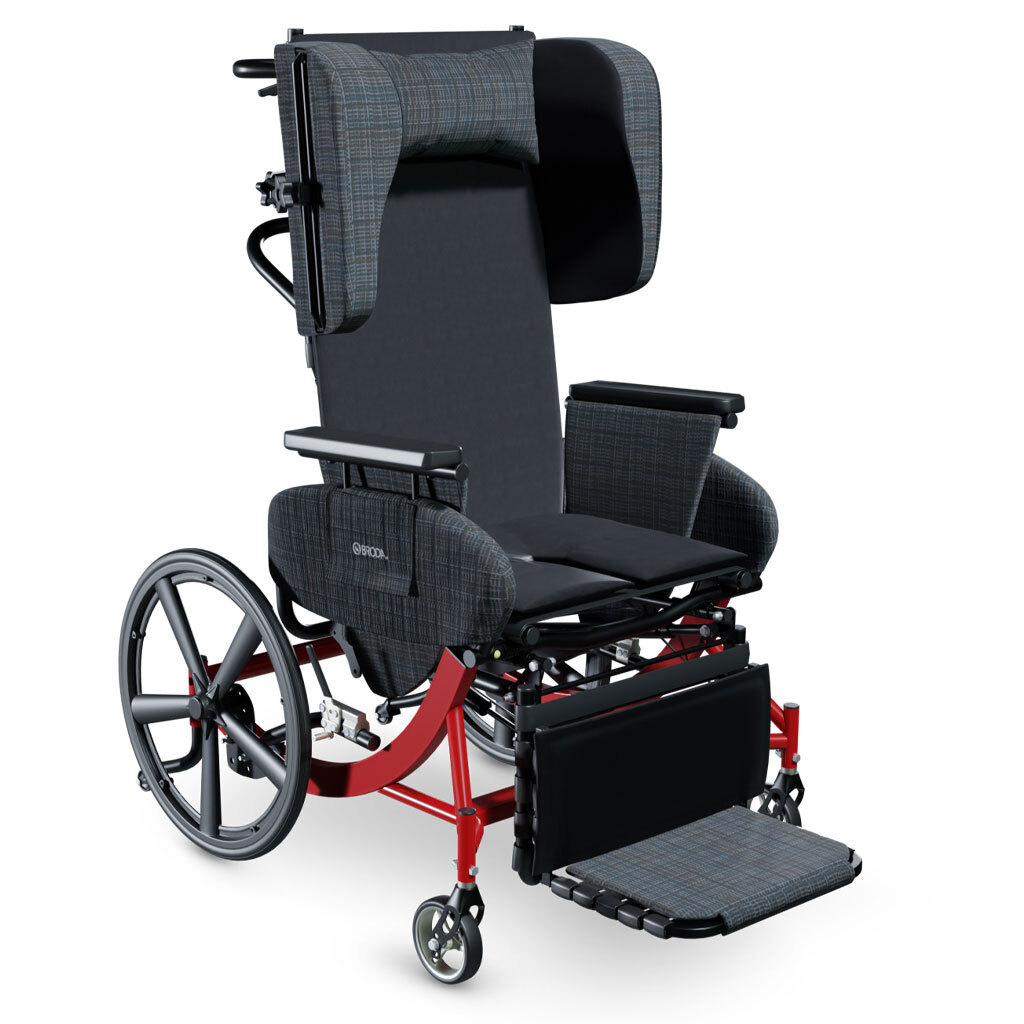

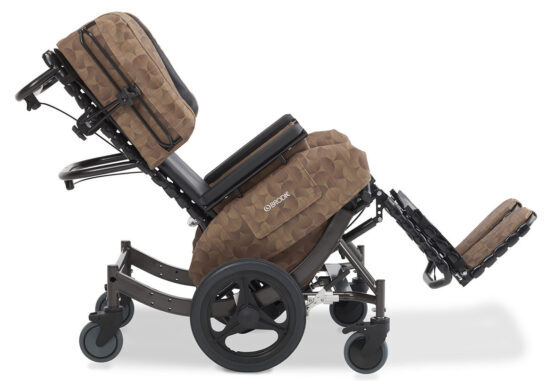

Broda Synthesis Positioning Wheelchair

(No reviews yet) Write a Review

SKU: Broda-Syn

Description

Synthesis Positioning Wheelchair

You will enjoy the fullest range of tilt and recline in the progressive design of the Synthesis Positioning Wheelchair. This manual tilt-in-space wheelchair is infinitely adjustable and includes the sought-after Trendelenburg Positioning feature. The Synthesis features our signature Comfort Tension Seating^® system, which provides comfort that lasts all day. The positioning capabilities help further redistribute pressure to prevent painful and costly pressure injuries. This wheelchair is perfect for long-term care and many other care settings.

Features:

One-of-a-kind Comfort Tension Seating^® system provides pressure redistribution and airflow for supportive comfort
Trendelenburg Position capability
Front-pivot seat tilt enhances socialization and engagement
Adjustable, removable lateral shoulder supports provide exceptional positioning
Height-adjustable arm supports give each user a custom fit
Adjustable length, articulating, and extending leg supports
Split, flip-down foot supports with angle-adjustable footplates
The 16-gauge, powder-coated, tubular steel frame will outlast traditional, lower quality wheelchairs

Wheelchair User Benefits

Improves seating tolerance and reduces the risk of pressure injuries
Delivers customizable upper lateral body support to prevent falling during transfers
Provides a custom fit with adjustable arm and leg supports
Improves posture, oxygenation, feeding, sitting tolerance, and overall comfort
Supports proper posture and reduces the need for restraints

Caregiver Benefits

Delivers safe and comfortable tilt and recline, without the use of restraints
Saves time by reducing the need for multiple transfers during the day
Cleans and disinfects easily with a non-porous, fluid-resistant surface
Makes it easy to change incontinence products without transferring patients from the wheelchair
Allows for safer, easier, one-person side transfers from the bed to the wheelchair

Specifications

Tilt Angle	Up to 40°
Recline Angle	Up to 90°
Weight Capacity	Up to 350 lbs. (159 kg)
Seat Widths	16" (41 cm), 18" (46 cm), 20" (51 cm), 22" (56 cm), 24" (61 cm), 26" (66 cm)
Seat Depths	17" (44 cm), 18.5" (47 cm), 20" (51 cm), 22" (56 cm)
Seat Surface Heights	19.5" (50 cm), 20.5" (53 cm), 22" (56 cm), 23.5" (60 cm)
Back Heights	32" (82 cm), 33.5" (86 cm), 35" (89 cm)
Wheels	Front Aluminum Non-Locking Casters: 5" (13 cm), Front Total Lock Casters: 5" (13 cm), Mid Mounted Mag Wheels: 14" (36 cm), Rear Mounted Mag Wheels: 14", 20" (36 cm, 51 cm)
Frame Material	16-gauge powder-coated tubular steel frame
Special Features	Mid-Mount Mag Wheel, Simple Lateral Transfers, Vehicle Crash Tested
Adjustability	Adjustable & Removable Lateral Shoulder Supports, Adjustable Elevating Leg Support, Height-Adjustable & Removable Arm Supports
Funding	ADP Funded (Ontario, CA)
WC19 Certified for Vehicle Transport	Yes, for personal use. Not suitable for multiple users.

Size Chart / measuring guide

A-
Seat Depth

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

B-
Back Height

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

c-
Rear Seat to Floor

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

D-
Hanger Angle

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular

E-
Seat Width

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

F-
Wheel Camber

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

G-
Front Seat to Floor

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

H-
Footrest Width

Measure from the inside of each leg rest tubing the distance or desired distance between leg rests.

I-
Center of Gravity

Measure from the front of the seat back post to the center of the rear axle.

J-
Seat to Footrest Length

Measure from the edge of the seat upholstery to the top rear of the footrest.

K-
Backrest Angle

Measure the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurement for every .5" of dump
Videos
Videos Hide Videos Show Videos
- Introducing the Synthesis Positioning Wheelchair

  The Synthesis Positioning Wheelchair builds upon Broda’s legac...
