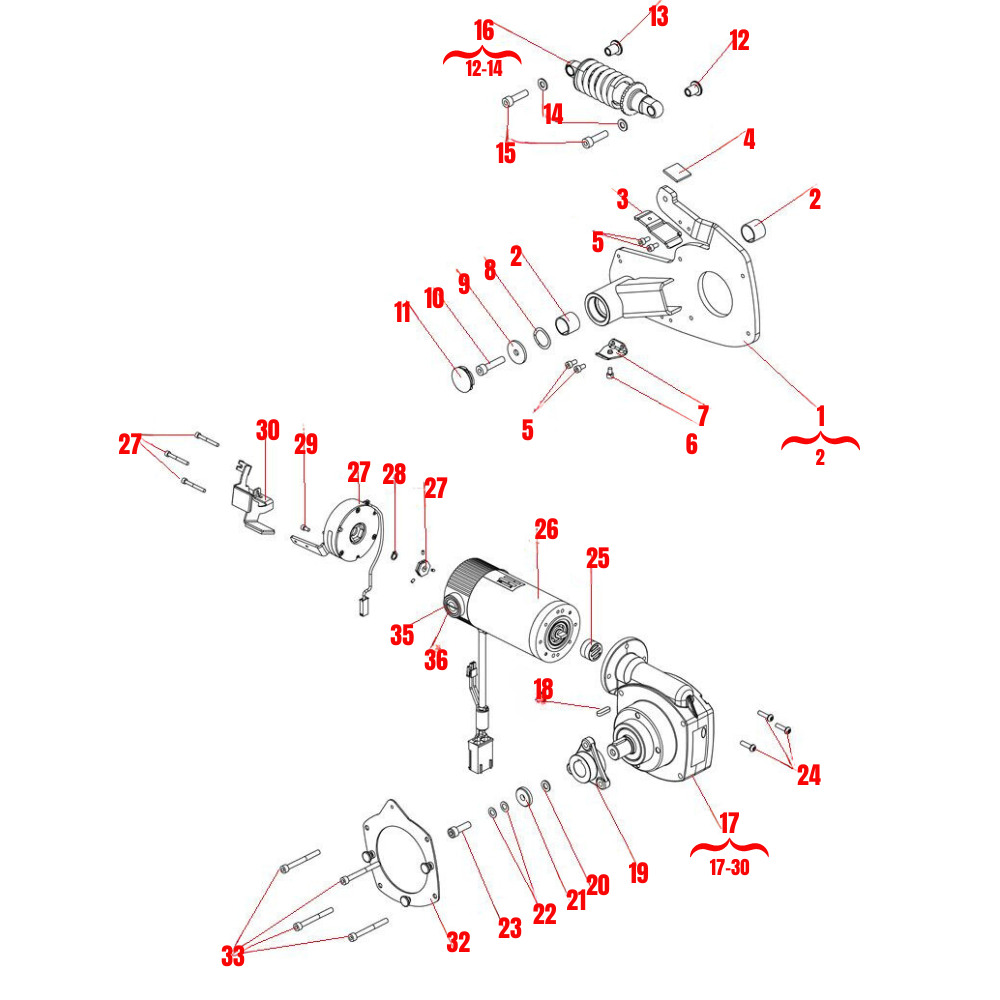

Drive Unit Right

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 15.1	Description BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-A	Part #: 601075-A	Replaces: 601075-99-0	Price Reg. Price: $14.00
Ref # 23.1	Description BOLT ISO 4762 M8x25-B	Part #: 612512-B	Replaces: 612512-99-0	Price Reg. Price: $14.00
Ref # 29.1	Description BOLT MC6S 4x 8 fzb-C	Part #: 600182-C	Replaces: 600182-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description BOLT MC6S 5x 8 fzb-B	Part #: 600188-B	Replaces: 600188-99-0	Price Reg. Price: $14.00
Ref # 33.1	Description BOLT MC6S 6x60 fzb-A	Part #: 601923-A	Replaces: 601923-99-0	Price Reg. Price: $14.00
Ref # 36.1	Description BRUSH CAP, M20x1 EACH, LINIX MOTORS-A	Part #: 1834364-A	Replaces: 1834364	Price Reg. Price: $14.00
Ref # 28.1	Description CIRCLIP SGA 8-A	Part #: 600503-A	Replaces: 600503-99-0	Price Reg. Price: $14.00
Ref # 18.1	Description KEY 6X6X22 DRIVE SHAFT-A	Part #: 600855-A	Replaces: 600855-99-0	Price Reg. Price: $14.00
Ref # 11.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-A	Part #: 301146-A	Replaces: 301146-00-0	Price Reg. Price: $14.00
Ref # 10.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-A	Part #: 602150-A	Replaces: 1830714	Price Reg. Price: $14.00
Ref # 5.1	Description SHCS MC6S 5x10 fzb ISO 4762-C	Part #: 600189-C	Replaces: 600189-99-0	Price Reg. Price: $14.00
Ref # 22.1	Description SPACER DB DIN988 8x14x0.5 *-A	Part #: 612531-A	Replaces: 612531-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description WASH 8.4x15x1.5 PA-A	Part #: 612902-A	Replaces: 612902-99-0	Price Reg. Price: $14.00
Ref # 21.1	Description WASH 8.4x23x5 HB 305 YELLOW-A	Part #: 612513-A	Replaces: 612513-99-0	Price Reg. Price: $14.00
Ref # 14.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-B	Part #: 600239-B	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 9.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-A	Part #: 316714-A	Replaces: 316714-99-0	Price Reg. Price: $14.00
Ref # 8.1	Description WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-A	Part #: 615405-A	Replaces: 615405-99-0	Price Reg. Price: $14.00
Ref # 35.1	Description CARBON BRUSH, MOTOR, EACH M300 M400 M300HD C350-A	Part #: 1830688-A	Replaces: 1830688	Price Reg. Price: $16.64
Ref # 1.1	Description SWING ARM, FRONT RIGHT F3	Part #: 324681	Replaces: 1831291	Price Reg. Price: $121.68
Ref # 16.1	Description SHOCK ABSORBER INCL HDW FRONT/REAR, EACH, F3-B	Part #: 1831183-B	Replaces: 1831183	Price Reg. Price: $150.44
Ref # 27.1	Description MAGNETIC WHEEL LOCK, F3 >4/2019-A	Part #: 1835032-A	Replaces: 1835032	Price Reg. Price: $280.80
Ref # 17.2	Description DRIVE UNIT RIGHT 4800 RPM 22V 350W F3	Part #: 336507	Replaces: 1837439	Price Reg. Price: $1,249.99 Sale: $799.99

Quick & Easy Checkout

Drive Unit Right

BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-A

BOLT ISO 4762 M8x25-B

BOLT MC6S 4x 8 fzb-C

BOLT MC6S 5x 8 fzb-B

BOLT MC6S 6x60 fzb-A

BRUSH CAP, M20x1 EACH, LINIX MOTORS-A

CIRCLIP SGA 8-A

KEY 6X6X22 DRIVE SHAFT-A

PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-A

SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-A

SHCS MC6S 5x10 fzb ISO 4762-C

SPACER DB DIN988 8x14x0.5 *-A

WASH 8.4x15x1.5 PA-A

WASH 8.4x23x5 HB 305 YELLOW-A

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-B

WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-A

WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-A

CARBON BRUSH, MOTOR, EACH M300 M400 M300HD C350-A

SWING ARM, FRONT RIGHT F3

SHOCK ABSORBER INCL HDW FRONT/REAR, EACH, F3-B

MAGNETIC WHEEL LOCK, F3 >4/2019-A

DRIVE UNIT RIGHT 4800 RPM 22V 350W F3
