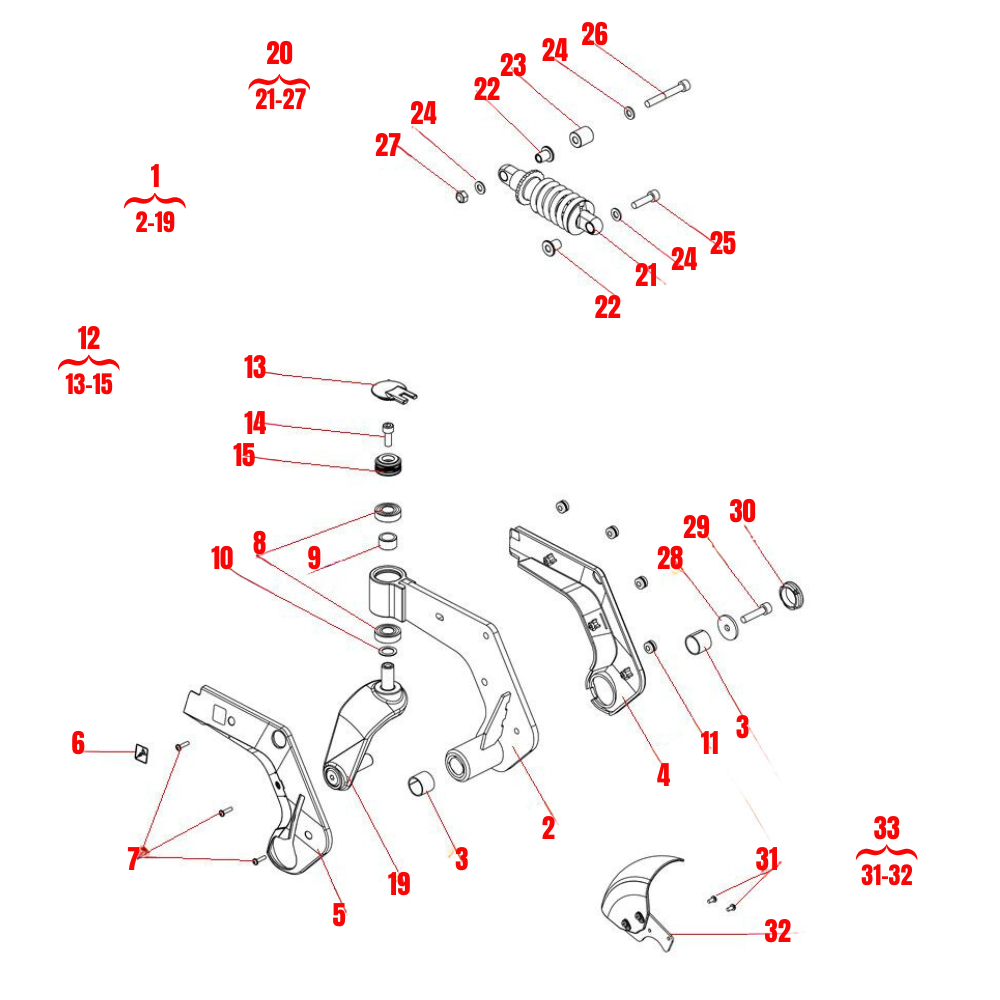

Suspension Rear Left

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 8.1	Description BALL BEARING, SWINGARM AND WHEELS, EACH-B	Part #: 600752-B	Replaces: 600752-99-0	Price Reg. Price: $14.00
Ref # 25.1	Description BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-B	Part #: 601075-B	Replaces: 601075-99-0	Price Reg. Price: $14.00
Ref # 31.1	Description BOLT K6S 4x 8 fzb-B	Part #: 601381-B	Replaces: 601381-99-0	Price Reg. Price: $14.00
Ref # 26.1	Description BOLT MC6S 8x 60 fzb	Part #: 600719	Replaces: 600719-99-0	Price Reg. Price: $14.00
Ref # 13.2	Description COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5	Part #: 330833	Replaces: 1832866	Price Reg. Price: $14.00
Ref # 11.2	Description GROMMET, BLACK SHROUDS, EACH, F3 F5 V.2-B	Part #: 335663-B	Replaces: 1835620	Price Reg. Price: $14.00
Ref # 27.1	Description NYLOCK NUT M8 ZINC PLATED-B	Part #: 600228-B	Replaces: 600228-99-0	Price Reg. Price: $14.00
Ref # 30.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-B	Part #: 301146-B	Replaces: 301146-00-0	Price Reg. Price: $14.00
Ref # 14.1	Description Screw ISO 4762 M8x20 Fe/Z LOCKING COAT DIN 267-28-C	Part #: 613901-C	Replaces: 613901-99-0	Price Reg. Price: $14.00
Ref # 29.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-B	Part #: 602150-B	Replaces: 1830714	Price Reg. Price: $14.00
Ref # 10.1	Description SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-B	Part #: 612383-B	Replaces: 1828317	Price Reg. Price: $14.00
Ref # 9.1	Description SPACER O16xO22x12.5 CASTERS AND SWINGARM	Part #: 318410	Replaces: 1831010	Price Reg. Price: $14.00
Ref # 23.2	Description SPACER, SHOCK ABSORBER 8.2/20 x 22mm, F3 F5	Part #: 323108	Replaces: 1831705	Price Reg. Price: $14.00
Ref # 7.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-A	Part #: 613078-A	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 24.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-G	Part #: 600239-G	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 28.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-B	Part #: 316714-B	Replaces: 316714-99-0	Price Reg. Price: $14.00
Ref # 5.1	Description COVER SWINGARM, REAR LEFT INSIDE, >4/2019, F3 F5	Part #: 1835479	Replaces: 1835479	Price Reg. Price: $18.00
Ref # 4.1	Description COVER SWINGARM, REAR LEFT OUTSIDE, >4/2019, F3 F5	Part #: 1835480	Replaces: 1835480	Price Reg. Price: $18.00
Ref # 12.1	Description FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD	Part #: 333233	Replaces: 1834999	Price Reg. Price: $21.00
Ref # 33.1	Description MUD GUARD COVER, LEFT F3 F5	Part #: 335591	Replaces: 1835540	Price Reg. Price: $77.00
Ref # 19.1	Description WHEELFORK, LEFT F3 F5 M3 M5 M1	Part #: 323064	Replaces: 1830755	Price Reg. Price: $118.00
Ref # 8.2	Description Anti-flutter v.3, adjustable	Part #: 339931	Replaces: NULL	Price Reg. Price: $141.54
Ref # 20.1	Description SHOCK ABSORBER INCL HDW FRONT/REAR, EACH, F3-C	Part #: 1831183-C	Replaces: 1831183	Price Reg. Price: $155.00
Ref # 20.1	Description SHOCK ABSORBER, INCL HDW F5 CHASSIS, EACH-A	Part #: 323763-A	Replaces: 1831183	Price Reg. Price: $155.00
Ref # 1.1	Description SWING ARM, REAR LEFT INCL FORK, F3 F5	Part #: 334907	Replaces: 1835483	Price Reg. Price: $270.00
