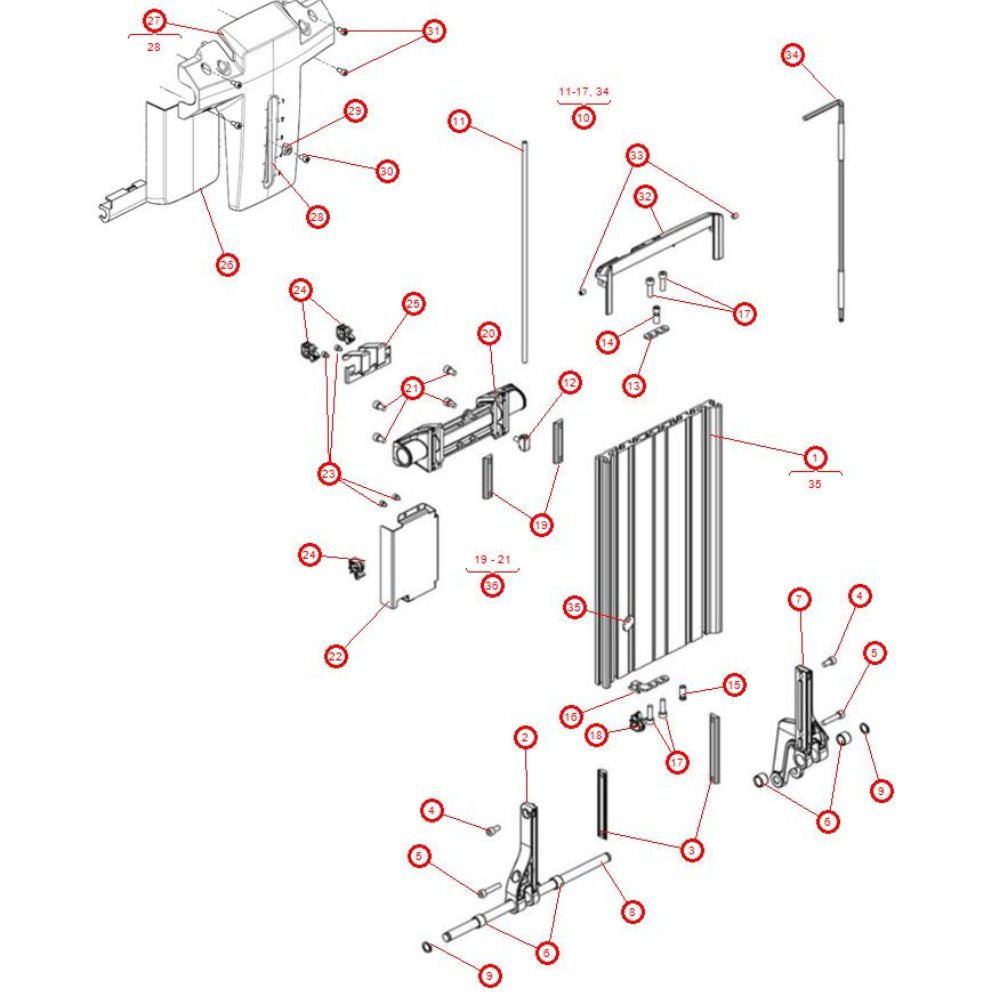

Backrest Hinge

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 23.1	Description BOLT MC6S 4x 5 fzb	Part #: 601282	Replaces: 601282-99-0	Price Reg. Price: $14.00
Ref # 30.1	Description BOLT MC6S 4x 8 fzb	Part #: 600182	Replaces: 600182-99-0	Price Reg. Price: $14.00
Ref # 31.1	Description BOLT MC6S 4x 8 fzb-A	Part #: 600182-A	Replaces: 600182-99-0	Price Reg. Price: $14.00
Ref # 4.1	Description BOLT MC6S 6x14 fzb-C	Part #: 600193-C	Replaces: 600193-99-0	Price Reg. Price: $14.00
Ref # 17.1	Description BOLT MC6S 6x20 fzb-C	Part #: 600194-C	Replaces: 600194-99-0	Price Reg. Price: $14.00
Ref # 5.1	Description BOLT MC6S 6x30 fzb	Part #: 600196	Replaces: 600196-99-0	Price Reg. Price: $14.00
Ref # 18.1	Description CABLE CLIP max=17x12mm K450 PSJr M3/400 C3G VS-A	Part #: 612953-A	Replaces: 612953-00-0	Price Reg. Price: $14.00
Ref # 24.1	Description CABLE CLIP max=17x12mm K450 PSJr M3/400 C3G VS-B	Part #: 612953-B	Replaces: 612953-00-0	Price Reg. Price: $14.00
Ref # 9.1	Description CIRCLIP EXTERNAL SGA d=12 DIN471	Part #: 601225	Replaces: 601225-99-0	Price Reg. Price: $14.00
Ref # 32.1	Description COVER BACKREST, TOP CORPUS 3G	Part #: 319409	Replaces: 1825582	Price Reg. Price: $14.00
Ref # 22.1	Description HOLDER JUNCTION BOX, HD, (C3G&CORPUS<5/19/16 ONLY	Part #: 1828904	Replaces: 1828904	Price Reg. Price: $14.00
Ref # 34.1	Description KEY TOOL RUBBERIZED 5mm CORPUS/3G	Part #: 319488	Replaces: 1826120	Price Reg. Price: $14.00
Ref # 19.1	Description NUT, UNITRACK 50mm, M6 CORPUS/3G	Part #: 319192	Replaces: 1825465	Price Reg. Price: $14.00
Ref # 29.1	Description PLASTIC KNOB, BACKREST ASSEMBLY, CORPUS/3G/HD	Part #: 319295	Replaces: 1826119	Price Reg. Price: $14.00
Ref # 33.1	Description SET SCREW M6x8 CORPUS/3G, M1	Part #: 613428	Replaces: 1825583	Price Reg. Price: $14.00
Ref # 21.2	Description SHCS M6x20, EACH	Part #: 615050	Replaces: 615050-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description SLIDE BEARING, CORPUS/3G/ HD BACKR HINGE,SEAT FRAME	Part #: 613758	Replaces: 1825542	Price Reg. Price: $14.00
Ref # 22.2	Description HOLDER JUNCTION BOX C3G & CORPUS>5/19/16 ONLY	Part #: 1832928	Replaces: 1832928	Price Reg. Price: $15.00
Ref # 8.1	Description SHAFT BACKR HINGE 308mm CORPUS 3G	Part #: 1825587	Replaces: 1825587	Price Reg. Price: $18.00
Ref # 3.1	Description NUT, UNITRACK 90mm, M6 CORPUS/3G/HD/VS-A	Part #: 319189-A	Replaces: 1825464	Price Reg. Price: $20.00
Ref # 27.2	Description COVER BACK CORPUS>7/10/17 CORPUS VS> 6/15/17, V.2	Part #: 330005	Replaces: 1832925	Price Reg. Price: $22.00
Ref # 26.1	Description COVER, LOWER BACK CORPUS/3G	Part #: 319283	Replaces: 1826117	Price Reg. Price: $22.00
Ref # 10.1	Description ARMREST HEIGHT ADJ. KIT, CORPUS/VS/3G	Part #: 319093	Replaces: 1825463	Price Reg. Price: $25.00
Ref # 2.2	Description HINGE, BACKREST, RIGHT CORPUS/C3G >05/19/16	Part #: 1832927	Replaces: 1832927	Price Reg. Price: $32.00
Ref # 1.1	Description PROFILE BACKR KIT, INCL BUSHING, CORPUS/3G	Part #: 321870	Replaces: 1828207	Price Reg. Price: $98.00
Ref # 36.1	Description ARMREST HINGE, CORPUS/VS >6/15/17	Part #: 1832926	Replaces: 1832926	Price Reg. Price: $103.00
Ref # 2.1	Description HINGE, BACKREST, RIGHT CORPUS 3G <05/19/16	Part #: 1825588	Replaces: 1825588	Price Reg. Price: $169.00
Ref # 7.1	Description SLEWING BRACK HINGE BACKR LEFT SIDE, CORPUS/3G	Part #: 318558	Replaces: 1825549	Price Reg. Price: $192.00
