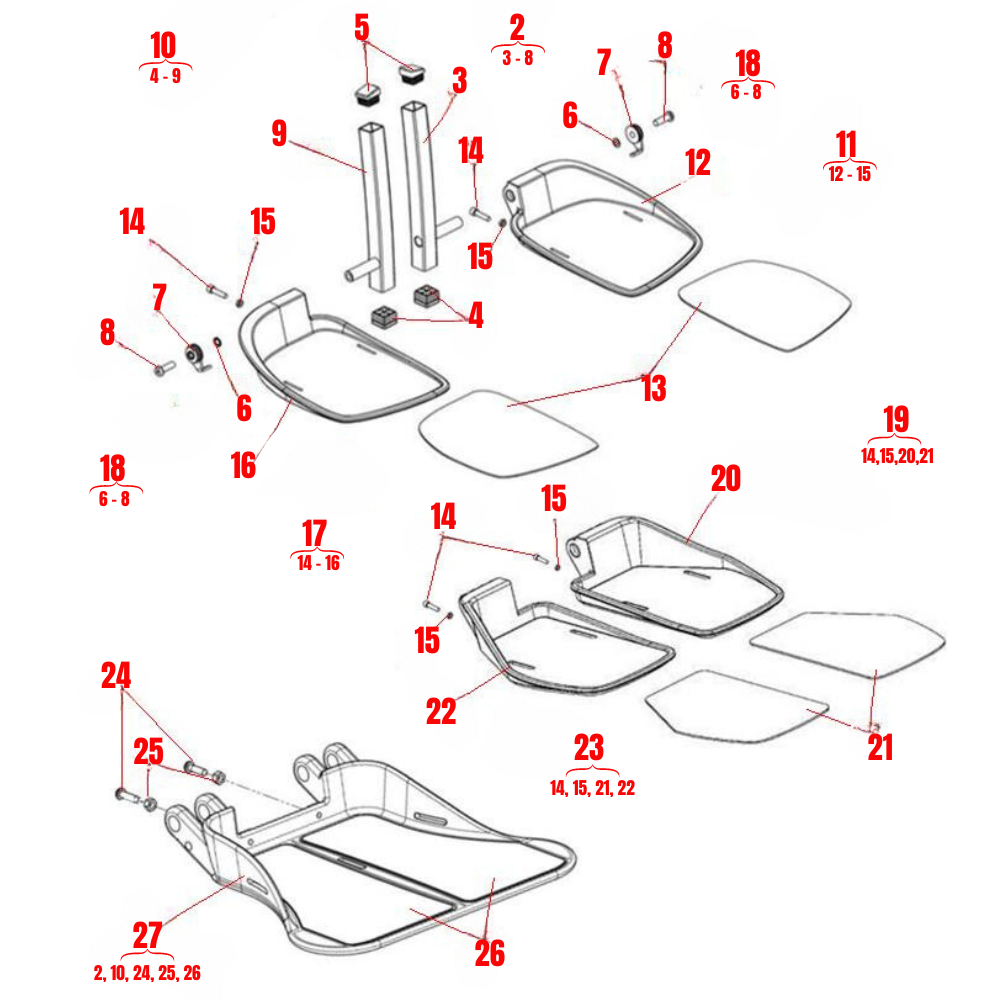

Footplate Assemblies

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 24.1	Description BOLT K6S 6x20 fzb-D	Part #: 601370-D	Replaces: 601370-99-0	Price Reg. Price: $14.00
Ref # 14.1	Description BOLT MC6S 6x25 fzb-F	Part #: 600195-F	Replaces: 600195-99-0	Price Reg. Price: $14.00
Ref # 15.1	Description Nut ISO 4035 M6 Fe/Zn-A	Part #: 612980-A	Replaces: 612980-99-0	Price Reg. Price: $14.00
Ref # 25.1	Description NUT M6M 6 fzb-E	Part #: 600232-E	Replaces: 600232-99-0	Price Reg. Price: $14.00
Ref # 4.1	Description PLASTIC PLUG, BOTTOM OF LEGR TUBE, CORPUS/3G	Part #: 1827968	Replaces: 1827968	Price Reg. Price: $14.00
Ref # 5.1	Description PLASTIC PLUG, TOP OF LEGR TUBE, CORPUS/3G	Part #: 1827967	Replaces: 1827967	Price Reg. Price: $14.00
Ref # 8.1	Description SCREW M8x25 10.9 LOCKING COAT, CORPUS/C3G HD VS-H	Part #: 613149-H	Replaces: 1828843	Price Reg. Price: $14.00
Ref # 6.1	Description WASHER, 8.4x13x0.8-A	Part #: 602127-A	Replaces: 602127-99-0	Price Reg. Price: $14.00
Ref # 2.1	Description BRACKET FOOTPLATE,LEGREST LEFT, CORPUS/3G	Part #: 1825377	Replaces: 1825377	Price Reg. Price: $23.00
Ref # 10.1	Description BRACKET FOOTPLATE,LEGREST RIGHT, CORPUS/3G	Part #: 1825378	Replaces: 1825378	Price Reg. Price: $23.00
Ref # 18.1	Description FRICTION GUIDE FOOTPL,CII CNTR MNT,HD3,CORPUS,M1std	Part #: 308371	Replaces: 308371-99-0	Price Reg. Price: $28.99
Ref # 19.1	Description FOOTPLATE, NARROW, LEFT CORPUS/3G/VS, PS, PSJR	Part #: 319634	Replaces: 1825607	Price Reg. Price: $49.99
Ref # 23.1	Description FOOTPLATE, NARROW, RIGHT CORPUS/3G/VS, PS, PSJR	Part #: 319635	Replaces: 1825608	Price Reg. Price: $49.99
Ref # 27.1	Description FOOTPLATE, 1PC, CORPUS 3G INCL. LEGREST TUBES	Part #: 322004	Replaces: 1830548	Price Reg. Price: $65.00
Ref # 11.1	Description FOOTPLATE, WIDE, LEFT ALL CORPUS, PS M1-A	Part #: 319175-A	Replaces: 1825379	Price Reg. Price: $79.99
Ref # 17.1	Description FOOTPLATE, WIDE, RIGHT ALL CORPUS, PS M1-A	Part #: 319176-A	Replaces: 1825380	Price Reg. Price: $79.99
Ref # 21.1	Description RUBBER PROTECT NARROW PAIR, CORPUS/3G	Part #: 1827426	Replaces: 1827426	Price Reg. Price: $84.00
Ref # 13.1	Description RUBBER PROTECT,WIDE LEFT&RIGHT, CORPUS/3G/HD-B	Part #: 1825381-B	Replaces: 1825381	Price Reg. Price: $96.00

Quick & Easy Checkout

Footplate Assemblies

BOLT K6S 6x20 fzb-D

BOLT MC6S 6x25 fzb-F

Nut ISO 4035 M6 Fe/Zn-A

NUT M6M 6 fzb-E

PLASTIC PLUG, BOTTOM OF LEGR TUBE, CORPUS/3G

PLASTIC PLUG, TOP OF LEGR TUBE, CORPUS/3G

SCREW M8x25 10.9 LOCKING COAT, CORPUS/C3G HD VS-H

WASHER, 8.4x13x0.8-A

BRACKET FOOTPLATE,LEGREST LEFT, CORPUS/3G

BRACKET FOOTPLATE,LEGREST RIGHT, CORPUS/3G

FRICTION GUIDE FOOTPL,CII CNTR MNT,HD3,CORPUS,M1std

FOOTPLATE, NARROW, LEFT CORPUS/3G/VS, PS, PSJR

FOOTPLATE, NARROW, RIGHT CORPUS/3G/VS, PS, PSJR

FOOTPLATE, 1PC, CORPUS 3G INCL. LEGREST TUBES

FOOTPLATE, WIDE, LEFT ALL CORPUS, PS M1-A

FOOTPLATE, WIDE, RIGHT ALL CORPUS, PS M1-A

RUBBER PROTECT NARROW PAIR, CORPUS/3G

RUBBER PROTECT,WIDE LEFT&RIGHT, CORPUS/3G/HD-B
