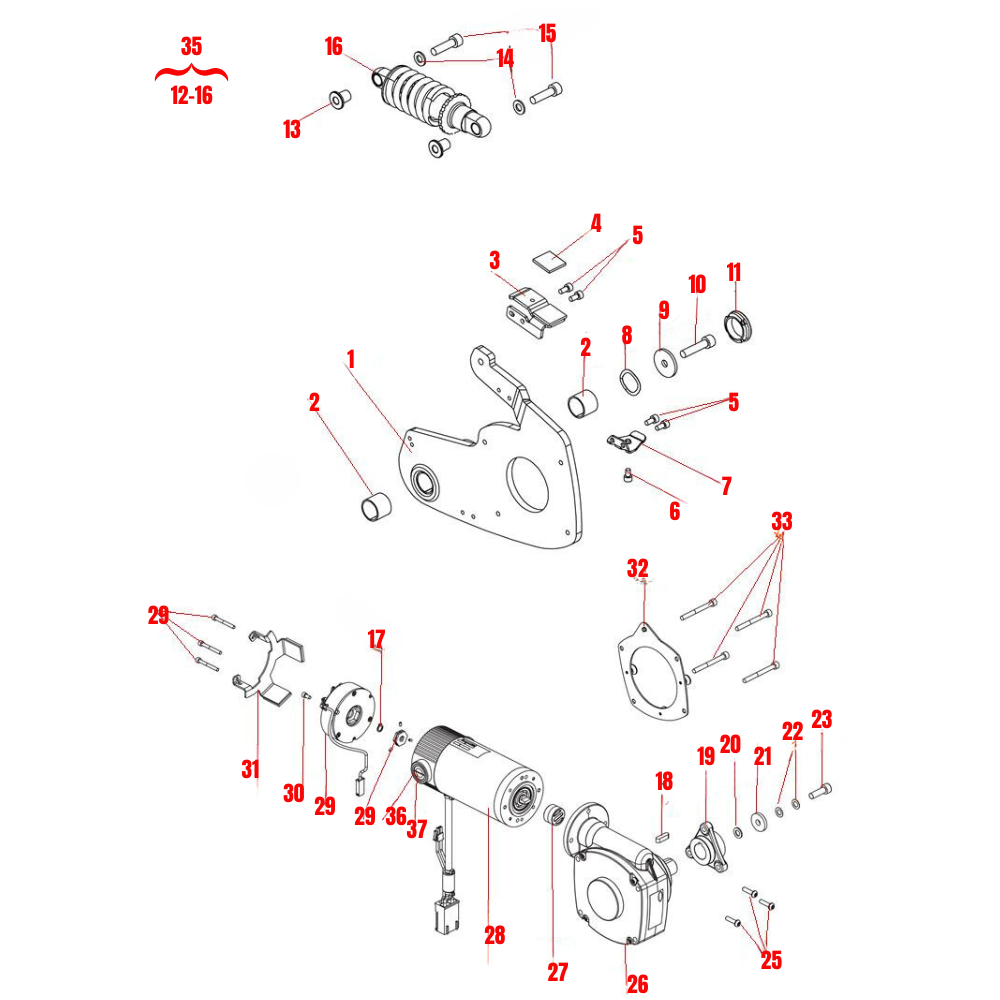

F5 VS Drive Unit Left

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 15.1	Description BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5	Part #: 601075	Replaces: 601075-99-0	Price Reg. Price: Starting At: $14.00
Ref # 23.1	Description BOLT ISO 4762 M8x25	Part #: 612512	Replaces: 612512-99-0	Price Reg. Price: Starting At: $14.00
Ref # 29.1	Description BOLT ISO 4762 M8x25-A	Part #: 612512-A	Replaces: 1835032	Price Reg. Price: Starting At: $14.00
Ref # 30.1	Description BOLT MC6S 4x 8 fzb-B	Part #: 600182-B	Replaces: 600182-99-0	Price Reg. Price: Starting At: $14.00
Ref # 6.1	Description BOLT MC6S 5x 8 fzb	Part #: 600188	Replaces: 600188-99-0	Price Reg. Price: Starting At: $14.00
Ref # 33.1	Description BOLT MC6S 6x60 fzb	Part #: 601923	Replaces: 601923-99-0	Price Reg. Price: Starting At: $14.00
Ref # 37.1	Description BRUSH CAP, M20x1 EACH, LINIX MOTORS	Part #: 1834364	Replaces: 1834364	Price Reg. Price: Starting At: $14.00
Ref # 17.1	Description CIRCLIP SGA 8	Part #: 600503	Replaces: 600503-99-0	Price Reg. Price: Starting At: $14.00
Ref # 18.1	Description KEY 6X6X22 DRIVE SHAFT	Part #: 600855	Replaces: 600855-99-0	Price Reg. Price: Starting At: $14.00
Ref # 11.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M	Part #: 301146	Replaces: 301146-00-0	Price Reg. Price: Starting At: $14.00
Ref # 10.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222	Part #: 602150	Replaces: 1830714	Price Reg. Price: Starting At: $14.00
Ref # 5.1	Description SHCS MC6S 5x10 fzb ISO 4762-B	Part #: 600189-B	Replaces: 600189-99-0	Price Reg. Price: Starting At: $14.00
Ref # 22.1	Description SPACER DB DIN988 8x14x0.5	Part #: 612531	Replaces: 612531-99-0	Price Reg. Price: Starting At: $14.00
Ref # 20.1	Description WASH 8.4x15x1.5 PA	Part #: 612902	Replaces: 612902-99-0	Price Reg. Price: Starting At: $14.00
Ref # 21.1	Description WASH 8.4x23x5 HB 305 YELLOW	Part #: 612513	Replaces: 612513-99-0	Price Reg. Price: Starting At: $14.00
Ref # 14.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED	Part #: 600239	Replaces: 600239-99-0	Price Reg. Price: Starting At: $14.00
Ref # 9.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3	Part #: 316714	Replaces: 316714-99-0	Price Reg. Price: Starting At: $14.00
Ref # 8.1	Description WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18	Part #: 615405	Replaces: 615405-99-0	Price Reg. Price: Starting At: $14.00
Ref # 36.1	Description CARBON BRUSH, MOTOR, EACH M300 M400 M300HD C350	Part #: 1830688	Replaces: 1830688	Price Reg. Price: Starting At: $18.00
Ref # 35.1	Description SHOCK ABSORBER, INCL HDW F5 CHASSIS, EACH	Part #: 323763	Replaces: 1830764	Price Reg. Price: Starting At: $150.44
Ref # 29.1	Description MAGNETIC WHEEL LOCK, F5 >4/2019	Part #: 1835031	Replaces: 1835031	Price Reg. Price: Starting At: $272.48
Ref # 1.1	Description SWING ARM FRONT LEFT, F5	Part #: 323552	Replaces: 1831187	Price Reg. Price: Starting At: $325.52
Ref # 34.2	Description DRIVE UNIT LEFT 4200 RPM 22V 500W F5	Part #: 336508	Replaces: 1837440	Price Reg. Price: $1,649.99 Starting At: $924.99

gift guide

Quick & Easy Checkout

F5 VS Drive Unit Left

BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5

BOLT ISO 4762 M8x25

BOLT ISO 4762 M8x25-A

BOLT MC6S 4x 8 fzb-B

BOLT MC6S 5x 8 fzb

BOLT MC6S 6x60 fzb

BRUSH CAP, M20x1 EACH, LINIX MOTORS

CIRCLIP SGA 8

KEY 6X6X22 DRIVE SHAFT

PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M

SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222

SHCS MC6S 5x10 fzb ISO 4762-B

SPACER DB DIN988 8x14x0.5

WASH 8.4x15x1.5 PA

WASH 8.4x23x5 HB 305 YELLOW

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED

WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3

WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18

CARBON BRUSH, MOTOR, EACH M300 M400 M300HD C350

SHOCK ABSORBER, INCL HDW F5 CHASSIS, EACH

MAGNETIC WHEEL LOCK, F5 >4/2019

SWING ARM FRONT LEFT, F5

DRIVE UNIT LEFT 4200 RPM 22V 500W F5
