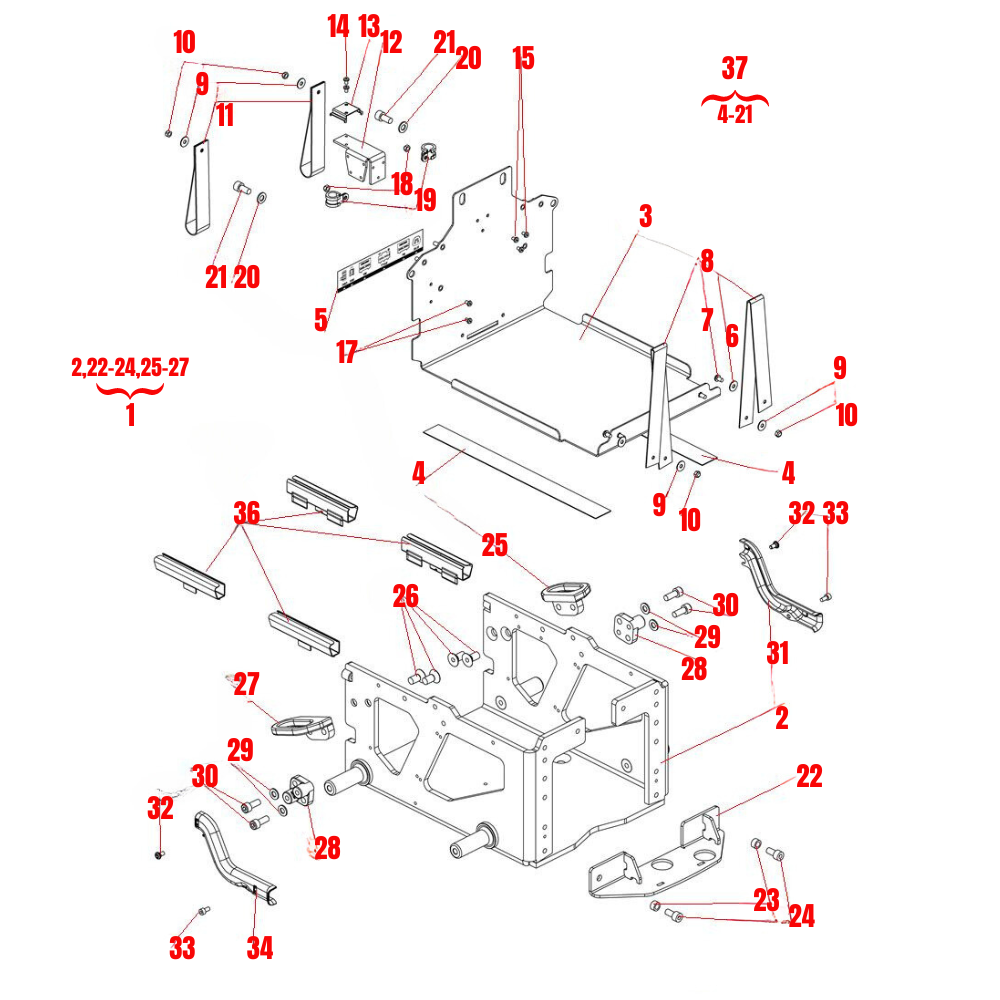

F5 Chassis

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 24.1	Description BOLT M8 x 20mm SHCS ZINC PLATED (8.8)-E	Part #: 600203-E	Replaces: 600203-99-0	Price Reg. Price: $14.00
Ref # 7.1	Description BUTTON HEAD SCREW M5x8 10.9 Fe/Zn 5 C1/LCK	Part #: 613836	Replaces: 1830763	Price Reg. Price: $14.00
Ref # 31.1	Description CABLE CLIP MOTOR LEFT F5	Part #: 1831400	Replaces: 1831400	Price Reg. Price: $14.00
Ref # 34.1	Description CABLE CLIP MOTOR RIGHT F5	Part #: 1831401	Replaces: 1831401	Price Reg. Price: $14.00
Ref # 18.1	Description CABLE CLIP O 13mm CHASSIS, F3 F5 M3 M5	Part #: 1830724	Replaces: 1830724	Price Reg. Price: $14.00
Ref # 36.1	Description HOLDER, CABLE, F3 F5 M3	Part #: 329515	Replaces: 1830725	Price Reg. Price: $14.00
Ref # 10.1	Description LOCK NUT M5 FZB	Part #: 600226	Replaces: 600226-99-0	Price Reg. Price: $14.00
Ref # 19.1	Description LOCK NUT M5 FZB-A	Part #: 600226-A	Replaces: 600226-99-0	Price Reg. Price: $14.00
Ref # 30.1	Description Screw ISO 4762 M8x20 Fe/Z LOCKING COAT DIN 267-28-A	Part #: 613901-A	Replaces: 613901-99-0	Price Reg. Price: $14.00
Ref # 14.1	Description SCREW ISO 7380 M4x6 10.9 Fe/Zn 5 C4	Part #: 612474	Replaces: 1827754	Price Reg. Price: $14.00
Ref # 15.1	Description SCREW ISO 7380 M4x6 10.9 Fe/Zn 5 C4-A	Part #: 612474-A	Replaces: 1827754	Price Reg. Price: $14.00
Ref # 17.1	Description SCREW ISO 7380 M4x6 10.9 Fe/Zn 5 C4-B	Part #: 612474-B	Replaces: 1827754	Price Reg. Price: $14.00
Ref # 33.1	Description SHCS MC6S 5x10 fzb ISO 4762-D	Part #: 600189-D	Replaces: 600189-99-0	Price Reg. Price: $14.00
Ref # 21.1	Description SHCS MC6S 8x16 fzb-A	Part #: 600590-A	Replaces: 600590-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-C	Part #: 600239-C	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 29.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-D	Part #: 600239-D	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description WASHER ISO 7093-1 5 200 HV Fe/Zn 5 C1 (5.3x15x1	Part #: 612857	Replaces: 612857-99-0	Price Reg. Price: $14.00
Ref # 9.1	Description WASHER ISO 7093-1 5 200 HV Fe/Zn 5 C1 (5.3x15x1)-A	Part #: 612857-A	Replaces: 612857-99-0	Price Reg. Price: $14.00
Ref # 38.1	Description PLASTIC PLUG 30mm,CHASSIS	Part #: 325346	Replaces: 1830749	Price Reg. Price: $15.00
Ref # 22.1	Description CONSOLE CHASSIS F3 F5 M3 M5 M1	Part #: 1830747	Replaces: 1830747	Price Reg. Price: $40.00
Ref # 37.1	Description BATTERY BOX ASSEMBLY M3 M5 F3 F5	Part #: 330612	Replaces: 1832869	Price Reg. Price: $202.80
Ref # 1.2	Description CHASSIS BOX, M1, M3, M5 F3, F5	Part #: 333120	Replaces: 1834366	Price Reg. Price: $824.00
