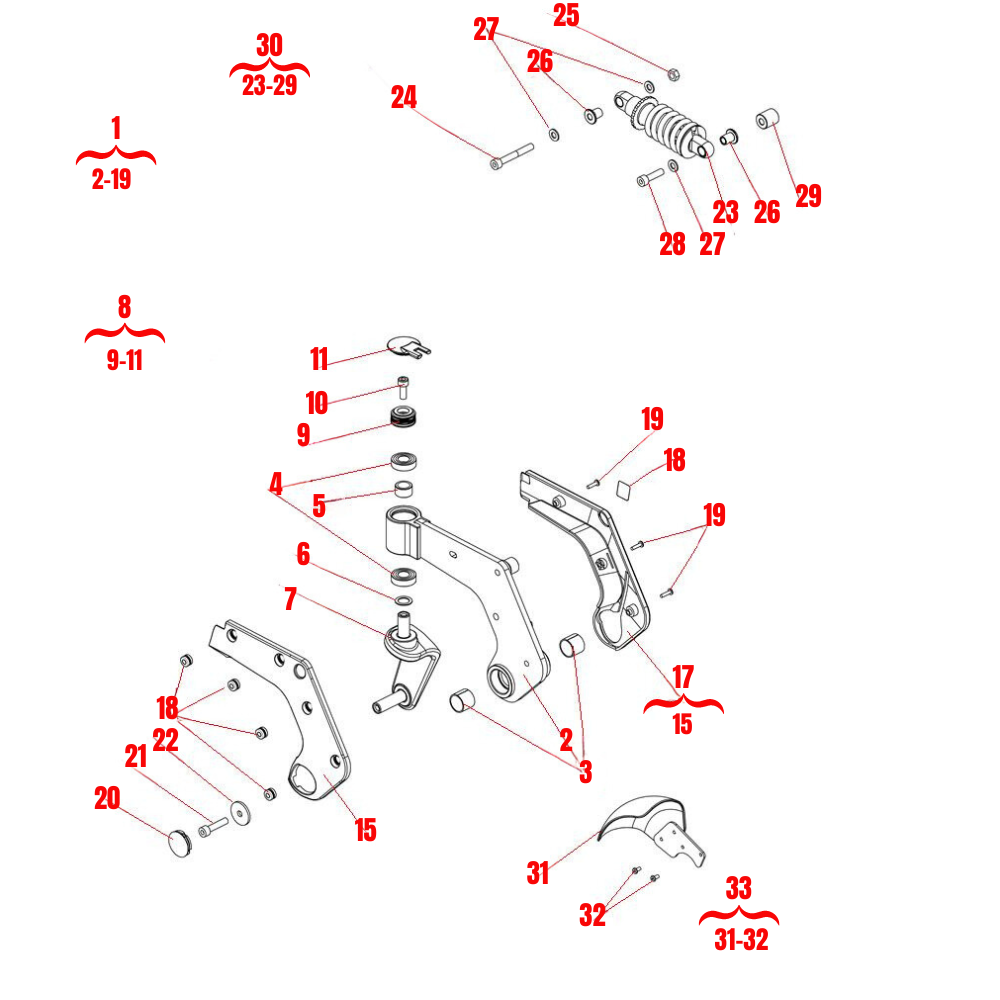

F5 Suspension Rear Right

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 4.1	Description BALL BEARING, SWINGARM AND WHEELS, EACH-C	Part #: 600752-C	Replaces: 600752-99-0	Price Reg. Price: $14.00
Ref # 27.1	Description BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-C	Part #: 601075-C	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 32.1	Description BOLT K6S 4x 8 fzb-C	Part #: 601381-C	Replaces: 601381-99-0	Price Reg. Price: $14.00
Ref # 24.1	Description BOLT MC6S 8x 60 fzb-A	Part #: 600719-A	Replaces: 600719-99-0	Price Reg. Price: $14.00
Ref # 11.2	Description COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-A	Part #: 330833-A	Replaces: 1832866	Price Reg. Price: $14.00
Ref # 18.2	Description GROMMET, BLACK SHROUDS, EACH, F3 F5 V.2-C	Part #: 335663-C	Replaces: 1835620	Price Reg. Price: $14.00
Ref # 25.1	Description NYLOCK NUT M8 ZINC PLATED-C	Part #: 600228-C	Replaces: 600228-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-C	Part #: 301146-C	Replaces: 301146-00-0	Price Reg. Price: $14.00
Ref # 10.1	Description Screw ISO 4762 M8x20 Fe/Z LOCKING COAT DIN 267-28-D	Part #: 613901-D	Replaces: 613901-99-0	Price Reg. Price: $14.00
Ref # 21.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-C	Part #: 602150-C	Replaces: 1830714	Price Reg. Price: $14.00
Ref # 6.1	Description SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-C	Part #: 612383-C	Replaces: 1828317	Price Reg. Price: $14.00
Ref # 5.1	Description SPACER O16xO22x12.5 CASTERS AND SWINGARM-A	Part #: 318410-A	Replaces: 1831010	Price Reg. Price: $14.00
Ref # 29.2	Description SPACER, SHOCK ABSORBER 8.2/20 x 22mm, F3 F5-A	Part #: 323108-A	Replaces: 1831705	Price Reg. Price: $14.00
Ref # 19.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-B	Part #: 613078-B	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 27.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-H	Part #: 600239-H	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 22.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-C	Part #: 316714-C	Replaces: 316714-99-0	Price Reg. Price: $14.00
Ref # 16.1	Description COVER SWINGARM, REAR RGHT OUTSIDE,>4/2019,F3/5	Part #: 1835482	Replaces: 1835482	Price Reg. Price: $16.64
Ref # 17.1	Description COVER SWINGARM, REAR RIGHT INSIDE,>4/2019,F3/5	Part #: 1835481	Replaces: 1835481	Price Reg. Price: $16.64
Ref # 8.1	Description FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-A	Part #: 333233-A	Replaces: 1834999	Price Reg. Price: $28.99
Ref # 33.1	Description MUD GUARD, RIGHT F3 F5	Part #: 335588	Replaces: 1835541	Price Reg. Price: $73.84
Ref # 7.1	Description WHEELFORK, RIGHT F3 F5 M3 M5 M1	Part #: 323065	Replaces: 1830756	Price Reg. Price: $98.99
Ref # 8.2	Description Anti-flutter v.3, adjustable	Part #: 339931	Replaces: NULL	Price Reg. Price: $141.54
Ref # 30.1	Description SHOCK ABSORBER INCL HDW FRONT/REAR, EACH, F3-D	Part #: 1831183-D	Replaces: 1831183	Price Reg. Price: $150.44
Ref # 1.1	Description SWING ARM,REAR RIGHT INCL FORK, F3 F5	Part #: 334908	Replaces: 1835484	Price Reg. Price: $262.08

Quick & Easy Checkout

F5 Suspension Rear Right

BALL BEARING, SWINGARM AND WHEELS, EACH-C

BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-C

BOLT K6S 4x 8 fzb-C

BOLT MC6S 8x 60 fzb-A

COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-A

GROMMET, BLACK SHROUDS, EACH, F3 F5 V.2-C

NYLOCK NUT M8 ZINC PLATED-C

PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-C

Screw ISO 4762 M8x20 Fe/Z LOCKING COAT DIN 267-28-D

SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-C

SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-C

SPACER O16xO22x12.5 CASTERS AND SWINGARM-A

SPACER, SHOCK ABSORBER 8.2/20 x 22mm, F3 F5-A

TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-B

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-H

WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-C

COVER SWINGARM, REAR RGHT OUTSIDE,>4/2019,F3/5

COVER SWINGARM, REAR RIGHT INSIDE,>4/2019,F3/5

FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-A

MUD GUARD, RIGHT F3 F5

WHEELFORK, RIGHT F3 F5 M3 M5 M1

Anti-flutter v.3, adjustable

SHOCK ABSORBER INCL HDW FRONT/REAR, EACH, F3-D

SWING ARM,REAR RIGHT INCL FORK, F3 F5
