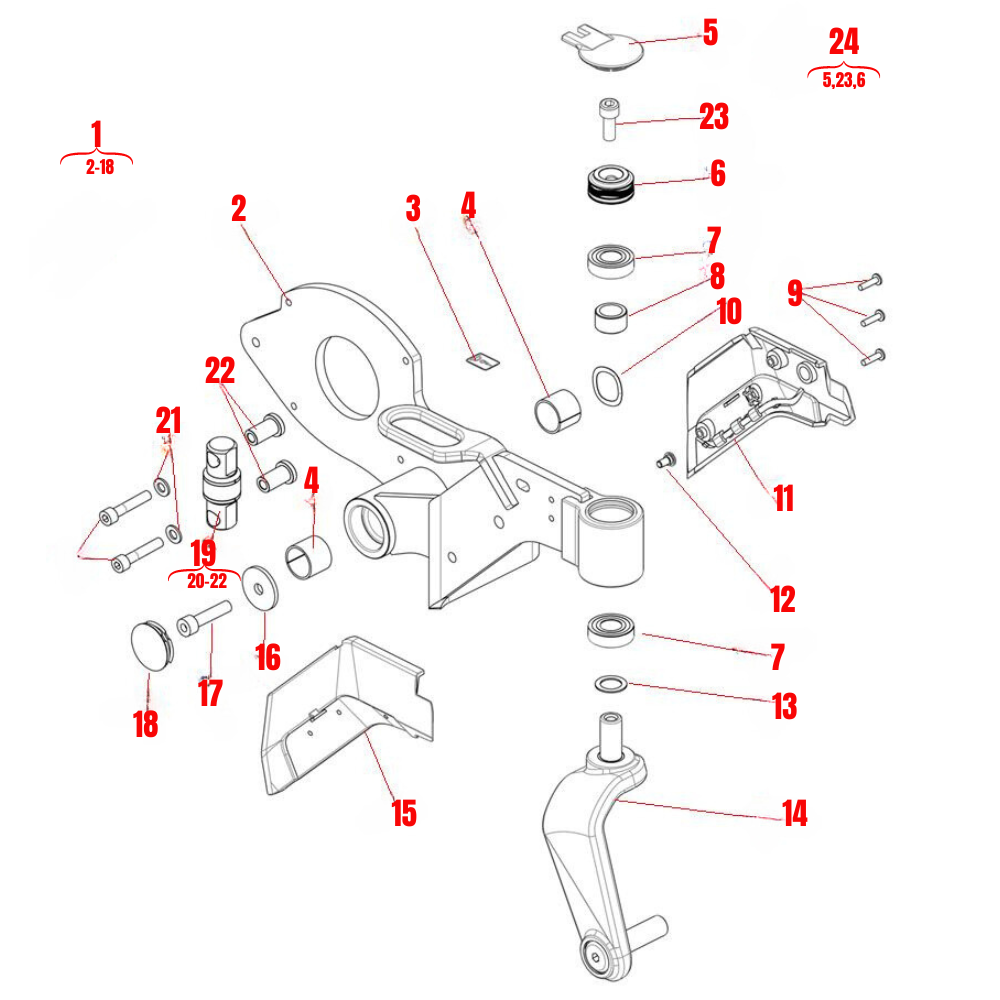

M1 Swing Arm, Front Right

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 7.1	Description BALL BEARING, SWINGARM AND WHEELS, EACH-P	Part #: 600752-P	Replaces: 600752-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description BOLT MC6S 8x40 fzb ESL 8.8 ISO 4762 DIN267-28-K	Part #: 602150-K	Replaces: 602150-99-0	Price Reg. Price: $14.00
Ref # 2.2	Description COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-I	Part #: 330833-I	Replaces: 1832866	Price Reg. Price: $14.00
Ref # 18.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-F	Part #: 301146-F	Replaces: 301146-00-0	Price Reg. Price: $14.00
Ref # 17.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-J	Part #: 602150-J	Replaces: 1830714	Price Reg. Price: $14.00
Ref # 13.1	Description SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-P	Part #: 612383-P	Replaces: 1828317	Price Reg. Price: $14.00
Ref # 22.1	Description SOCKET, SHOCK/ FLEXLINK M3 M5 M1 F3 F5 M3/400 &HD,,	Part #: 331155	Replaces: 1833014	Price Reg. Price: $14.00
Ref # 8.1	Description SPACER O16xO22x12.5 CASTERS AND SWINGARM-L	Part #: 318410-L	Replaces: 1831010	Price Reg. Price: $14.00
Ref # 9.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-K	Part #: 613078-K	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 21.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-R	Part #: 600239-R	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 10.1	Description WASHER SPRING DISC, ON M3/5<9/5/17 &F3/5<3/28/18,,	Part #: 613990	Replaces: 1830715	Price Reg. Price: $14.00
Ref # 16.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-F	Part #: 316714-F	Replaces: 316714-99-0	Price Reg. Price: $14.00
Ref # 10.2	Description WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-D	Part #: 615405-D	Replaces: 615405-99-0	Price Reg. Price: $14.00
Ref # 24.2	Description Anti-flutter v.3, adjustable,,,,,,,,,,	Part #: 339931	Replaces: 339931	Price Reg. Price: $19.76
Ref # 11.1	Description COVER, FRONT SWINGARM INSIDE RIGHT, M3	Part #: 1832882	Replaces: 1832882	Price Reg. Price: $19.76
Ref # 15.1	Description COVER, FRONT SWINGARM OUTSIDE RIGHT, M3	Part #: 1832884	Replaces: 1832884	Price Reg. Price: $19.76
Ref # 12.1	Description SCREW CLIP M5x8, FRONT SWINGARM, M3 M5,,	Part #: 1833011	Replaces: 1833011	Price Reg. Price: $19.76
Ref # 24.1	Description FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-K	Part #: 333233-K	Replaces: 1834999	Price Reg. Price: $28.99
Ref # 19.1	Description FLEX LINK ASSEMBLY w/HDW EACH, M3 M1,,	Part #: 1833006	Replaces: 1833006	Price Reg. Price: $32.24
Ref # 14.1	Description WHEELFORK, RIGHT F3 F5 M3 M5 M1-F	Part #: 323065-F	Replaces: 1830756	Price Reg. Price: $114.12
Ref # 1.1	Description SWING ARM FRONT RIGHT w/FORK & COVERS, M3 M1	Part #: 332379	Replaces: 1832942	Price Reg. Price: $405.60

Quick & Easy Checkout

M1 Swing Arm, Front Right

BALL BEARING, SWINGARM AND WHEELS, EACH-P

BOLT MC6S 8x40 fzb ESL 8.8 ISO 4762 DIN267-28-K

COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-I

PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-F

SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-J

SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-P

SOCKET, SHOCK/ FLEXLINK M3 M5 M1 F3 F5 M3/400 &HD,,

SPACER O16xO22x12.5 CASTERS AND SWINGARM-L

TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-K

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-R

WASHER SPRING DISC, ON M3/5<9/5/17 &F3/5<3/28/18,,

WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-F

WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-D

Anti-flutter v.3, adjustable,,,,,,,,,,

COVER, FRONT SWINGARM INSIDE RIGHT, M3

COVER, FRONT SWINGARM OUTSIDE RIGHT, M3

SCREW CLIP M5x8, FRONT SWINGARM, M3 M5,,

FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-K

FLEX LINK ASSEMBLY w/HDW EACH, M3 M1,,

WHEELFORK, RIGHT F3 F5 M3 M5 M1-F

SWING ARM FRONT RIGHT w/FORK & COVERS, M3 M1
