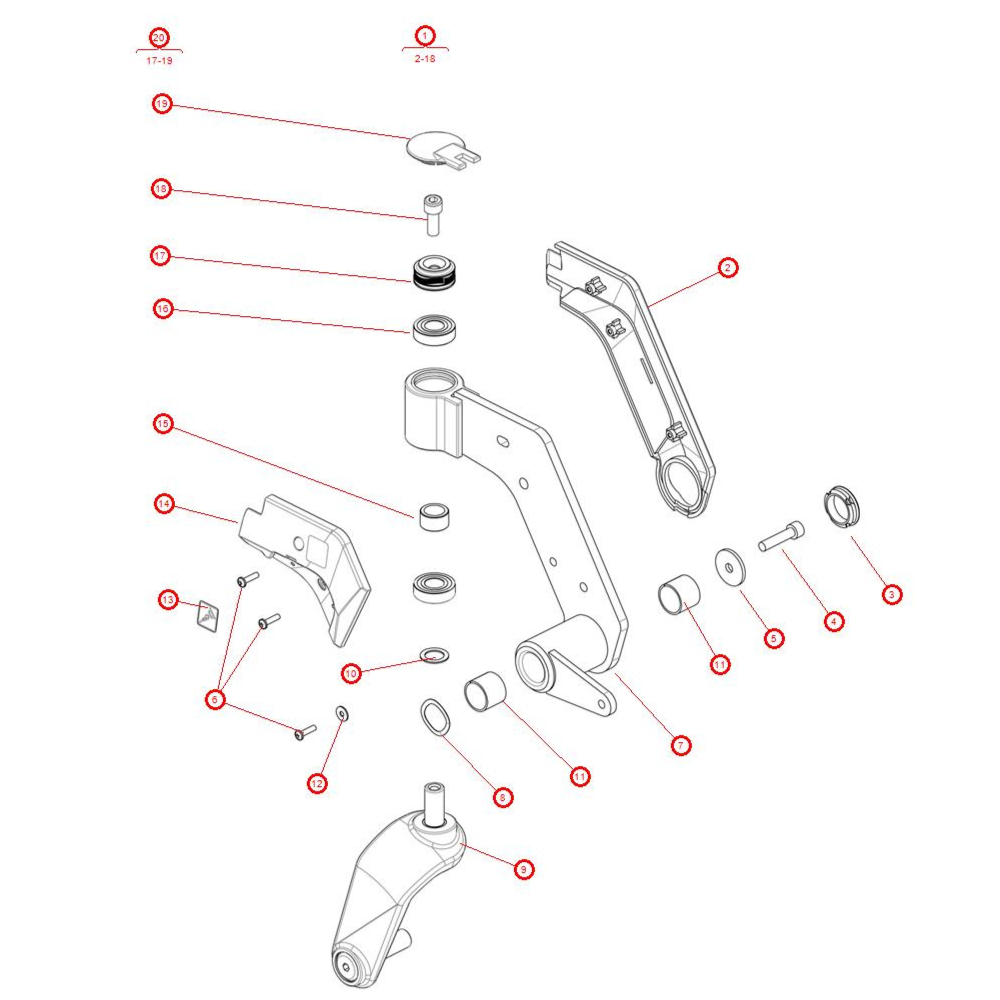

M1 Swing Arm, Rear Left

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 16.1	Description BALL BEARING, SWINGARM AND WHEELS, EACH-O	Part #: 600752-O	Replaces: 600752-99-0	Price Reg. Price: $14.00
Ref # 19.2	Description COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-H	Part #: 330833-H	Replaces: 1832866	Price Reg. Price: $14.00
Ref # 13.1	Description DECAL, TIE DOWN, EACH F3 F5 M1 M3 M5,	Part #: 324882	Replaces: 1831397	Price Reg. Price: $14.00
Ref # 3.1	Description PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-E	Part #: 301146-E	Replaces: 301146-00-0	Price Reg. Price: $14.00
Ref # 4.1	Description SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-I	Part #: 602150-I	Replaces: 1830714	Price Reg. Price: $14.00
Ref # 10.1	Description SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-O	Part #: 612383-O	Replaces: 1828317	Price Reg. Price: $14.00
Ref # 15.1	Description SPACER O16xO22x12.5 CASTERS AND SWINGARM-K	Part #: 318410-K	Replaces: 1831010	Price Reg. Price: $14.00
Ref # 6.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-J	Part #: 613078-J	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 21.1	Description WASH BRB 4.3x12x1-F	Part #: 600829	Replaces: 600829-99-0	Price Reg. Price: $14.00
Ref # 8.1	Description WASHER SPRING DISC, ON M3/5<9/5/17 &F3/5<3/28/18,	Part #: 613990	Replaces: 1830715	Price Reg. Price: $14.00
Ref # 5.1	Description WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-E	Part #: 316714-E	Replaces: 316714-99-0	Price Reg. Price: $14.00
Ref # 8.2	Description WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-C	Part #: 615405-C	Replaces: 615405-99-0	Price Reg. Price: $14.00
Ref # 2.1	Description COVER, REAR SWINGARM OUTSIDE LEFT, M3 M1	Part #: 1832877	Replaces: 1832877	Price Reg. Price: $19.76
Ref # 14.1	Description COVER, REAR SWINGARM INSIDE LEFT INCL DECAL,M3	Part #: 1832875	Replaces: 1832875	Price Reg. Price: $23.92
Ref # 20.1	Description FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-J	Part #: 333233-J	Replaces: 1834999	Price Reg. Price: $28.99
Ref # 9.1	Description WHEELFORK, LEFT F3 F5 M3 M5 M1,,,,	Part #: 323064	Replaces: 1830755	Price Reg. Price: $98.99
Ref # 20.2	Description Anti-flutter v.3, adjustable,,,,,,,,,	Part #: 339931	Replaces: 339931	Price Reg. Price: $141.54
Ref # 1.1	Description SWING ARM REAR LEFT w/FORK & COVERS, M3 M1	Part #: 332380	Replaces: 1832945	Price Reg. Price: $202.80

Quick & Easy Checkout

M1 Swing Arm, Rear Left

BALL BEARING, SWINGARM AND WHEELS, EACH-O

COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-H

DECAL, TIE DOWN, EACH F3 F5 M1 M3 M5,

PLASTIC PLUG, REAR WHEEL HD3 KOALA,SW.ARM F3/5 M-E

SHCS M8x35 LOCKING COAT 8.8 Fe/Zn 5 C1 DIN 17222-I

SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-O

SPACER O16xO22x12.5 CASTERS AND SWINGARM-K

TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-J

WASH BRB 4.3x12x1-F

WASHER SPRING DISC, ON M3/5<9/5/17 &F3/5<3/28/18,

WASHER, SLEWING BRACKET M3/400 C350 F3/5 M3-E

WAVE SPRING WASHER, ON M3/5>9/5/17&F3/5>3/28/18-C

COVER, REAR SWINGARM OUTSIDE LEFT, M3 M1

COVER, REAR SWINGARM INSIDE LEFT INCL DECAL,M3

FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-J

WHEELFORK, LEFT F3 F5 M3 M5 M1,,,,

Anti-flutter v.3, adjustable,,,,,,,,,

SWING ARM REAR LEFT w/FORK & COVERS, M3 M1
