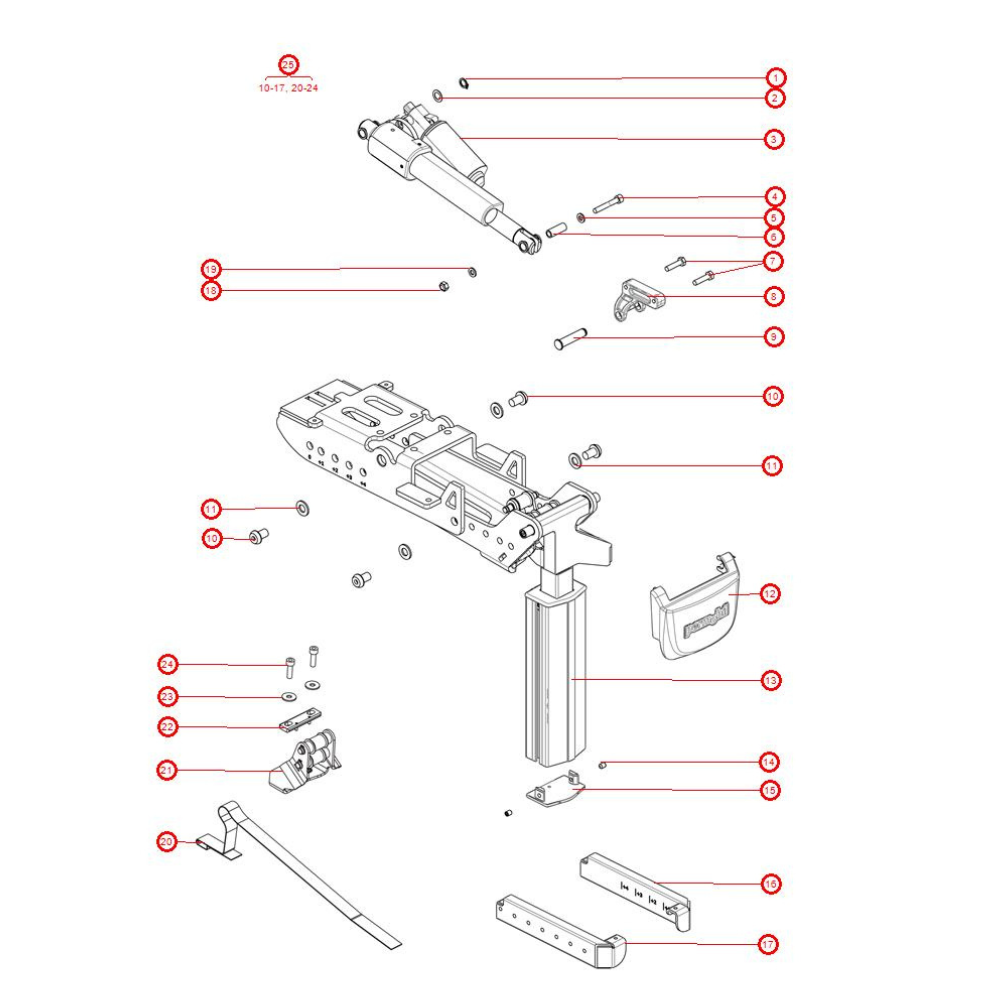

M1 Power Legrest

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 24.1	Description BOLT MC6S 6x20 fzb-F	Part #: 600194-F	Replaces: 600194-99-0	Price Reg. Price: $14.00
Ref # 4.1	Description BOLT MC6S 6x40 fzb	Part #: 601756	Replaces: 601756-99-0	Price Reg. Price: $14.00
Ref # 1.1	Description CIRCLIP SGA 10, HD3 KOALA, CORPUS 3G/VS,	Part #: 600271	Replaces: 600271-99-0	Price Reg. Price: $14.00
Ref # 15.1	Description COVER, BOTTOM, CENTER MNT LEGR, M1,	Part #: 331815	Replaces: 1834598	Price Reg. Price: $14.00
Ref # 7.1	Description HEX HEAD BOLT, ISO 4017 M6x25 10.9 Fe/An 5 C1,	Part #: 615608	Replaces: 615608-99-0	Price Reg. Price: $14.00
Ref # 9.1	Description HINGE PIN, MANUAL RECLINE POWER LEGR, M1,	Part #: 332439	Replaces: 332439-99-0	Price Reg. Price: $14.00
Ref # 18.1	Description LOCK NUT M6 LOW fzb DIN985/ISO10511-H	Part #: 600227-H	Replaces: 600227-99-0	Price Reg. Price: $14.00
Ref # 14.1	Description SET SCREW M6x8 CORPUS/3G, M1,,	Part #: 613428	Replaces: 1825583	Price Reg. Price: $14.00
Ref # 2.1	Description SPACER DB 10x16x0.5 fzb,	Part #: 602821	Replaces: 602821-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description SPACER, ACTUATOR, POWER MIDMOUNT LEGR, M1	Part #: 331848	Replaces: 331848-99-0	Price Reg. Price: $14.00
Ref # 11.1	Description WASH BRB 10.5x20x2 fzb-B	Part #: 600241-B	Replaces: 600241-99-0	Price Reg. Price: $14.00
Ref # 5.1	Description WASH BRB 6.4x12x1.5 fzb STD-R	Part #: 600238-R	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 19.1	Description WASH BRB 6.4x12x1.5 fzb STD-S	Part #: 600238-S	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 23.1	Description WASHER 6,4x18x1,6 fzb-A	Part #: 612675-A	Replaces: 612675-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description WEB BELT, POWER LEGREST M1	Part #: 332070	Replaces: 1834627	Price Reg. Price: $14.00
Ref # 12.1	Description COVER LEGREST, UPPER CENTER MOUNT LEGR, M1,	Part #: 331850	Replaces: 1834597	Price Reg. Price: $16.64
Ref # 16.1	Description BRACKET, SEAT EXTENSION LEFT, CENTER MNT LEGR, M1,	Part #: 331932	Replaces: 1834600	Price Reg. Price: $23.92
Ref # 17.1	Description BRACKET, SEAT EXTENSION RIGHT,CENTER MNT LEGR, M1,	Part #: 331889	Replaces: 1834601	Price Reg. Price: $23.92
Ref # 8.1	Description BRACKET, POWER CONTROL LEGREST, NO HDW, M1	Part #: 332436	Replaces: 1834599	Price Reg. Price: $34.32
Ref # 25.1	Description POWER CONTROL LEGR ASSY NO ACTUATOR OR FOOTPL, M1	Part #: 333730	Replaces: 1834456	Price Reg. Price: $549.12
Ref # 3.1	Description POWER CONTROL LEGREST ACTUATOR ONLY, M1	Part #: 615226	Replaces: 1834585	Price Reg. Price: $680.11

Quick & Easy Checkout

M1 Power Legrest

BOLT MC6S 6x20 fzb-F

BOLT MC6S 6x40 fzb

CIRCLIP SGA 10, HD3 KOALA, CORPUS 3G/VS,

COVER, BOTTOM, CENTER MNT LEGR, M1,

HEX HEAD BOLT, ISO 4017 M6x25 10.9 Fe/An 5 C1,

HINGE PIN, MANUAL RECLINE POWER LEGR, M1,

LOCK NUT M6 LOW fzb DIN985/ISO10511-H

SET SCREW M6x8 CORPUS/3G, M1,,

SPACER DB 10x16x0.5 fzb,

SPACER, ACTUATOR, POWER MIDMOUNT LEGR, M1

WASH BRB 10.5x20x2 fzb-B

WASH BRB 6.4x12x1.5 fzb STD-R

WASH BRB 6.4x12x1.5 fzb STD-S

WASHER 6,4x18x1,6 fzb-A

WEB BELT, POWER LEGREST M1

COVER LEGREST, UPPER CENTER MOUNT LEGR, M1,

BRACKET, SEAT EXTENSION LEFT, CENTER MNT LEGR, M1,

BRACKET, SEAT EXTENSION RIGHT,CENTER MNT LEGR, M1,

BRACKET, POWER CONTROL LEGREST, NO HDW, M1

POWER CONTROL LEGR ASSY NO ACTUATOR OR FOOTPL, M1

POWER CONTROL LEGREST ACTUATOR ONLY, M1
