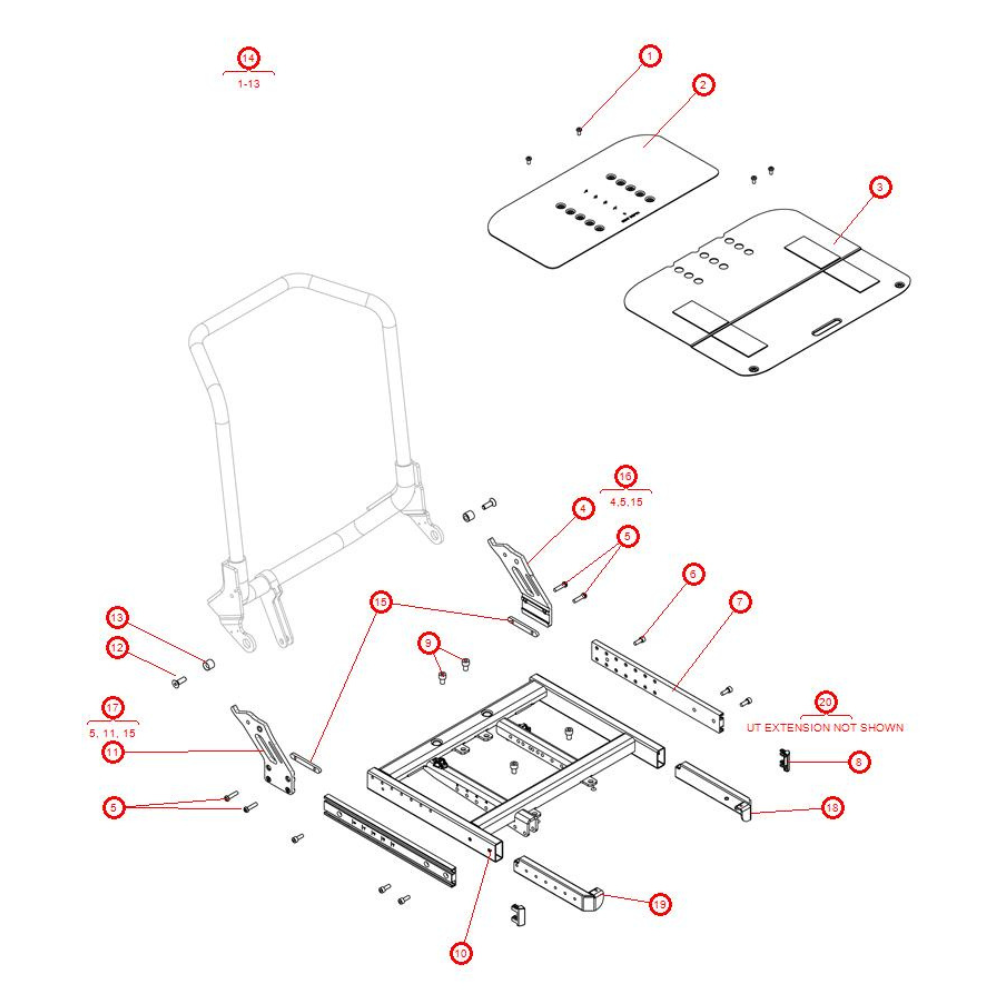

M1 Seat Frame

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 1.1	Description BHCS K6S 5x10 fzb	Part #: 601353	Replaces: 601353-99-0	Price Reg. Price: $14.00
Ref # 5.1	Description BOLT K6S 6x12 fzb-K	Part #: 601422-99-K	Replaces: 601422-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description BOLT MC6S 6x16 fzb-G	Part #: 600743-G	Replaces: 600743-99-0	Price Reg. Price: $14.00
Ref # 9.1	Description BOLT MC6S 8x 12 fzb SHCS	Part #: 600705	Replaces: 600705-99-0	Price Reg. Price: $14.00
Ref # 12.1	Description BOLT MF6S 8x25 fzb	Part #: 600744	Replaces: 600744-99-0	Price Reg. Price: $14.00
Ref # 8.1	Description END CAP FOR UT THIN RAIL (QTY 1),	Part #: 315427	Replaces: 1824301	Price Reg. Price: $14.00
Ref # 18.1	Description BRACKET, SEAT EXTENSION LEFT, CENTER MNT LEGR, M1,,	Part #: 331932	Replaces: 1834600	Price Reg. Price: $23.92
Ref # 19.1	Description BRACKET, SEAT EXTENSION RIGHT,CENTER MNT LEGR, M1,,	Part #: 331889	Replaces: 1834601	Price Reg. Price: $23.92
Ref # 20.1	Description UNITRACK EXTENSION, M1 FOR AMP SUPPORT, EACH	Part #: 333041	Replaces: 1834443	Price Reg. Price: $32.24
Ref # 7.1	Description UT RAIL, SEAT FRAME, M1 14" - 22" SEAT WIDTH, EA.	Part #: 331296	Replaces: 1834468	Price Reg. Price: $32.24
Ref # 16.1	Description BRACKET, BACKREST, LEFT SEAT FRAME MOUNT, M1	Part #: 332092	Replaces: 1834628	Price Reg. Price: $40.56
Ref # 17.1	Description BRACKET, BACKREST, RIGHT SEAT FRAME MOUNT, M1	Part #: 332091	Replaces: 1834467	Price Reg. Price: $40.56
Ref # 2.2	Description SEAT PLATE, FRONT & REAR 16", NO HDW, M1	Part #: 1834602	Replaces: 1834602	Price Reg. Price: $76.96
Ref # 2.3	Description SEAT PLATE, FRONT & REAR 18"W, NO HDW, M1	Part #: 1834604	Replaces: 1834604	Price Reg. Price: $81.12
Ref # 2.4	Description SEAT PLATE, FRONT & REAR 20"W, NO HDW, M1	Part #: 1834605	Replaces: 1834605	Price Reg. Price: $86.32
Ref # 2.5	Description SEAT PLATE, FRONT & REAR 22"W, NO HDW, M1	Part #: 1834606	Replaces: 1834606	Price Reg. Price: $90.48
Ref # 14.1	Description SEAT FRAME, COMPLETE FOR 14"W SEAT/BACK SIZE, M1	Part #: 1834473	Replaces: 1834473	Price Reg. Price: $474.24
Ref # 14.2	Description SEAT FRAME, COMPLETE FOR 16"W SEAT/BACK SIZE, M1	Part #: 1834472	Replaces: 1834472	Price Reg. Price: $488.80
Ref # 14.3	Description SEAT FRAME, COMPLETE FOR 18"W SEAT/BACK SIZE, M1	Part #: 1834471	Replaces: 1834471	Price Reg. Price: $504.40
Ref # 14.4	Description SEAT FRAME, COMPLETE FOR 20"W SEAT/BACK SIZE, M1	Part #: 1834470	Replaces: 1834470	Price Reg. Price: $517.92
Ref # 14.5	Description SEAT FRAME, COMPLETE FOR 22"W SEAT/BACK SIZE, M1	Part #: 1834469	Replaces: 1834469	Price Reg. Price: $537.68

Quick & Easy Checkout

M1 Seat Frame

BHCS K6S 5x10 fzb

BOLT K6S 6x12 fzb-K

BOLT MC6S 6x16 fzb-G

BOLT MC6S 8x 12 fzb SHCS

BOLT MF6S 8x25 fzb

END CAP FOR UT THIN RAIL (QTY 1),

BRACKET, SEAT EXTENSION LEFT, CENTER MNT LEGR, M1,,

BRACKET, SEAT EXTENSION RIGHT,CENTER MNT LEGR, M1,,

UNITRACK EXTENSION, M1 FOR AMP SUPPORT, EACH

UT RAIL, SEAT FRAME, M1 14" - 22" SEAT WIDTH, EA.

BRACKET, BACKREST, LEFT SEAT FRAME MOUNT, M1

BRACKET, BACKREST, RIGHT SEAT FRAME MOUNT, M1

SEAT PLATE, FRONT & REAR 16", NO HDW, M1

SEAT PLATE, FRONT & REAR 18"W, NO HDW, M1

SEAT PLATE, FRONT & REAR 20"W, NO HDW, M1

SEAT PLATE, FRONT & REAR 22"W, NO HDW, M1

SEAT FRAME, COMPLETE FOR 14"W SEAT/BACK SIZE, M1

SEAT FRAME, COMPLETE FOR 16"W SEAT/BACK SIZE, M1

SEAT FRAME, COMPLETE FOR 18"W SEAT/BACK SIZE, M1

SEAT FRAME, COMPLETE FOR 20"W SEAT/BACK SIZE, M1

SEAT FRAME, COMPLETE FOR 22"W SEAT/BACK SIZE, M1
