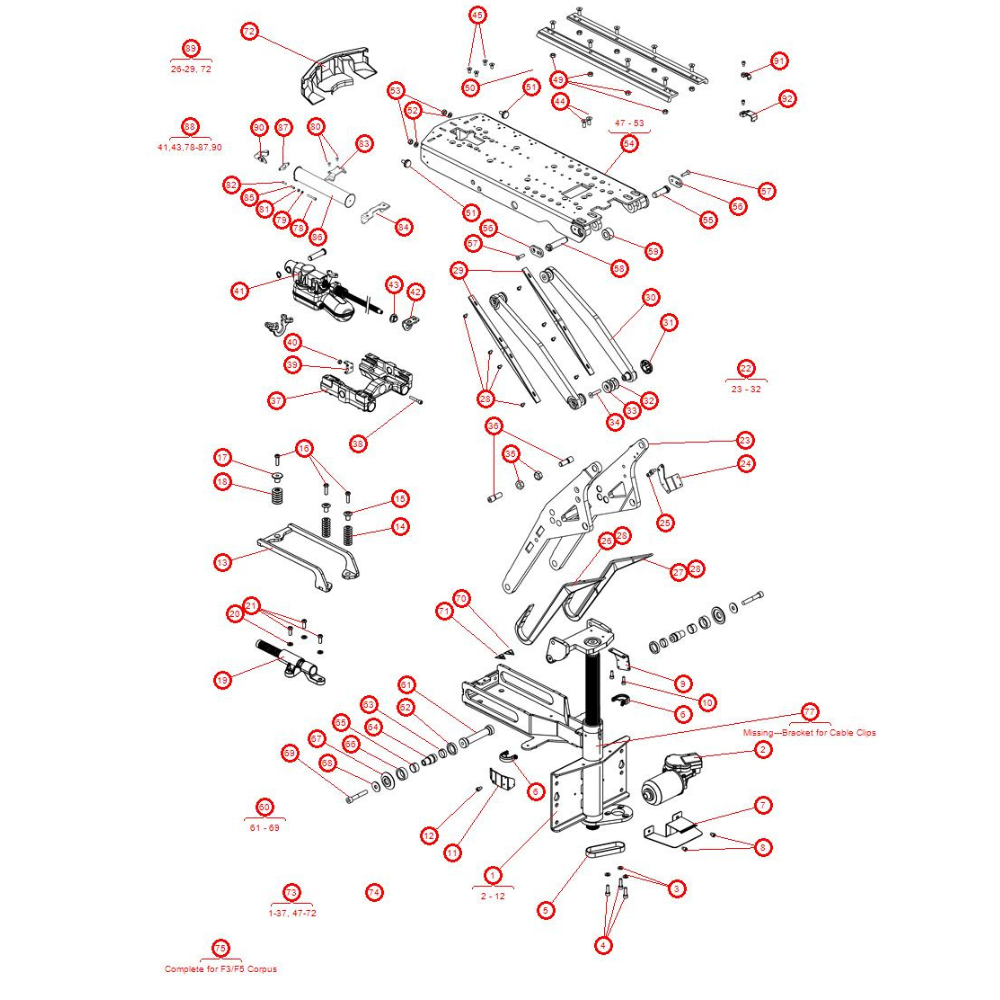

M3 AP Unit

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 28.1	Description BHCS M4x8 10.9 Fe/Zn 5 C1 LOCKING COAT DIN 267-28-A	Part #: 614811-A	Replaces: 614811-99-0	Price Reg. Price: $14.00
Ref # 21.1	Description BOLT K6S 6x16, AP-UNIT PS/PSJR, MF, HEADR-B	Part #: 601675-B	Replaces: 601675	Price Reg. Price: $14.00
Ref # 16.1	Description BOLT K6S 6x22 fzb-B	Part #: 602397-B	Replaces: 602397-99-0	Price Reg. Price: $14.00
Ref # 45.1	Description BOLT M5 x 10mm FHCS ZINC PLATED-B	Part #: 601708-B	Replaces: 601708-99-0	Price Reg. Price: $14.00
Ref # 8.1	Description BOLT MC6S 5x 6 fzb-A	Part #: 601126-A	Replaces: 601126-99-0	Price Reg. Price: $14.00
Ref # 12.1	Description BOLT MC6S 5x 8 fzb-D	Part #: 600188-D	Replaces: 600188-99-0	Price Reg. Price: $14.00
Ref # 10.1	Description BOLT MC6S 5x14 fzb-B	Part #: 600190-B	Replaces: 600190-99-0	Price Reg. Price: $14.00
Ref # 25.1	Description BOLT MC6S 5x14 fzb-C	Part #: 600190-C	Replaces: 600190-99-0	Price Reg. Price: $14.00
Ref # 4.1	Description BOLT MC6S 6x20 fzb-I	Part #: 600194-I	Replaces: 600194-99-0	Price Reg. Price: $14.00
Ref # 38.1	Description BOLT MC6S 6x30 fzb-B	Part #: 600196-B	Replaces: 600196-99-0	Price Reg. Price: $14.00
Ref # 78.1	Description BOLT MC6S 6x40 fzb-B	Part #: 601756-B	Replaces: 601756-99-0	Price Reg. Price: $14.00
Ref # 80.1	Description BOLT MF6S 6x12 fzb-F	Part #: 601788-F	Replaces: 601788-99-0	Price Reg. Price: $14.00
Ref # 44.1	Description BOLT MF6S 6x16 fzb-A	Part #: 600541-A	Replaces: 600541-99-0	Price Reg. Price: $14.00
Ref # 34.1	Description BOLT MF6S 6x25 fzb-B	Part #: 600735-B	Replaces: 600735-99-0	Price Reg. Price: $14.00
Ref # 77.1	Description BRACKET, CABLE HOLD ELEV, AP-UNIT-A	Part #: 323498-A	Replaces: 1832049	Price Reg. Price: $14.00
Ref # 91.1	Description CABLE CLIP, 2 CABLES F5 M5, EACH-B	Part #: 323452-B	Replaces: 1831112	Price Reg. Price: $14.00
Ref # 92.1	Description CABLE CLIP, 3 CABLES F5 M5, EACH-B	Part #: 323495-B	Replaces: 1831113	Price Reg. Price: $14.00
Ref # 72.1	Description COVER, REAR, AP-UNIT-A	Part #: 324394-A	Replaces: 1831288	Price Reg. Price: $14.00
Ref # 71.1	Description DECAL, PINCH RISK, EACH F5 LEGR, M1 BACKR FRAME-A	Part #: 324871-A	Replaces: 1831391	Price Reg. Price: $14.00
Ref # 70.1	Description DECAL, WARNING	Part #: 324884	Replaces: 1831398	Price Reg. Price: $14.00
Ref # 35.1	Description LOCK NUT M10 FZB-B	Part #: 600229-B	Replaces: 600229-99-0	Price Reg. Price: $14.00
Ref # 40.1	Description LOCK NUT M6 LOW fzb DIN985/ISO10511-M	Part #: 600227-M	Replaces: 600227-99-0	Price Reg. Price: $14.00
Ref # 81.1	Description LOCK NUT M6 LOW fzb DIN985/ISO10511-N	Part #: 600227-N	Replaces: 600227-99-0	Price Reg. Price: $14.00
Ref # 49.1	Description NUT M6M 6 fzb-C	Part #: 600232-C	Replaces: 600232-99-0	Price Reg. Price: $14.00
Ref # 53.1	Description NUT M6M 6 fzb-D	Part #: 600232-D	Replaces: 600232-99-0	Price Reg. Price: $14.00
Ref # 6.1	Description PROTECTOR CAP, AP-UNIT CORPUS/CORPUS VS-A	Part #: 1831287-A	Replaces: 1831287	Price Reg. Price: $14.00
Ref # 57.1	Description Screw ISO 10642 M5x20 Fe/Zn-B	Part #: 600209-B	Replaces: 600209-99-0	Price Reg. Price: $14.00
Ref # 85.1	Description SHCS ISO 4762 M5x12 8.8 Fe/Zn 5 C1/DIN 267-28-B	Part #: 615301-B	Replaces: 615301-99-0	Price Reg. Price: $14.00
Ref # 69.1	Description SHCS MC6S 8x 50 fzb-B	Part #: 600276-B	Replaces: 600276-99-0	Price Reg. Price: $14.00
Ref # 3.1	Description WASH BRB 6.4x12x1.5 fzb STD-W	Part #: 600238-W	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description WASH BRB 6.4x12x1.5 fzb STD-X	Part #: 600238-X	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 52.1	Description WASH BRB 6.4x12x1.5 fzb STD-Y	Part #: 600238-Y	Replaces: 600238	Price Reg. Price: $14.00
Ref # 79.1	Description WASH BRB 6.4x12x1.5 fzb STD-Z	Part #: 600238-Z	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 68.1	Description Washer ISO 7093-1 Fe/Zn 8-A	Part #: 612393-A	Replaces: 612393-99-0	Price Reg. Price: $14.00
Ref # 90.1	Description MAGNET HOLDER, AP-UNIT INCL MAGNET, CORPUS & VS-A	Part #: 1831840-A	Replaces: 1831840	Price Reg. Price: $17.00
Ref # 89.1	Description PINCH GUARD KIT, AP-UNIT-A	Part #: 1831289-A	Replaces: 1831289	Price Reg. Price: $32.00
Ref # 5.2	Description DRIVEBELT, AP-UNIT CORPUS/CORPUS VS, M1-A	Part #: 1831115-A	Replaces: 1831115	Price Reg. Price: $48.00
Ref # 19.1	Description SOFT STOP ASSEMBLY AP-UNIT, CORPUS,CORPUS VS-A	Part #: 1831009-A	Replaces: 1831009	Price Reg. Price: $71.00
Ref # 60.1	Description WEAR KIT, AP-UNIT CORPUS, CORPUS VS-A	Part #: 1831284-A	Replaces: 1831284	Price Reg. Price: $95.00
Ref # 2.1	Description MOTOR, FRONT, AP-UNIT CORPUS, CORPUS VS-A	Part #: 1831286-A	Replaces: 1831286	Price Reg. Price: $548.00
Ref # 41.2	Description ACTUATOR, AP-UNIT w/TEXTILE COVER-B	Part #: 1832839-B	Replaces: 1832839	Price Reg. Price: $701.00
Ref # 88.2	Description ACTUATOR, AP-UNIT w/TEXTILE COVER-C	Part #: 1832839-C	Replaces: 1832839	Price Reg. Price: $701.00
Ref # 74.1	Description AP-UNIT, FIXED, NO TILT CORPUS-A	Part #: 324107-A	Replaces: 1831372	Price Reg. Price: $2,366.00
Ref # 73.1	Description AP-UNIT MECHANISM, FOR TILT ONLY OPTION, CORPUS-A	Part #: 1831371-A	Replaces: 1831371	Price Reg. Price: $3,029.00
Ref # 75.1	Description AP-UNIT, CORPUS COMPLETE ASSY, INCL HDW-A	Part #: 1831280-A	Replaces: 1831280	Price Reg. Price: $4,729.00
