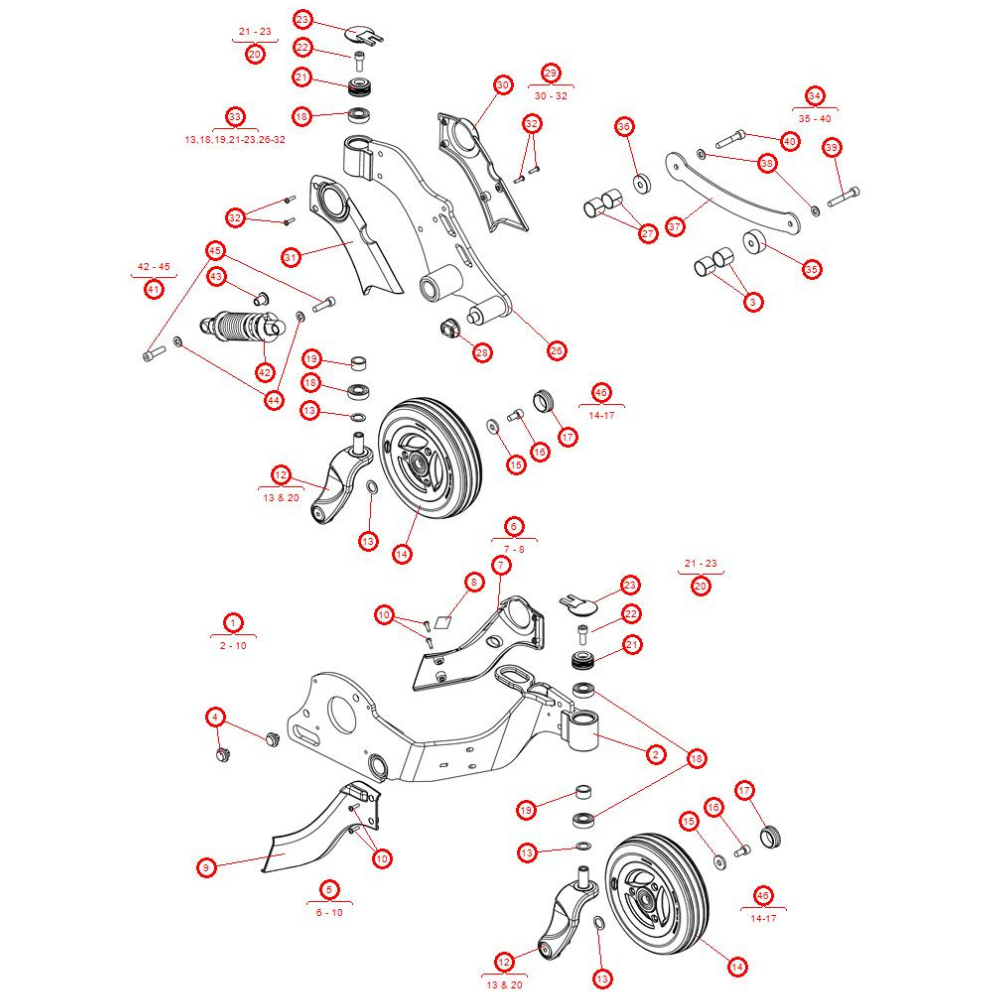

Swingarm - Left

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 18.1	Description BALL BEARING, SWINGARM AND WHEELS, EACH-T	Part #: 600752	Replaces: 600752-99-0	Price Reg. Price: $14.00
Ref # 45.1	Description BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-I	Part #: 601075	Replaces: 601075-99-0	Price Reg. Price: $14.00
Ref # 16.1	Description BOLT MC6S 8x16 fzb ESL 10.9 C1 ISO4762 DIN267-28-F	Part #: 613088	Replaces: 613088-99-0	Price Reg. Price: $14.00
Ref # 23.2	Description COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-K	Part #: 330833	Replaces: 1832866	Price Reg. Price: $14.00
Ref # 8.1	Description DECAL SET HOOKBRACKET C300 C350 C500 M300HD	Part #: 1820459	Replaces: 1820459	Price Reg. Price: $14.00
Ref # 17.1	Description PLAST PLUG SFL 35 300 350 500 K450 MWD M1-C	Part #: 601068	Replaces: 601068-00-0	Price Reg. Price: $14.00
Ref # 13.1	Description SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-S	Part #: 612383	Replaces: 1828317	Price Reg. Price: $14.00
Ref # 3.2	Description SLIDE BEARING 22/25x20SBT ***EACH	Part #: 612745	Replaces: 612745-99-0	Price Reg. Price: $14.00
Ref # 27.2	Description SLIDE BEARING 22/25x20SBT *EACH*-B	Part #: 612745	Replaces: 612745-99-0	Price Reg. Price: $14.00
Ref # 43.2	Description SOCKET, SHOCK/ FLEXLINK M3 M5 M1 F3 F5 M3/400 &HD-E	Part #: 331155	Replaces: 1833014	Price Reg. Price: $14.00
Ref # 19.2	Description SPACER O16xO22x12.5 CASTERS AND SWINGARM-O	Part #: 318410	Replaces: 1831010	Price Reg. Price: $14.00
Ref # 4.1	Description SPACER, FRONT SWINGARM M300 M400 M300HD, EACH	Part #: 1828899	Replaces: 1828899	Price Reg. Price: $14.00
Ref # 10.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-M	Part #: 613078	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 32.2	Description TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-O	Part #: 613078	Replaces: 1832880	Price Reg. Price: $14.00
Ref # 15.1	Description WASH 8.5x23x3 fzb-C	Part #: 305390	Replaces: 305390-99-0	Price Reg. Price: $14.00
Ref # 38.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-X	Part #: 600239	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 44.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-Y	Part #: 600239	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 20.1	Description FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-M	Part #: 333233	Replaces: 1834999	Price Reg. Price: $21.00
Ref # 34.1	Description REINFORCEMENT KIT M300 SWINGARM, HD	Part #: 321300	Replaces: 1828151	Price Reg. Price: $34.00
Ref # 5.1	Description COVERSET SWING ARM FRONT LEFT M300/M400,incl4screw	Part #: 1826687	Replaces: 1826687	Price Reg. Price: $49.00
Ref # 14.2	Description CASTER WHEEL 200x50 GRAY 8" SOLID, INCL HDW, MWD-B	Part #: 1826508	Replaces: 1826508	Price Reg. Price: $72.00
Ref # 46.1	Description CASTER WHEEL 200x50 GRAY 8" SOLID, INCL HDW, MWD-C	Part #: 1826508	Replaces: 1826508	Price Reg. Price: $72.00
Ref # 46.3	Description CASTER WHEEL,200x50 BLACK 8" SOLID,INCL HDW, MWD-A	Part #: 323769-99	Replaces: 1830674	Price Reg. Price: $72.00
Ref # 29.1	Description COVERSET SWING ARM REAR LEFT M300/M400,incl4screw	Part #: 1826683	Replaces: 1826683	Price Reg. Price: $95.00
Ref # 12.1	Description WHEEL FORK ALUMINUM, LEFT M300 M400 CORPUS & HD	Part #: 324235	Replaces: 1828315	Price Reg. Price: $118.00
Ref # 20.2	Description Anti-flutter v.3, adjustable-L	Part #: 339931	Replaces: NULL	Price Reg. Price: $141.54
Ref # 41.1	Description SHOCK ABSORBER CC 185mm. 300LBS/IN, M300HD CHASSIS	Part #: 322231	Replaces: 1829369	Price Reg. Price: $184.00
Ref # 1.1	Description SWING ARM LEFT FRONT COMPLETE, CORPUS HD	Part #: 320421	Replaces: 1828629	Price Reg. Price: $504.00
Ref # 33.2	Description SWING ARM ASSY LEFT REAR M300/M400 HD	Part #: 321408	Replaces: 1828330	Price Reg. Price: $516.00

Quick & Easy Checkout

Swingarm - Left

BALL BEARING, SWINGARM AND WHEELS, EACH-T

BOLT ESLOK 8x30 fzb drWH MI,2 MA,MWD HD,F5,M5-I

BOLT MC6S 8x16 fzb ESL 10.9 C1 ISO4762 DIN267-28-F

COVER, WHEELFORK/SWING ARM, EACH, M3 M5 M1 F3 F5-K

DECAL SET HOOKBRACKET C300 C350 C500 M300HD

PLAST PLUG SFL 35 300 350 500 K450 MWD M1-C

SHIM WASHER,WHEELFORK MWD WASHER DB15x22x1 DIN988-S

SLIDE BEARING 22/25x20SBT ***EACH

SLIDE BEARING 22/25x20SBT EACH-B

SOCKET, SHOCK/ FLEXLINK M3 M5 M1 F3 F5 M3/400 &HD-E

SPACER O16xO22x12.5 CASTERS AND SWINGARM-O

SPACER, FRONT SWINGARM M300 M400 M300HD, EACH

TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-M

TAPPING SCREW 4x16 Fe/Zn 5 C1 REMFORM-O

WASH 8.5x23x3 fzb-C

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-X

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-Y

FRICTION BRAKE,12 WASHER+ CAP&BOLT M1/3/5, F3/5 MWD-M

REINFORCEMENT KIT M300 SWINGARM, HD

COVERSET SWING ARM FRONT LEFT M300/M400,incl4screw

CASTER WHEEL 200x50 GRAY 8" SOLID, INCL HDW, MWD-B

CASTER WHEEL 200x50 GRAY 8" SOLID, INCL HDW, MWD-C

CASTER WHEEL,200x50 BLACK 8" SOLID,INCL HDW, MWD-A

COVERSET SWING ARM REAR LEFT M300/M400,incl4screw

WHEEL FORK ALUMINUM, LEFT M300 M400 CORPUS & HD

Anti-flutter v.3, adjustable-L

SHOCK ABSORBER CC 185mm. 300LBS/IN, M300HD CHASSIS

SWING ARM LEFT FRONT COMPLETE, CORPUS HD

SWING ARM ASSY LEFT REAR M300/M400 HD
