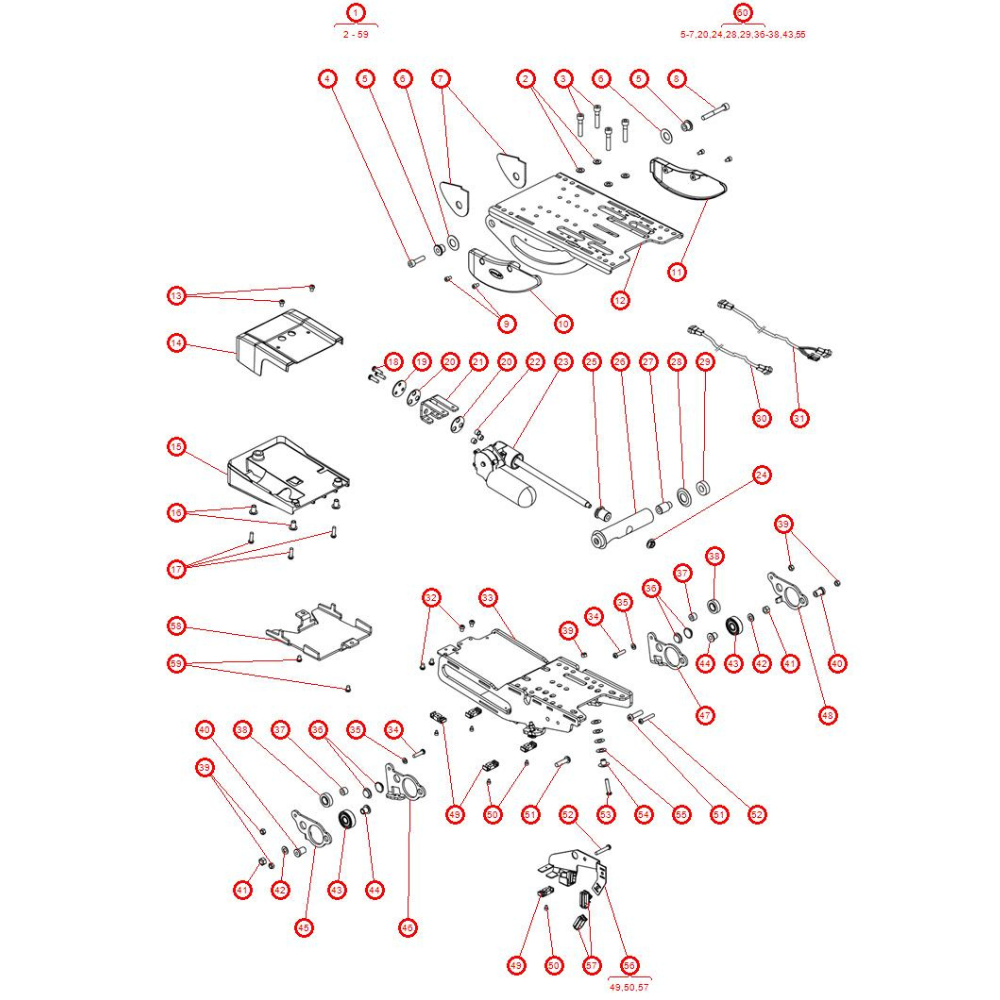

45° CG Tilt

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 52.1	Description BOLT 6x35 fzb 10.9 ISO 7380	Part #: 1827494	Replaces: 1827494	Price Reg. Price: $14.00
Ref # 17.1	Description BOLT K6S 6x20 fzb-B	Part #: 601370-B	Replaces: 601370-99-0	Price Reg. Price: $14.00
Ref # 18.1	Description BOLT K6S 6x20 fzb-C	Part #: 601370-C	Replaces: 601370-99-0	Price Reg. Price: $14.00
Ref # 34.1	Description BOLT K6S 6x25 fzb, BHCS 10.9 ISO 7380	Part #: 602367	Replaces: 602367-99-0	Price Reg. Price: $14.00
Ref # 50.1	Description BOLT MC6S 4x 5 fzb-B	Part #: 601282-B	Replaces: 601282-99-0	Price Reg. Price: $14.00
Ref # 9.1	Description BOLT MC6S 5x 8 fzb-O	Part #: 600188	Replaces: 600188-99-0	Price Reg. Price: $14.00
Ref # 3.1	Description BOLT MC6S 8x 40 fzb	Part #: 600274	Replaces: 600274-99-0	Price Reg. Price: $14.00
Ref # 8.1	Description BOLT MC6S 8x 60 fzb-B	Part #: 600719	Replaces: 600719-99-0	Price Reg. Price: $14.00
Ref # 57.1	Description CABLE CLIP 25x9, 50Â° CG TILT, EACH	Part #: 1826861	Replaces: 1826861	Price Reg. Price: $14.00
Ref # 11.1	Description COVER, CG SEAT TILT, LEFT C3G	Part #: 1825685	Replaces: 1825685	Price Reg. Price: $14.00
Ref # 55.1	Description CUP SPRING 20x10.2x0.5 C3G TILT	Part #: 601407	Replaces: 601407-99-0	Price Reg. Price: $14.00
Ref # 4.1	Description HEXAGON SOCKET HEAD BOLT MC6S 8x30 FZB	Part #: 600880	Replaces: 600880-99-0	Price Reg. Price: $14.00
Ref # 39.1	Description LOCK NUT M6 LOW fzb DIN985/ISO10511-W	Part #: 600227-W	Replaces: 600227-99-0	Price Reg. Price: $14.00
Ref # 41.1	Description NYLOCK NUT M8 ZINC PLATED-E	Part #: 600228-E	Replaces: 600228-99-0	Price Reg. Price: $14.00
Ref # 35.1	Description WASH BRB 6.4x12x1.5 fzb STD-CC	Part #: 600238-CC	Replaces: 600238-99-0	Price Reg. Price: $14.00
Ref # 42.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-U	Part #: 600239-U	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 2.1	Description WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-V	Part #: 600239	Replaces: 600239-99-0	Price Reg. Price: $14.00
Ref # 14.1	Description COVER, CG SEAT TILT, REAR UPPER, 50Â°PS/C3G, 45Â° HD	Part #: 1825687	Replaces: 1825687	Price Reg. Price: $17.00
Ref # 13.1	Description BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK	Part #: 613863	Replaces: 613863-99-0	Price Reg. Price: $29.00
Ref # 32.1	Description BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK-A	Part #: 613863-A	Replaces: 613863-99-0	Price Reg. Price: $29.00
Ref # 59.1	Description BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK-B	Part #: 613863-B	Replaces: 613863-99-0	Price Reg. Price: $29.00
Ref # 30.1	Description CABLE ICS EXTENSION 400mm FEMALE-FEMALE	Part #: 311668	Replaces: 1826757	Price Reg. Price: $30.00
Ref # 31.1	Description CABLE ICS EXTENSION, 1.5M 1.5 METER=4.9 FEET, C3G-A	Part #: 311655-A	Replaces: 1825539	Price Reg. Price: $41.00
Ref # 15.1	Description SQUEEZE GUARD COVER REAR TILT, C3G, HD, 50Â° MWD PS	Part #: 1825688	Replaces: 1825688	Price Reg. Price: $87.00
Ref # 60.1	Description WEAR KIT, SEAT TILT 50Â° CORPUS 3G/HD, PS	Part #: 1825673	Replaces: 1825673	Price Reg. Price: $781.00
Ref # 23.1	Description ACTUATOR, ICS TILT, 50Â° RE25, 170stroke, NO HDW	Part #: 1825405	Replaces: 1825405	Price Reg. Price: $900.00
Ref # 1.1	Description CG TILT MECHANISM, 45Â°, CORPUS HD	Part #: 1828823	Replaces: 1828823	Price Reg. Price: $4,353.44

Quick & Easy Checkout

45° CG Tilt

BOLT 6x35 fzb 10.9 ISO 7380

BOLT K6S 6x20 fzb-B

BOLT K6S 6x20 fzb-C

BOLT K6S 6x25 fzb, BHCS 10.9 ISO 7380

BOLT MC6S 4x 5 fzb-B

BOLT MC6S 5x 8 fzb-O

BOLT MC6S 8x 40 fzb

BOLT MC6S 8x 60 fzb-B

CABLE CLIP 25x9, 50Â° CG TILT, EACH

COVER, CG SEAT TILT, LEFT C3G

CUP SPRING 20x10.2x0.5 C3G TILT

HEXAGON SOCKET HEAD BOLT MC6S 8x30 FZB

LOCK NUT M6 LOW fzb DIN985/ISO10511-W

NYLOCK NUT M8 ZINC PLATED-E

WASH BRB 6.4x12x1.5 fzb STD-CC

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-U

WASH BRB 8.4x16x1.6 fzb STD - ZINC PLATED-V

COVER, CG SEAT TILT, REAR UPPER, 50Â°PS/C3G, 45Â° HD

BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK

BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK-A

BUTTON HEAD CAP SCREW ISO7380 M6x8 10.9 BLACK-B

CABLE ICS EXTENSION 400mm FEMALE-FEMALE

CABLE ICS EXTENSION, 1.5M 1.5 METER=4.9 FEET, C3G-A

SQUEEZE GUARD COVER REAR TILT, C3G, HD, 50Â° MWD PS

WEAR KIT, SEAT TILT 50Â° CORPUS 3G/HD, PS

ACTUATOR, ICS TILT, 50Â° RE25, 170stroke, NO HDW

CG TILT MECHANISM, 45Â°, CORPUS HD
