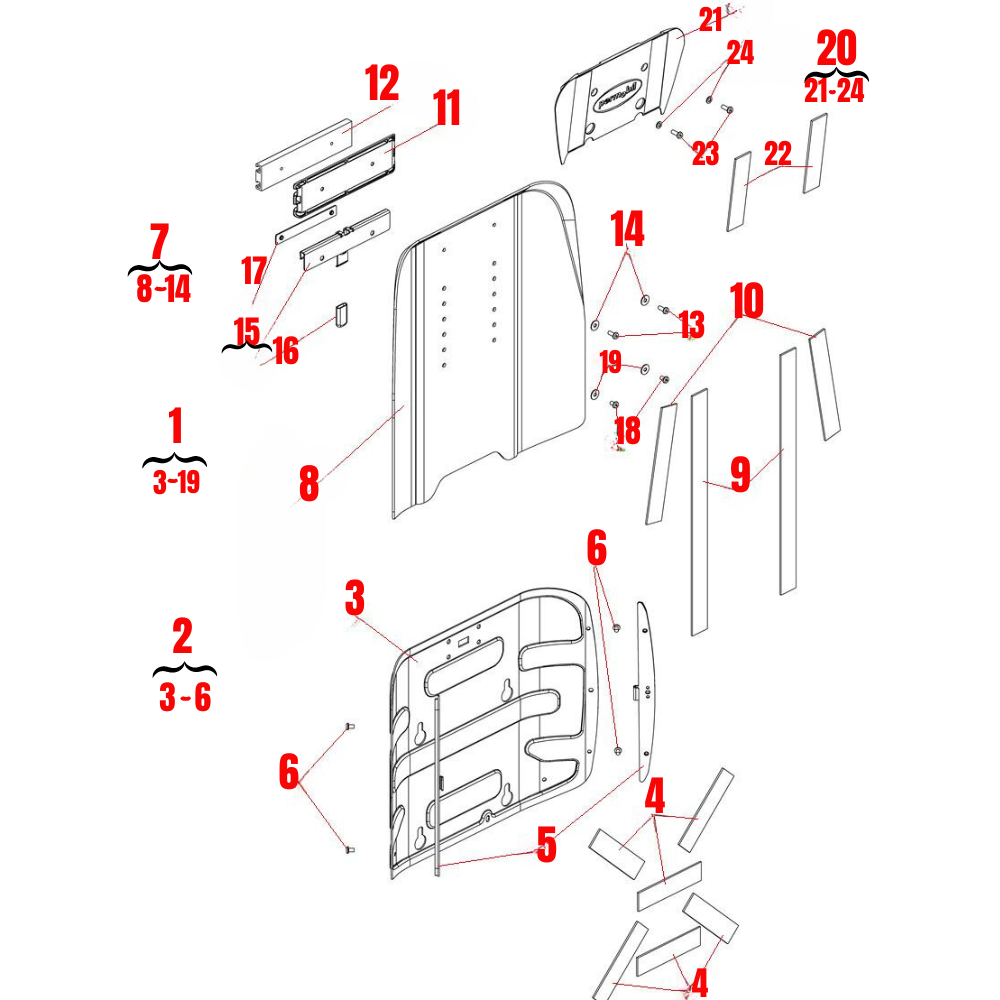

Backrest Plate

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # 13.1	Description BOLT M5 x 16mm BHCS ZINC PLATED-A	Part #: 601170-A	Replaces: 601170-99-0	Price Reg. Price: $14.00
Ref # 11.1	Description HOLDER, UT BRACKET, BACKR CORPUS/3G	Part #: 319304	Replaces: 1827697	Price Reg. Price: $14.00
Ref # 6.1	Description SHCS MC6S 5x10 fzb ISO 4762-A	Part #: 600189-A	Replaces: 600189-99-0	Price Reg. Price: $14.00
Ref # 5.1	Description BRACKET, ERGO, LOWER BACK EACH, CORPUS/3G/VS	Part #: 319646	Replaces: 1827696	Price Reg. Price: $19.76
Ref # 12.1	Description UNITRACK BAR 180mm. ALL CORPUS	Part #: 319305	Replaces: 1827698	Price Reg. Price: $22.88
Ref # 2.1	Description BACKREST LOWER, 14" W (360mm), CORPUS/3G	Part #: 319473	Replaces: 1826374	Price Reg. Price: $90.48
Ref # 2.2	Description BACKREST LOWER, 16" W (410mm), CORPUS/3G	Part #: 319474	Replaces: 1826376	Price Reg. Price: $96.72
Ref # 2.3	Description BACKREST LOWER, 18" W (460mm), CORPUS/3G	Part #: 319475	Replaces: 1826378	Price Reg. Price: $102.96
Ref # 2.4	Description BACKREST LOWER, 20" W (510mm), CORPUS/3G	Part #: 320895	Replaces: 1828742	Price Reg. Price: $108.16
Ref # 7.1	Description BACKREST UPPER, 14" W (360mm), CORPUS/3G/VS	Part #: 1826375	Replaces: 1826375	Price Reg. Price: $113.36
Ref # 7.2	Description BACKREST UPPER, 16" W (410mm), CORPUS/3G/VS	Part #: 1826377	Replaces: 1826377	Price Reg. Price: $120.64
Ref # 7.3	Description BACKREST UPPER, 18" W (460mm), CORPUS/3G/VS	Part #: 1826379	Replaces: 1826379	Price Reg. Price: $127.92
Ref # 7.4	Description BACKREST UPPER, 20" W (510mm), CORPUS/3G/VS	Part #: 1828743	Replaces: 1828743	Price Reg. Price: $135.20
Ref # 1.1	Description BACKREST KIT, 14"W,CORPUS HEIGHT ADJ,NO CUSHION	Part #: 319536	Replaces: 1827159	Price Reg. Price: $335.92
Ref # 1.2	Description BACKREST KIT 16"W,CORPUS HEIGHT ADJ,NO CUSHION	Part #: 319537	Replaces: 1827160	Price Reg. Price: $350.48
Ref # 1.3	Description BACKREST KIT 18",CORPUS HEIGHT ADJ,NO CUSHION	Part #: 319538	Replaces: 1827162	Price Reg. Price: $364.00
Ref # 1.4	Description BACKREST KIT 20"W,CORPUS HEIGHT ADJ,NO CUSHION	Part #: 320897	Replaces: 1828741	Price Reg. Price: $385.84

Quick & Easy Checkout

Backrest Plate

BOLT M5 x 16mm BHCS ZINC PLATED-A

HOLDER, UT BRACKET, BACKR CORPUS/3G

SHCS MC6S 5x10 fzb ISO 4762-A

BRACKET, ERGO, LOWER BACK EACH, CORPUS/3G/VS

UNITRACK BAR 180mm. ALL CORPUS

BACKREST LOWER, 14" W (360mm), CORPUS/3G

BACKREST LOWER, 16" W (410mm), CORPUS/3G

BACKREST LOWER, 18" W (460mm), CORPUS/3G

BACKREST LOWER, 20" W (510mm), CORPUS/3G

BACKREST UPPER, 14" W (360mm), CORPUS/3G/VS

BACKREST UPPER, 16" W (410mm), CORPUS/3G/VS

BACKREST UPPER, 18" W (460mm), CORPUS/3G/VS

BACKREST UPPER, 20" W (510mm), CORPUS/3G/VS

BACKREST KIT, 14"W,CORPUS HEIGHT ADJ,NO CUSHION

BACKREST KIT 16"W,CORPUS HEIGHT ADJ,NO CUSHION

BACKREST KIT 18",CORPUS HEIGHT ADJ,NO CUSHION

BACKREST KIT 20"W,CORPUS HEIGHT ADJ,NO CUSHION
