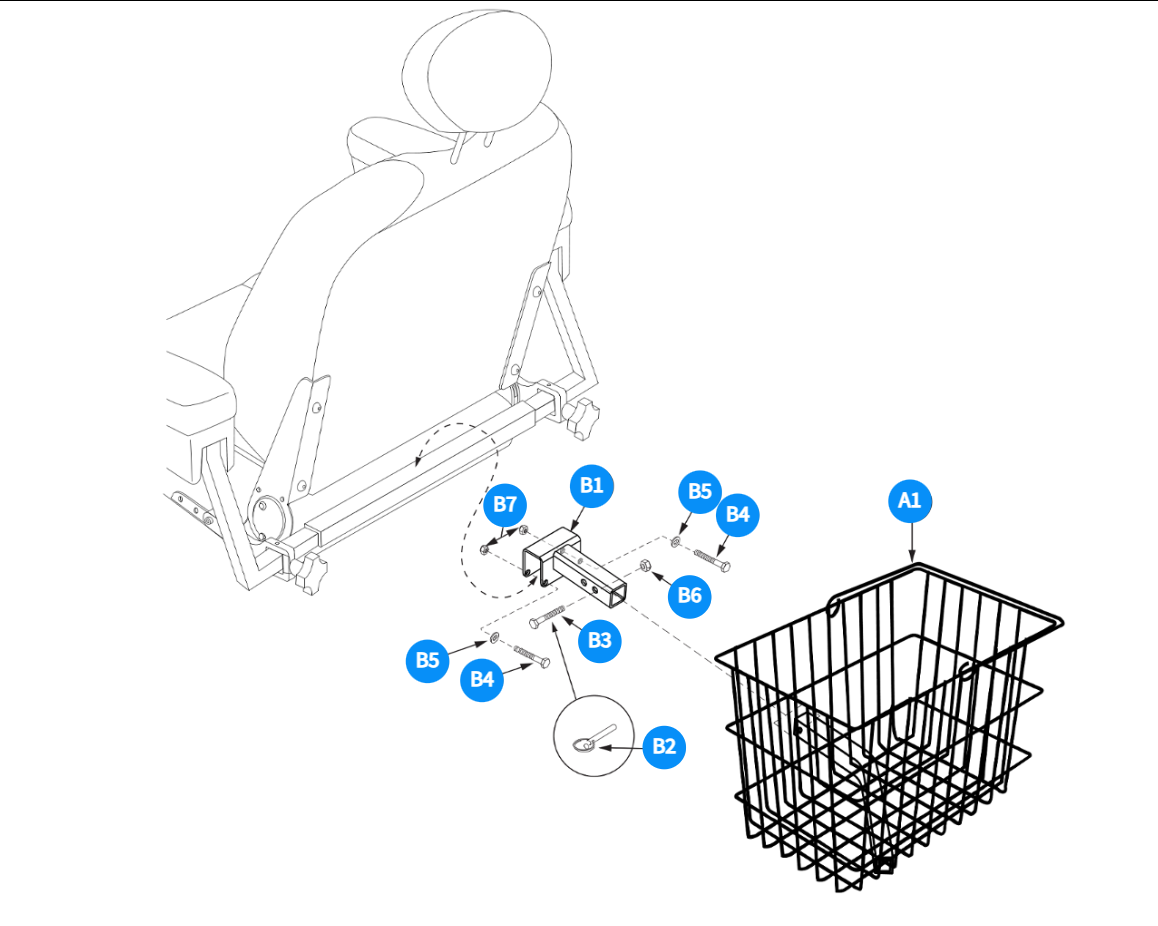

Rear Basket Assy-Ltd Recline, Hi-back Seat

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # B6	Description NUT, LOCK, .375-24, ASME B18.16.6, GR NE2, BZ, PVTP-D	Part #: NUTNYLK1035	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B3	Description SCREW, HEX HEAD, .375-24 X 1.75, PT, SAE J429, GR 5, BZ-D	Part #: SCRHHCS1072	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B5	Description WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ-A	Part #: WASSTND1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B7	Description NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP-A	Part #: NUTNYLK1026	Replaces:	Price Reg. Price: Starting At: $3.34
Ref # B2	Description PIN,COTTERLESS DETENT W/RING,.375" DIA X 2.00" GRIP LENGTH,B-1005-169-F	Part #: PINCOTD1006	Replaces:	Price Reg. Price: Starting At: $6.09
Ref # B1	Description MOUNTING BRACKET,ACCESSORY,LIMITED RECLINE SEAT,PHASE1,C-1000-250-A	Part #: DWR1000C250	Replaces:	Price Reg. Price: Starting At: $90.67
Ref # A1	Description BASKET,15 1/4'' X 9 3/4'',REAR, LARGE SQUARE,{LEG802},E-1000-098-C	Part #: ACCBSKT1004	Replaces:	Price Reg. Price: Starting At: $94.63
Ref # B1-B7	Description MOUNTING BRACKET,ACCESSORY,LIMITED RECLINE SEAT,PHASE1-A	Part #: FRMASMB3753	Replaces:	Price Reg. Price: Starting At: $101.93
Ref # A1-B7	Description BASKET,ASSY,REAR, W/ACCESSORY BRACKET,LTD RECLINE SEAT,PHASE 1B	Part #: ACCASMB1914	Replaces:	Price Reg. Price: Starting At: $164.80

gift guide

Quick & Easy Checkout

Rear Basket Assy-Ltd Recline, Hi-back Seat

NUT, LOCK, .375-24, ASME B18.16.6, GR NE2, BZ, PVTP-D

SCREW, HEX HEAD, .375-24 X 1.75, PT, SAE J429, GR 5, BZ-D

WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ-A

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP-A

PIN,COTTERLESS DETENT W/RING,.375" DIA X 2.00" GRIP LENGTH,B-1005-169-F

MOUNTING BRACKET,ACCESSORY,LIMITED RECLINE SEAT,PHASE1,C-1000-250-A

BASKET,15 1/4'' X 9 3/4'',REAR, LARGE SQUARE,{LEG802},E-1000-098-C

MOUNTING BRACKET,ACCESSORY,LIMITED RECLINE SEAT,PHASE1-A

BASKET,ASSY,REAR, W/ACCESSORY BRACKET,LTD RECLINE SEAT,PHASE 1B
