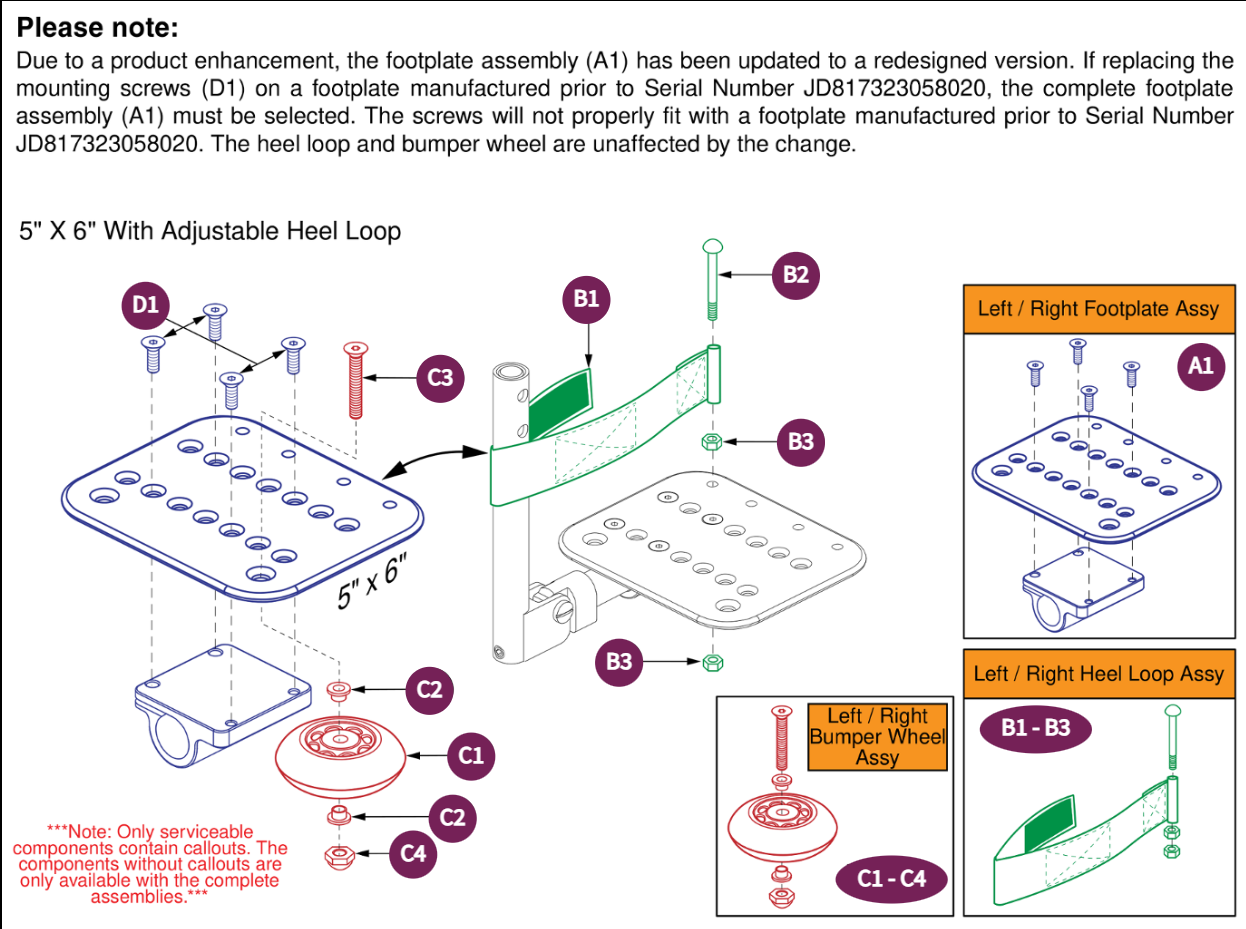

Angle Adj Footplate,5"x6" Style#7 SWA Style#12 ELR

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-A	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-A	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B3	Description NUT, HEX, M6X1, ISO 4032, BLK-B	Part #: NUTSTD1037	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-A	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SCREW, FLAT HEAD, M6X1.0 X 20, ISO 10642, CL 12.9, BZ, PVTP-B	Part #: HDW131752	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B2	Description SCREW,ROUND HEAD,BLACK ZINC,M6-1.0 X 70MM-B	Part #: SCRMISC1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1-C4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-A	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # C1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-A	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # B1	Description HEEL LOOP,2"W X 18"L X .0625"TH,ADJUSTABLE W/VELCRO-A	Part #: DWR1500D042	Replaces:	Price Reg. Price: Starting At: $31.60
Ref # B1-B3	Description HEEL LOOP,ASSY,2''W X 18''L,ADJUSTABLE W/VELCRO-A	Part #: FRMASMB6769	Replaces:	Price Reg. Price: Starting At: $33.17

gift guide

Quick & Easy Checkout

Angle Adj Footplate,5"x6" Style#7 SWA Style#12 ELR

BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-A

NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-A

NUT, HEX, M6X1, ISO 4032, BLK-B

SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-A

SCREW, FLAT HEAD, M6X1.0 X 20, ISO 10642, CL 12.9, BZ, PVTP-B

SCREW,ROUND HEAD,BLACK ZINC,M6-1.0 X 70MM-B

WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-A

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-A

HEEL LOOP,2"W X 18"L X .0625"TH,ADJUSTABLE W/VELCRO-A

HEEL LOOP,ASSY,2''W X 18''L,ADJUSTABLE W/VELCRO-A
