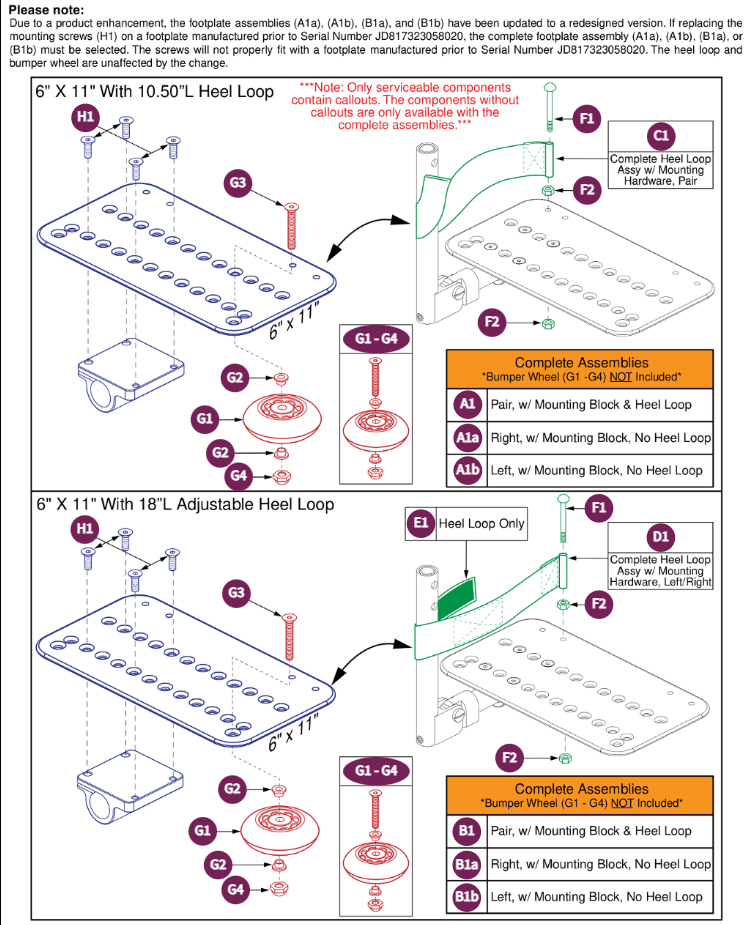

Angle Adj FootPlate,6"x 11"Style#7SWA Style#12 ELR

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # G4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-B	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # F2	Description NUT, HEX, M6X1, ISO 4032, BLK-C	Part #: NUTSTD1037	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-B	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H1	Description SCREW, FLAT HEAD, M6X1.0 X 20, ISO 10642, CL 12.9, BZ, PVTP-C	Part #: HDW131752	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # F1	Description SCREW,ROUND HEAD,BLACK ZINC,M6-1.0 X 70MM-C	Part #: SCRMISC1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1-G4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-B	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # G2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-B	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # G1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-B	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # E1	Description HEEL LOOP,2"W X 18"L X .0625"TH,ADJUSTABLE W/VELCRO-B	Part #: DWR1500D042	Replaces:	Price Reg. Price: Starting At: $31.60
Ref # D1	Description HEEL LOOP,ASSY,2''W X 18''L,ADJUSTABLE W/VELCRO-B	Part #: FRMASMB6769	Replaces:	Price Reg. Price: Starting At: $33.17
Ref # C1	Description HEEL LOOP,ASSY,10.50"LG,DOUBLE THICKNESS,W/HARDWARE,PAIR	Part #: FRMASMB1503	Replaces:	Price Reg. Price: Starting At: $50.46
Ref # A1b	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK,LEFT,C-1000-299	Part #: FRMASMB4742	Replaces:	Price Reg. Price: Starting At: $73.71
Ref # B1b	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK,LEFT,C-1000-299-A	Part #: FRMASMB4742	Replaces:	Price Reg. Price: Starting At: $73.71
Ref # A1a	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK,RIGHT,C-1000-298	Part #: FRMASMB4743	Replaces:	Price Reg. Price: Starting At: $73.71
Ref # B1a	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK,RIGHT,C-1000-298-A	Part #: FRMASMB4743	Replaces:	Price Reg. Price: Starting At: $73.71
Ref # B1	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK & ADJUSTABLE HEEL LOOPS,PAIR	Part #: FRMASMB6771	Replaces:	Price Reg. Price: Starting At: $234.55
Ref # A1	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,6" X 11",W/OFFSET MOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB4741	Replaces:	Price Reg. Price: Starting At: $332.06
