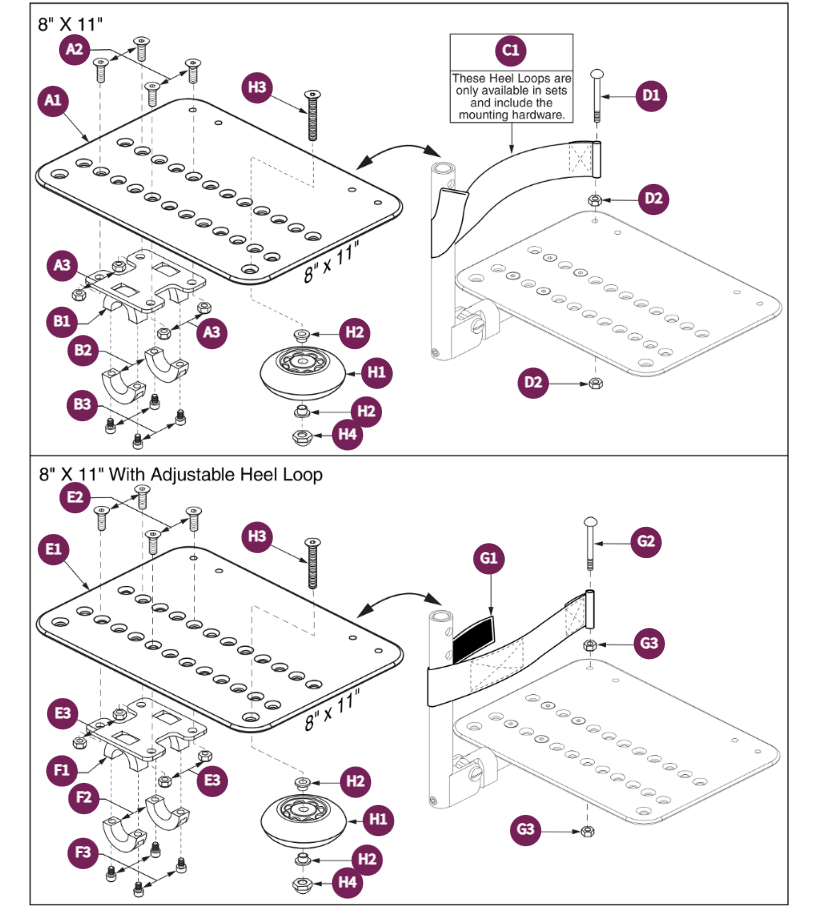

Angle Adj FootPlates,8"x 11"Style#7SWAStyle#12 ELR

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # H2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-D	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-D	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D2	Description NUT, HEX, M6X1, ISO 4032, BLK-E	Part #: NUTSTD1037	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G3	Description NUT, HEX, M6X1, ISO 4032, BLK-F	Part #: NUTSTD1037	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A3	Description NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP-F	Part #: NUTNYLK1014	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E3	Description NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP-G	Part #: NUTNYLK1014	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A2	Description SCREW, FLAT HEAD, 0.25-20 X 0.625, ASTM F835, BLK	Part #: SCRSHFH1034	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E2	Description SCREW, FLAT HEAD, 0.25-20 X 0.625, ASTM F835, BLK-A	Part #: SCRSHFH1034	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-D	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B3	Description SCREW, SOCKET HEAD, 0.25-28 X 0.625, ASTM A574, BLK	Part #: SCRSHCS1136	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # F3	Description SCREW, SOCKET HEAD, 0.25-28 X 0.625, ASTM A574, BLK-A	Part #: SCRSHCS1136	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SCREW,ROUND HEAD,BLACK ZINC,M6-1.0 X 70MM-E	Part #: SCRMISC1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G2	Description SCREW,ROUND HEAD,BLACK ZINC,M6-1.0 X 70MM-F	Part #: SCRMISC1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H1-H4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-D	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # H1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-D	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # G1	Description HEEL LOOP,2"W X 18"L X .0625"TH,ADJUSTABLE W/VELCRO-D	Part #: DWR1500D042	Replaces:	Price Reg. Price: Starting At: $31.60
Ref # G1-G3	Description HEEL LOOP,ASSY,2''W X 18''L,ADJUSTABLE W/VELCRO-D	Part #: FRMASMB6769	Replaces:	Price Reg. Price: Starting At: $33.17
Ref # C1	Description HEEL LOOP,ASSY,12"LG,DOUBLE THICKNESS,W/HARDWARE	Part #: FRMASMB2692	Replaces:	Price Reg. Price: Starting At: $50.47
Ref # A1	Description FOOTPLATE,8" X 11" ANGLE ADJUSTABLE,D-1000-106	Part #: DWR1000D106	Replaces:	Price Reg. Price: Starting At: $87.73
Ref # E1	Description FOOTPLATE,8" X 11" ANGLE ADJUSTABLE,D-1000-106-A	Part #: DWR1000D106	Replaces:	Price Reg. Price: Starting At: $87.73
Ref # B1-B3	Description MOUNTING BRACKET,FOOTPLATE,8" X 11" ANGLE ADJUSTABLE	Part #: FRMASMB4123	Replaces:	Price Reg. Price: Starting At: $94.63
Ref # F1-F3	Description MOUNTING BRACKET,FOOTPLATE,8" X 11" ANGLE ADJUSTABLE-A	Part #: FRMASMB4123	Replaces:	Price Reg. Price: Starting At: $94.63
Ref # A1-B3	Description FOOTPLATE,ANGLE ADJUSTABLE,8" X 11",W/HD MOUNTING PLATE,LEFT	Part #: FRMASMB4745	Replaces:	Price Reg. Price: Starting At: $159.70
Ref # E1-F3	Description FOOTPLATE,ANGLE ADJUSTABLE,8" X 11",W/HD MOUNTING PLATE,LEFT-A	Part #: FRMASMB4745	Replaces:	Price Reg. Price: Starting At: $159.70
Ref # A1-B3	Description FOOTPLATE,ANGLE ADJUSTABLE,8" X 11",W/HD MOUNTING PLATE,RIGHT	Part #: FRMASMB4746	Replaces:	Price Reg. Price: Starting At: $159.70
Ref # E1-F3	Description FOOTPLATE,ANGLE ADJUSTABLE,8" X 11",W/HD MOUNTING PLATE,RIGHT-A	Part #: FRMASMB4746	Replaces:	Price Reg. Price: Starting At: $159.70
Ref # A1-C1	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,8" X 11",W/OFFSETMOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB4744	Replaces:	Price Reg. Price: Starting At: $344.62
Ref # E1-G3	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,8" X 11",W/OFFSET MOUNTING BLOCK & ADJUSTABLE HEEL LOOPS,PAIR	Part #: FRMASMB6772	Replaces:	Price Reg. Price: Starting At: $449.92
