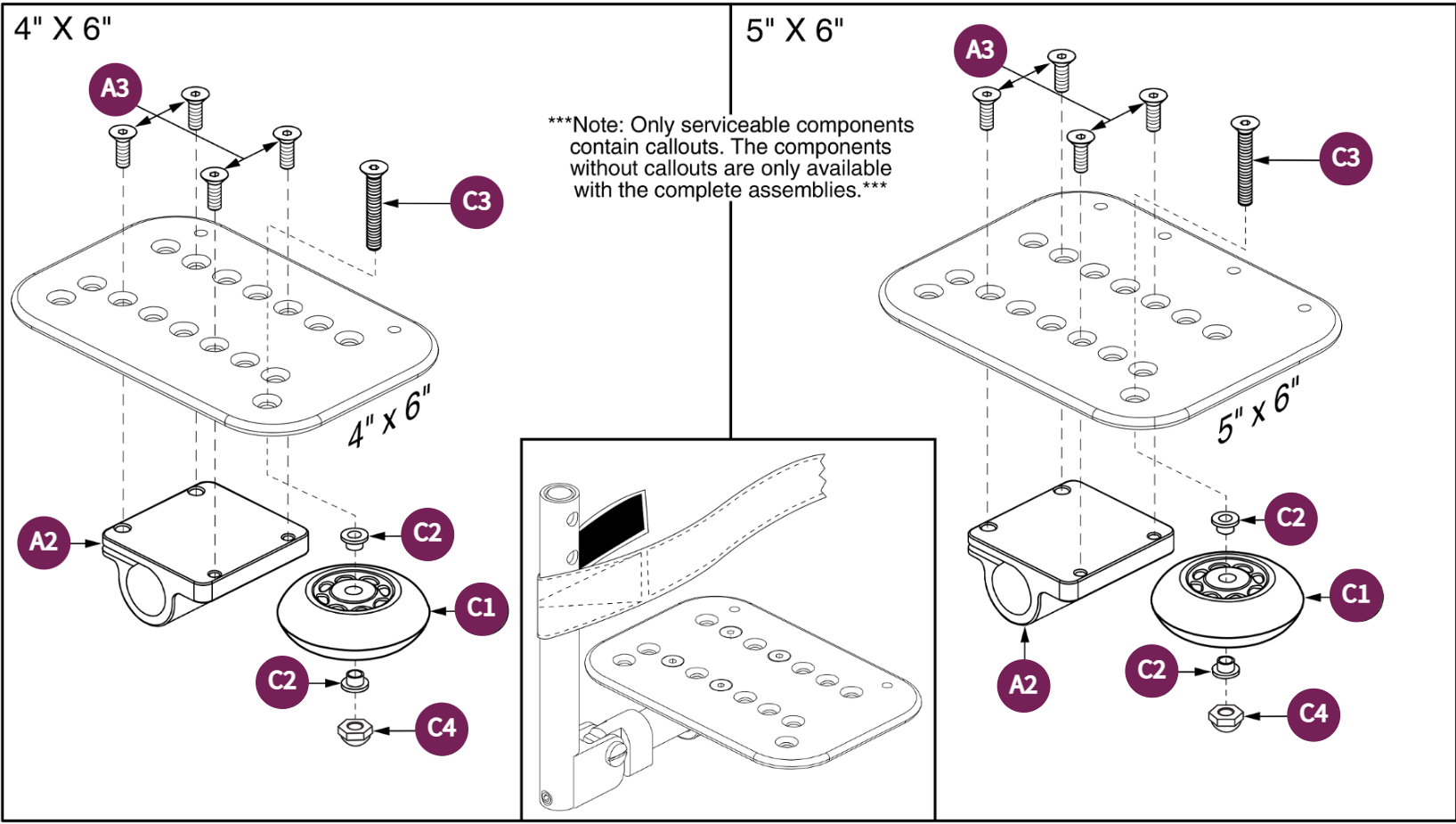

Pediatric AngleAdj footplate,4x6",5x6"#7SWA #12ELR

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-E	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-E	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-E	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A3	Description SCREW,SHFH,BLACK ZINC,1/4-20 X 0.75	Part #: SCRSHFH1010	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1-C4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-E	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # C1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-E	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # A2	Description MOUNTING BLOCK,PEDIATRIC ANGLE ADJUSTABLE FOOTPLATE	Part #: DWR1000C317	Replaces:	Price Reg. Price: Starting At: $60.22
Ref # A1b-A3	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,5" X 6",W/PEDIATRIC MOUNTING BLOCK,LEFT	Part #: FRMASMB5202	Replaces:	Price Reg. Price: Starting At: $103.23
Ref # A1b-A3	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,5" X 6",W/PEDIATRIC MOUNTING BLOCK,RIGHT,C-1000-324	Part #: FRMASMB5201	Replaces:	Price Reg. Price: Starting At: $108.40

gift guide

Quick & Easy Checkout

Pediatric AngleAdj footplate,4x6",5x6"#7SWA #12ELR

BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-E

NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-E

SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-E

SCREW,SHFH,BLACK ZINC,1/4-20 X 0.75

WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-E

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-E

MOUNTING BLOCK,PEDIATRIC ANGLE ADJUSTABLE FOOTPLATE

FOOTPLATE,ASSY,ANGLE ADJUSTABLE,5" X 6",W/PEDIATRIC MOUNTING BLOCK,LEFT

FOOTPLATE,ASSY,ANGLE ADJUSTABLE,5" X 6",W/PEDIATRIC MOUNTING BLOCK,RIGHT,C-1000-324
