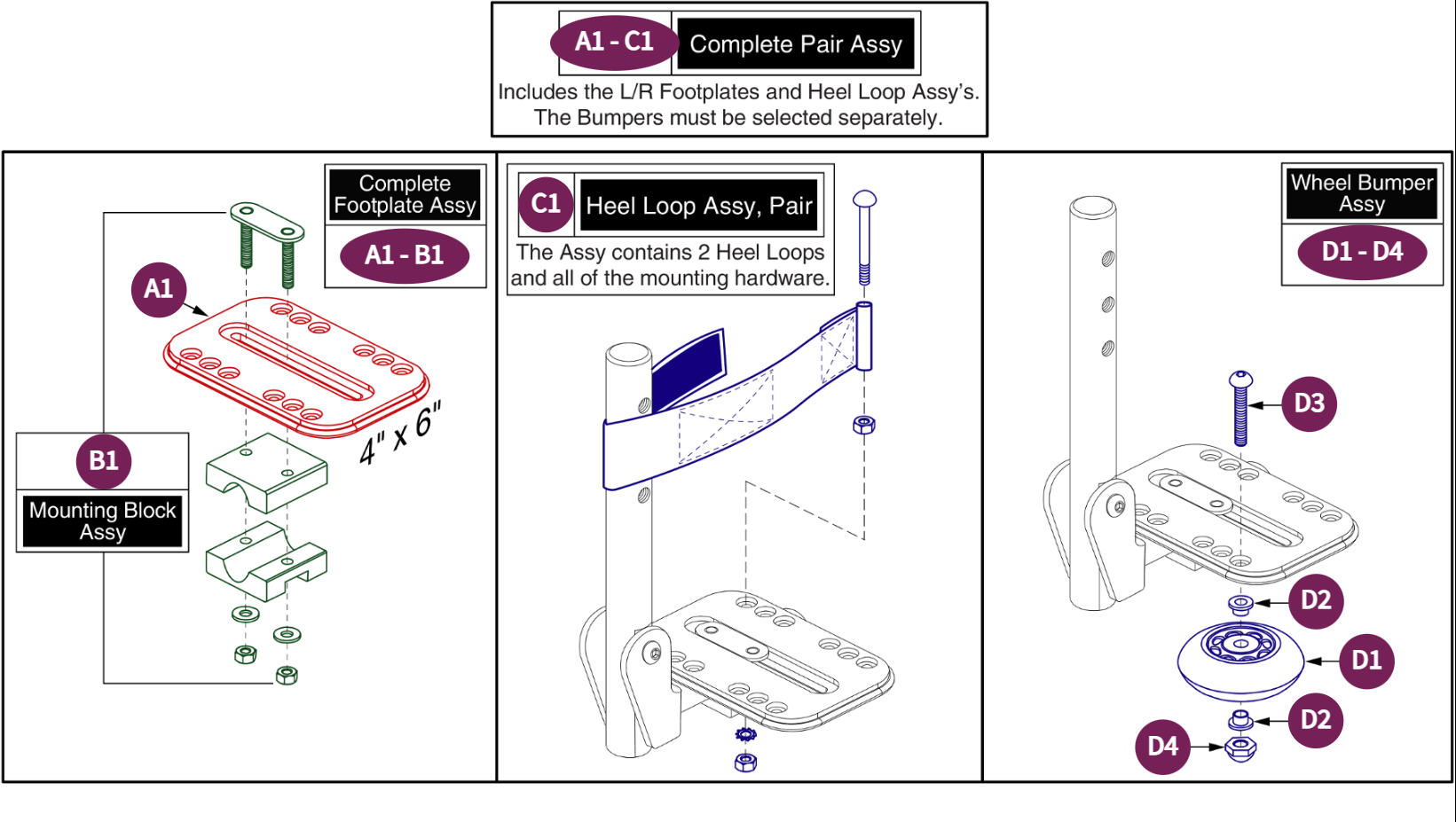

Angle Adj Foot Plate, 4"x6" - Style#8 Swing-away

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D3	Description SCREW,BHSCS,BLACK ZINC,1/4-20 X 1.50",GRADE 8	Part #: SCRASBH1095	Replaces:	Price Reg. Price: Starting At: $3.01
Ref # D2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-I	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-I	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-I	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # D1-D4	Description WHEEL,ASSY,BUMPER,PEDIATRIC,ANGLE ADJUSTABLE FOOTPLATE	Part #: WHL169508	Replaces:	Price Reg. Price: Starting At: $25.00
Ref # C1	Description HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR	Part #: FRMASMB7454	Replaces:	Price Reg. Price: Starting At: $37.46
Ref # B1	Description MOUNTING BLOCK,ASSY,0.875" ROUND,ANGLE ADJUSTABLE FOOTPLATE,C-1010-246	Part #: FRMASMB10007	Replaces:	Price Reg. Price: Starting At: $65.61
Ref # A1	Description PEDIATRIC FOOTPLATE,4" X 6",W/ MAT,D-1010-235	Part #: DWR1010D235	Replaces:	Price Reg. Price: Starting At: $134.55
Ref # A1-B1	Description FOOTPLATE,ASSY,4" X 6",W/MAT & 0.875" ROUND MOUNTING BLOCK,D-1010-286	Part #: FRMASMB10008	Replaces:	Price Reg. Price: Starting At: $209.72
Ref # A1-C1	Description FOOTPLATE,ASSY,ANGLE ADJUSTABLE,4" X 6",W/MAT & 0.875" ROUND MOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB10564	Replaces:	Price Reg. Price: Starting At: $976.24
