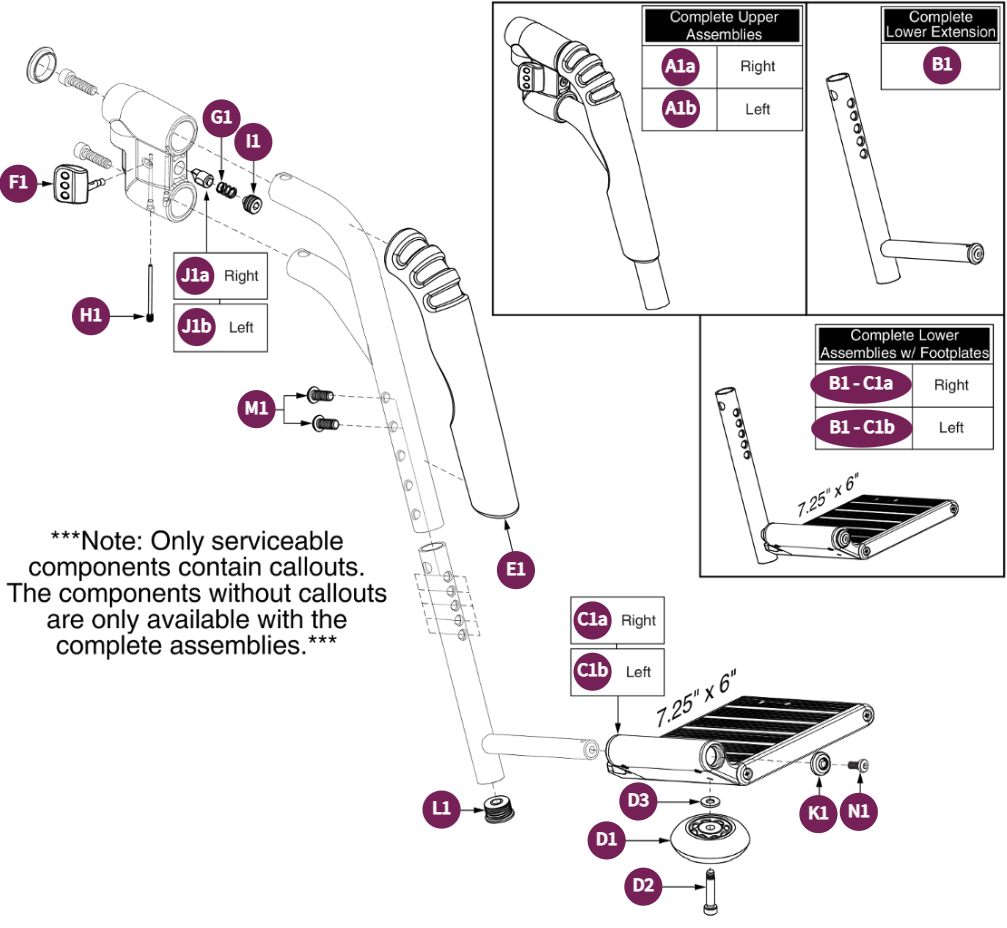

70°Style#8 Swing-away w/7.25"x6" Footplate

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # M1	Description SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-B	Part #: SCRASBH1177	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-A	Part #: SCRSETS1093	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-A	Part #: DWR1010B064	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-D	Part #: WASMETR1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # N1	Description SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH	Part #: SCRASBH1187	Replaces:	Price Reg. Price: Starting At: $3.07
Ref # D2	Description BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001	Part #: BLTASHL1091	Replaces:	Price Reg. Price: Starting At: $5.97
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-K	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # D1-D3	Description WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE	Part #: WHLASMB1727	Replaces:	Price Reg. Price: Starting At: $8.77
Ref # H1	Description SCREW,PIN,M5-.8,B-1010-066	Part #: DWR1010B066	Replaces:	Price Reg. Price: Starting At: $10.00
Ref # J1a	Description LATCH,DETENT,RIGHT,C-1010-135-A	Part #: DWR1010C135	Replaces:	Price Reg. Price: Starting At: $22.19
Ref # J1b	Description LATCH,DETENT,LEFT,C-1010-132	Part #: DWR1010C132	Replaces:	Price Reg. Price: Starting At: $22.83
Ref # B1	Description 13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT	Part #: FRMASMB7844	Replaces:	Price Reg. Price: Starting At: $32.60
Ref # E1	Description COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442	Part #: DWR1010E442	Replaces:	Price Reg. Price: Starting At: $38.00
Ref # F1	Description LEVER,MOLDED,B-1010-065	Part #: DWR1010B065	Replaces:	Price Reg. Price: Starting At: $39.30
Ref # C1a	Description FOOTPLATE,ASSY,7.25"X6.00",EXTRUDED,RIGHT,E-1010-383	Part #: FRMASMB7862	Replaces:	Price Reg. Price: Starting At: $52.44
Ref # C1b	Description FOOTPLATE,ASSY,7.25" X 6.00",EXTRUDED,LEFT,E-1010-379	Part #: FRMASMB7861	Replaces:	Price Reg. Price: Starting At: $53.48
Ref # A1a	Description FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,RIGHT,E-1010-386	Part #: FRMASMB7854	Replaces:	Price Reg. Price: Starting At: $83.76
Ref # A1b	Description FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,LEFT,E-1010-376	Part #: FRMASMB7853	Replaces:	Price Reg. Price: Starting At: $83.78

gift guide

Quick & Easy Checkout

70°Style#8 Swing-away w/7.25"x6" Footplate

SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-B

SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-A

SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-A

WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-D

SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH

BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-K

WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE

SCREW,PIN,M5-.8,B-1010-066

LATCH,DETENT,RIGHT,C-1010-135-A

LATCH,DETENT,LEFT,C-1010-132

13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT

COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442

LEVER,MOLDED,B-1010-065

FOOTPLATE,ASSY,7.25"X6.00",EXTRUDED,RIGHT,E-1010-383

FOOTPLATE,ASSY,7.25" X 6.00",EXTRUDED,LEFT,E-1010-379

FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,RIGHT,E-1010-386

FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,LEFT,E-1010-376
