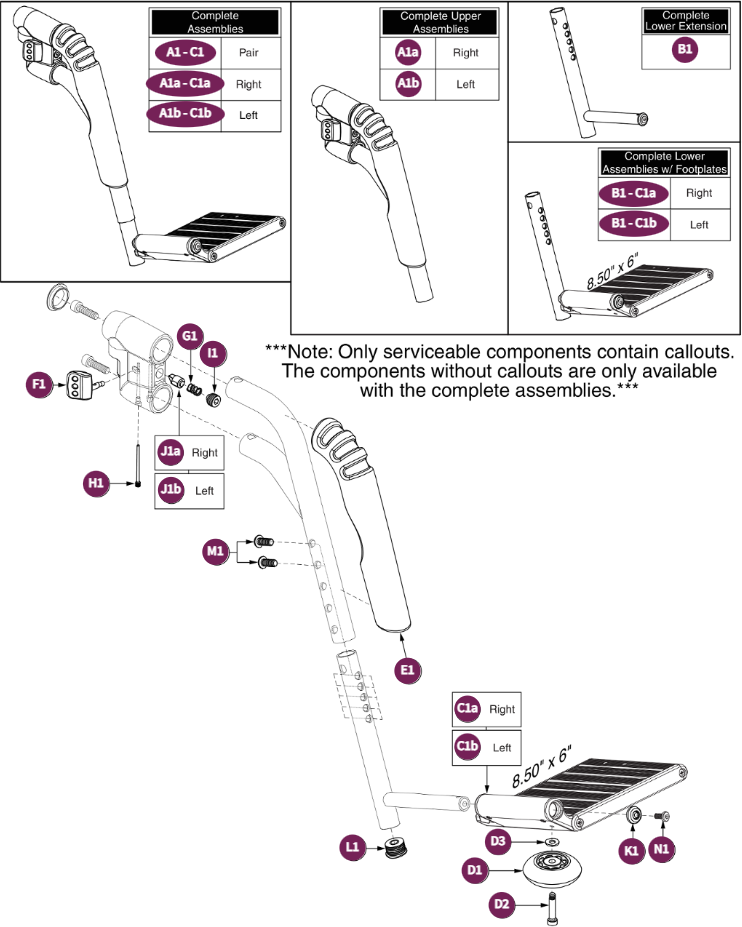

70°Style#8 Swing-away w/8.5"x6" Footplate

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # M1	Description SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-C	Part #: SCRASBH1177	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-B	Part #: SCRSETS1093	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-B	Part #: DWR1010B064	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-E	Part #: WASMETR1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # N1	Description SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH-A	Part #: SCRASBH1187	Replaces:	Price Reg. Price: Starting At: $3.07
Ref # D2	Description BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001-A	Part #: BLTASHL109	Replaces:	Price Reg. Price: Starting At: $5.97
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-L	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # D1-D3	Description WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE-A	Part #: WHLASMB1727	Replaces:	Price Reg. Price: Starting At: $8.77
Ref # H1	Description SCREW,PIN,M5-.8,B-1010-066-A	Part #: DWR1010B066	Replaces:	Price Reg. Price: Starting At: $10.00
Ref # J1a	Description LATCH,DETENT,RIGHT,C-1010-135-B	Part #: DWR1010C135	Replaces:	Price Reg. Price: Starting At: $22.19
Ref # J1b	Description LATCH,DETENT,LEFT,C-1010-132-A	Part #: DWR1010C132	Replaces:	Price Reg. Price: Starting At: $22.83
Ref # B1	Description 13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT-A	Part #: FRMASMB7844	Replaces:	Price Reg. Price: Starting At: $32.60
Ref # E1	Description COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442-A	Part #: DWR1010E442	Replaces:	Price Reg. Price: Starting At: $38.00
Ref # F1	Description LEVER,MOLDED,B-1010-065-A	Part #: DWR1010B065	Replaces:	Price Reg. Price: Starting At: $39.30
Ref # A1a	Description FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,RIGHT,E-1010-386-A	Part #: FRMASMB7854	Replaces:	Price Reg. Price: Starting At: $83.76
Ref # A1b	Description FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,LEFT,E-1010-376-A	Part #: FRMASMB7853	Replaces:	Price Reg. Price: Starting At: $83.78
Ref # C1b	Description FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,LEFT,E-1010-413	Part #: FRMASMB7863	Replaces:	Price Reg. Price: Starting At: $103.23
Ref # C1a	Description FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,RIGHT,E-1010-410	Part #: FRMASMB7864	Replaces:	Price Reg. Price: Starting At: $103.23
Ref # B1-C1b	Description FOOTREST,ASSY,S/A #8,LOWER EXTENSION,13"-16.5",W/8.50 X 6.00" FOOTPLATE,LEFT,E-1010-402	Part #: FRMASMB7859	Replaces:	Price Reg. Price: Starting At: $137.25

Quick & Easy Checkout

70°Style#8 Swing-away w/8.5"x6" Footplate

SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-C

SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-B

SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-B

WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-E

SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH-A

BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001-A

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-L

WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE-A

SCREW,PIN,M5-.8,B-1010-066-A

LATCH,DETENT,RIGHT,C-1010-135-B

LATCH,DETENT,LEFT,C-1010-132-A

13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT-A

COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442-A

LEVER,MOLDED,B-1010-065-A

FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,RIGHT,E-1010-386-A

FOOTREST,ASSY,70° S/A #8 UPPER,STRAIGHT,LEFT,E-1010-376-A

FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,LEFT,E-1010-413

FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,RIGHT,E-1010-410

FOOTREST,ASSY,S/A #8,LOWER EXTENSION,13"-16.5",W/8.50 X 6.00" FOOTPLATE,LEFT,E-1010-402
