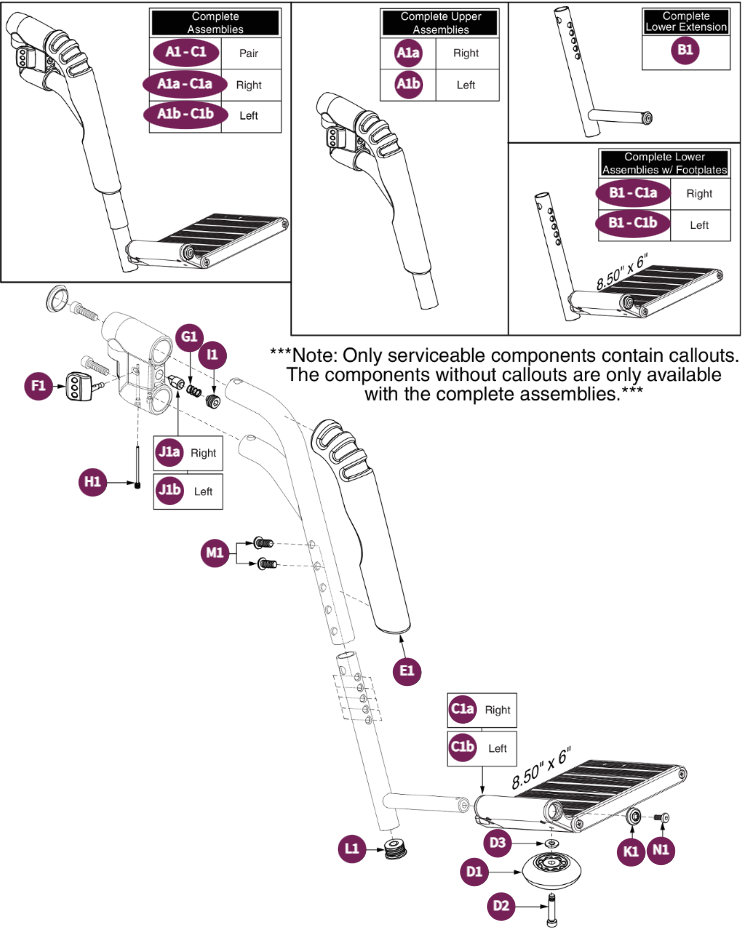

80°Style#8 Swing-away w/8.5"x6" Footplate

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # M1	Description SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-D	Part #: SCRASBH1177	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # I1	Description SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-C	Part #: SCRSETS1093	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-C	Part #: DWR1010B064	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-F	Part #: WASMETR1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # N1	Description SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH-B	Part #: SCRASBH1187	Replaces:	Price Reg. Price: Starting At: $3.07
Ref # D2	Description BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001-B	Part #: BLTASHL1091	Replaces:	Price Reg. Price: Starting At: $5.97
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-M	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # D1-D3	Description WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE-B	Part #: WHLASMB1727	Replaces:	Price Reg. Price: Starting At: $8.77
Ref # H1	Description SCREW,PIN,M5-.8,B-1010-066-B	Part #: DWR1010B066	Replaces:	Price Reg. Price: Starting At: $10.00
Ref # E1	Description COVER,FOAM,80° S/A #8,STRAIGHT,E-1010-443	Part #: DWR1010E443	Replaces:	Price Reg. Price: Starting At: $13.01
Ref # J1a	Description LATCH,DETENT,RIGHT,C-1010-135-C	Part #: DWR1010C135	Replaces:	Price Reg. Price: Starting At: $22.19
Ref # J1b	Description LATCH,DETENT,LEFT,C-1010-132-B	Part #: DWR1010C132	Replaces:	Price Reg. Price: Starting At: $22.83
Ref # B1	Description 13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT-B	Part #: FRMASMB7844	Replaces:	Price Reg. Price: Starting At: $32.60
Ref # F1	Description LEVER,MOLDED,B-1010-065-B	Part #: DWR1010B065	Replaces:	Price Reg. Price: Starting At: $39.30
Ref # C1b	Description FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,LEFT,E-1010-413-A	Part #: FRMASMB7863	Replaces:	Price Reg. Price: Starting At: $103.23
Ref # C1a	Description FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,RIGHT,E-1010-410-A	Part #: FRMASMB7864	Replaces:	Price Reg. Price: Starting At: $103.23
Ref # B1-C1b	Description FOOTREST,ASSY,S/A #8,LOWER EXTENSION,13"-16.5",W/8.50 X 6.00" FOOTPLATE,LEFT,E-1010-402-A	Part #: FRMASMB7859	Replaces:	Price Reg. Price: Starting At: $137.25

Quick & Easy Checkout

80°Style#8 Swing-away w/8.5"x6" Footplate

SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-D

SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-C

SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-C

WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ-F

SCREW,BHSCS,BLACK ZINC,M4-.7 X 10MM,W/NYLON PATCH-B

BOLT,SHOULDER,8MM X 30MM,GRADE 12.9,C-1005-001-B

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-M

WHEEL,ASSY,BUMPER,S/A #8 EXTRUDED FOOTPLATE-B

SCREW,PIN,M5-.8,B-1010-066-B

COVER,FOAM,80° S/A #8,STRAIGHT,E-1010-443

LATCH,DETENT,RIGHT,C-1010-135-C

LATCH,DETENT,LEFT,C-1010-132-B

13"-16.5" LOWER EXTENSION, S/A #8, STANDARD LEFT / RIGHT-B

LEVER,MOLDED,B-1010-065-B

FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,LEFT,E-1010-413-A

FOOTPLATE,ASSY,8.50" X 6.00",EXTRUDED,RIGHT,E-1010-410-A

FOOTREST,ASSY,S/A #8,LOWER EXTENSION,13"-16.5",W/8.50 X 6.00" FOOTPLATE,LEFT,E-1010-402-A
