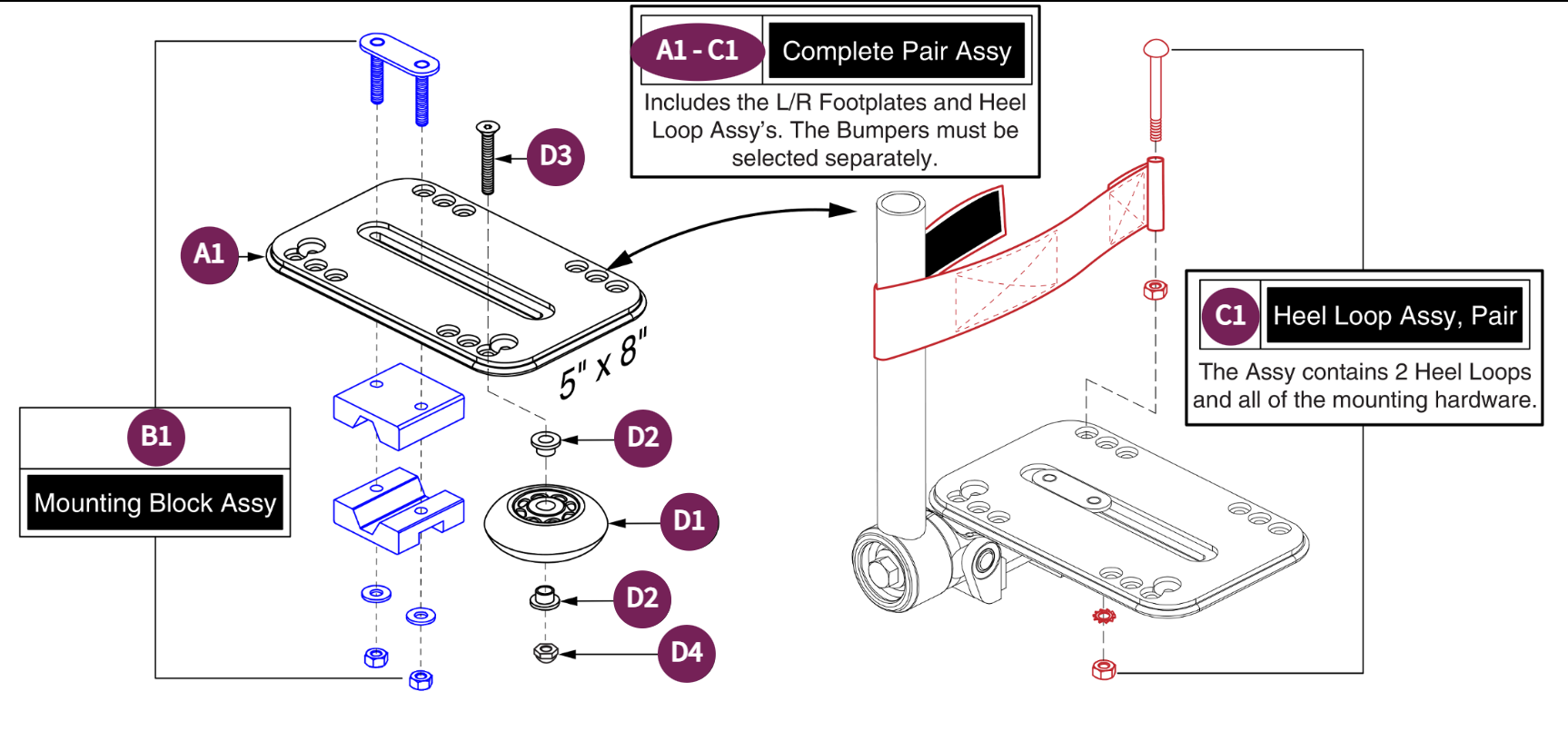

Style#8 Multi-axis Footplate, 5" x 8"

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-M	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-M	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-K	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1-D4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-K	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-P	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # C1	Description HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR-H	Part #: FRMASMB7454	Replaces:	Price Reg. Price: Starting At: $37.46
Ref # A1	Description FOOTPLATE,5" X 8",W/MAT,D-1010-247-A	Part #: DWR1010D247	Replaces:	Price Reg. Price: Starting At: $97.20
Ref # B1	Description MOUNTING BLOCK,ASSY,FOOTPLATE,C-1010-188-B	Part #: FRMASMB9174	Replaces:	Price Reg. Price: Starting At: $116.32
Ref # A1-B1	Description FOOTPLATE,ASSY,5" X 8",W/MAT & MOUNTING BLOCK,D-1010-248	Part #: FRMASMB9179	Replaces:	Price Reg. Price: Starting At: $207.91
Ref # A1-C1	Description FOOTPLATE,ASSY,MULTI-AXIS,5" X 8",W/MAT,MOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB9458	Replaces:	Price Reg. Price: Starting At: $479.69
