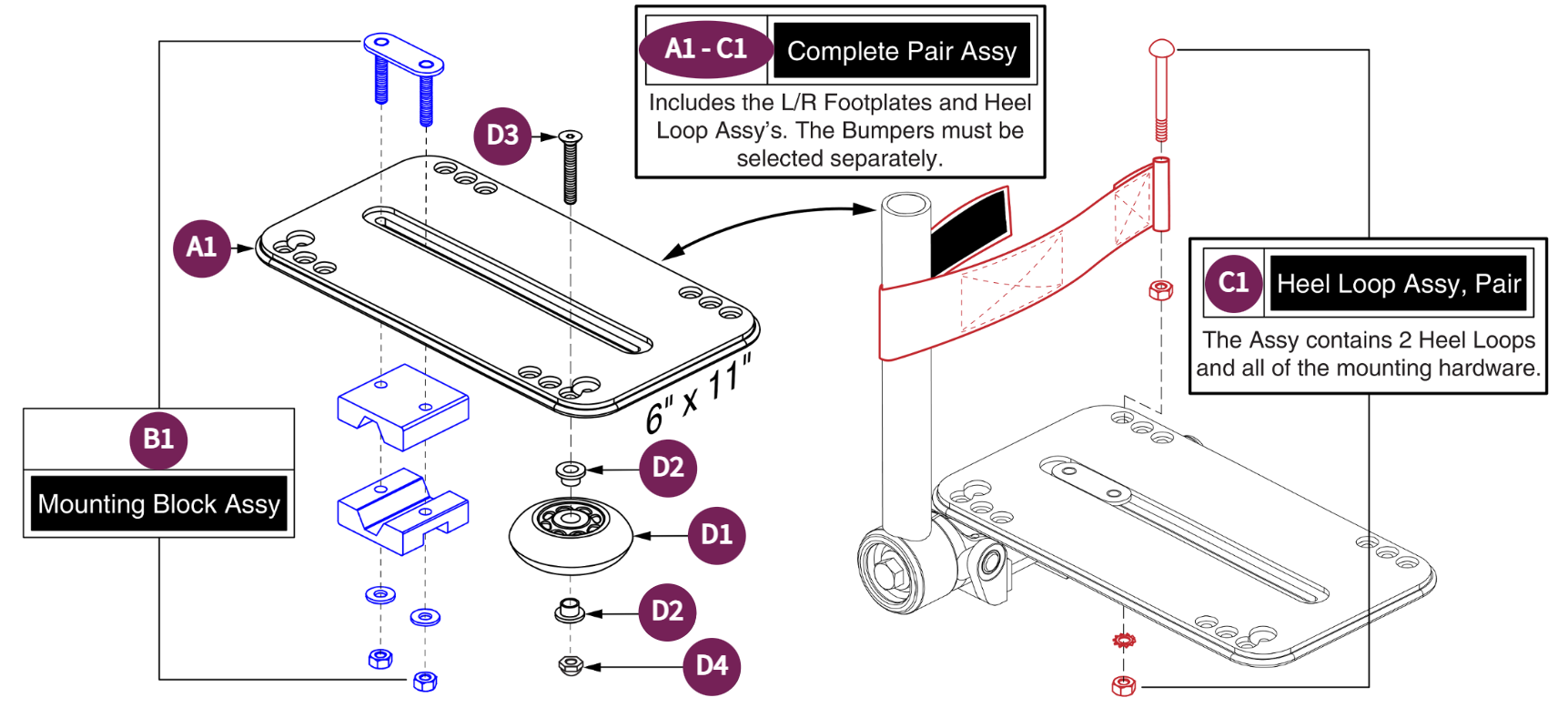

Style#8 Multi-axis Footplate, 6" x 11"

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-O	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-O	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-M	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1-D4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-M	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-R	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # C1	Description HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR-J	Part #: FRMASMB7454	Replaces:	Price Reg. Price: Starting At: $37.46
Ref # B1	Description MOUNTING BLOCK,ASSY,FOOTPLATE,C-1010-188-D	Part #: FRMASMB9174	Replaces:	Price Reg. Price: Starting At: $116.32
Ref # A1	Description FOOTPLATE,6" X 11",W/MAT,D-1010-250-A	Part #: DWR1010D250	Replaces:	Price Reg. Price: Starting At: $144.62
Ref # A1-B1	Description FOOTPLATE,ASSY,6" X 11",W/MAT & MOUNTING BLOCK,D-1010-249	Part #: FRMASMB9181	Replaces:	Price Reg. Price: Starting At: $251.34
Ref # A1-C1	Description FOOTPLATE,ASSY,MULTI-AXIS,6" X 11",W/MAT,MOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB9460	Replaces:	Price Reg. Price: Starting At: $1,069.50

gift guide

Quick & Easy Checkout

Style#8 Multi-axis Footplate, 6" x 11"

BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-O

NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-O

SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-M

WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-M

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-R

HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR-J

MOUNTING BLOCK,ASSY,FOOTPLATE,C-1010-188-D

FOOTPLATE,6" X 11",W/MAT,D-1010-250-A

FOOTPLATE,ASSY,6" X 11",W/MAT & MOUNTING BLOCK,D-1010-249

FOOTPLATE,ASSY,MULTI-AXIS,6" X 11",W/MAT,MOUNTING BLOCK & HEEL LOOPS,PAIR
