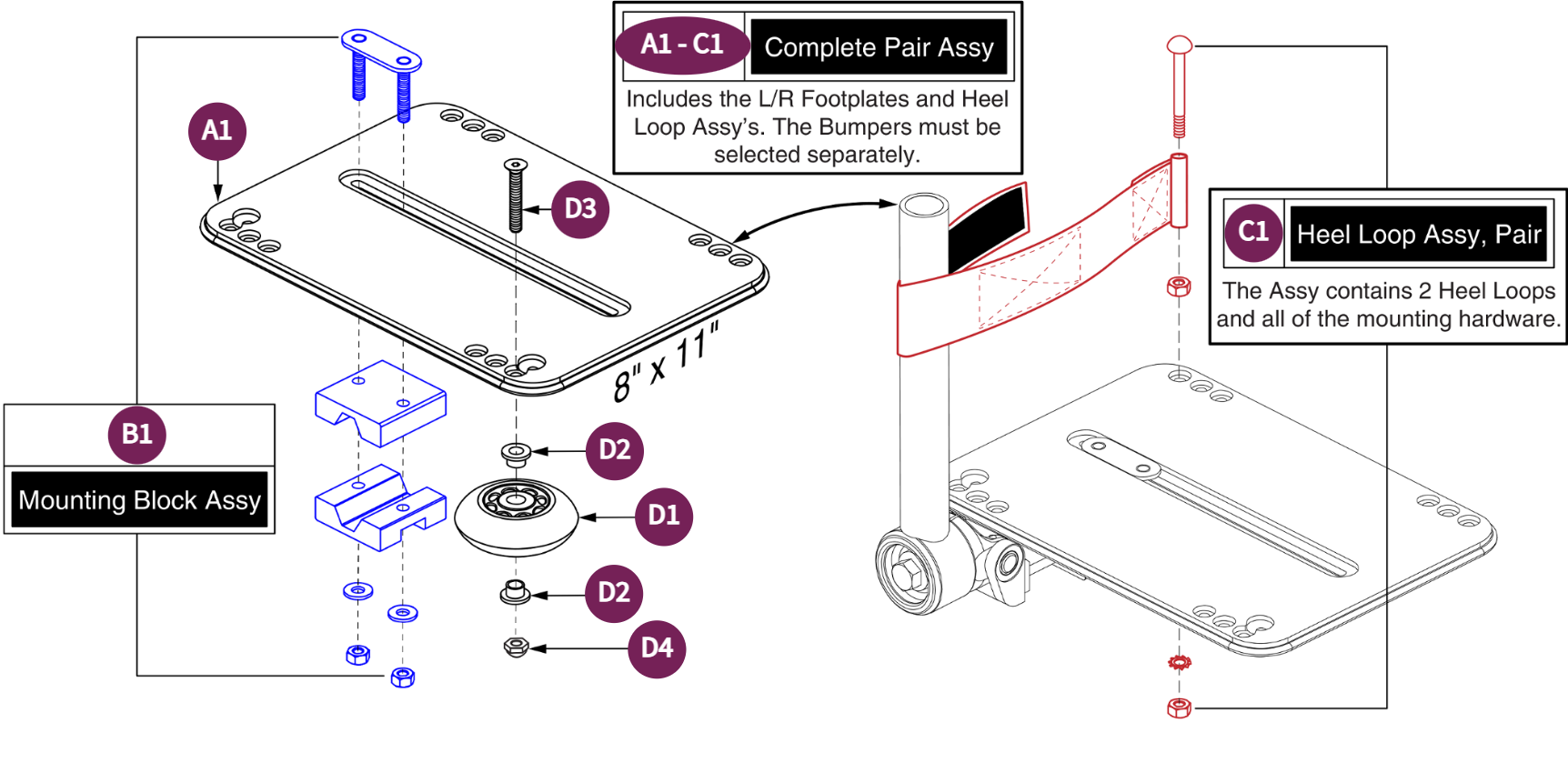

Style#8 Multi-axis Footplate, 8" x 11"

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D2	Description BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-P	Part #: BSHNYLN1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D4	Description NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-P	Part #: NUTACRN1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D3	Description SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-N	Part #: SCRSHFH1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1-D4	Description WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-N	Part #: WHLASMB1578	Replaces:	Price Reg. Price: Starting At: $6.53
Ref # D1	Description WHEEL,ANTI-TIP,BLACK,3" DIAMETER-S	Part #: WHLATIP1004	Replaces:	Price Reg. Price: Starting At: $7.96
Ref # C1	Description HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR-K	Part #: FRMASMB7454	Replaces:	Price Reg. Price: Starting At: $37.46
Ref # B1	Description MOUNTING BLOCK,ASSY,FOOTPLATE,C-1010-188-E	Part #: FRMASMB9174	Replaces:	Price Reg. Price: Starting At: $116.32
Ref # A1	Description FOOTPLATE,8" X 11",W/MAT,E-1010-614-A	Part #: DWR1010E614	Replaces:	Price Reg. Price: Starting At: $216.30
Ref # A1-C1	Description FOOTPLATE,ASSY,MULTI-AXIS,8" X 11",W/MAT,MOUNTING BLOCK & HEEL LOOPS,PAIR	Part #: FRMASMB9461	Replaces:	Price Reg. Price: Starting At: $418.20

gift guide

Quick & Easy Checkout

Style#8 Multi-axis Footplate, 8" x 11"

BUSHING, FLANGE,WHITE,NYLON,0.260''ID X 0.312''OD X 0.4375''TH X 0.513'' FOD X 0.0625''FTH,(MICRO PLASTICS:10SC250037)-P

NUT, CAP, .250-20 X .250 THD DEPTH, SAE J995, GR 5, ZINC, PVTP-P

SCREW, FLAT HEAD, 0.25-20 X 1.50, ASTM F835, BLK-N

WHEEL,ASSY,BUMPER,ANGLE ADJUSTABLE FOOTPLATE-N

WHEEL,ANTI-TIP,BLACK,3" DIAMETER-S

HEEL LOOP,ASSY,16.87"L,ADJUSTABLE,W/HARDWARE,PAIR-K

MOUNTING BLOCK,ASSY,FOOTPLATE,C-1010-188-E

FOOTPLATE,8" X 11",W/MAT,E-1010-614-A

FOOTPLATE,ASSY,MULTI-AXIS,8" X 11",W/MAT,MOUNTING BLOCK & HEEL LOOPS,PAIR
