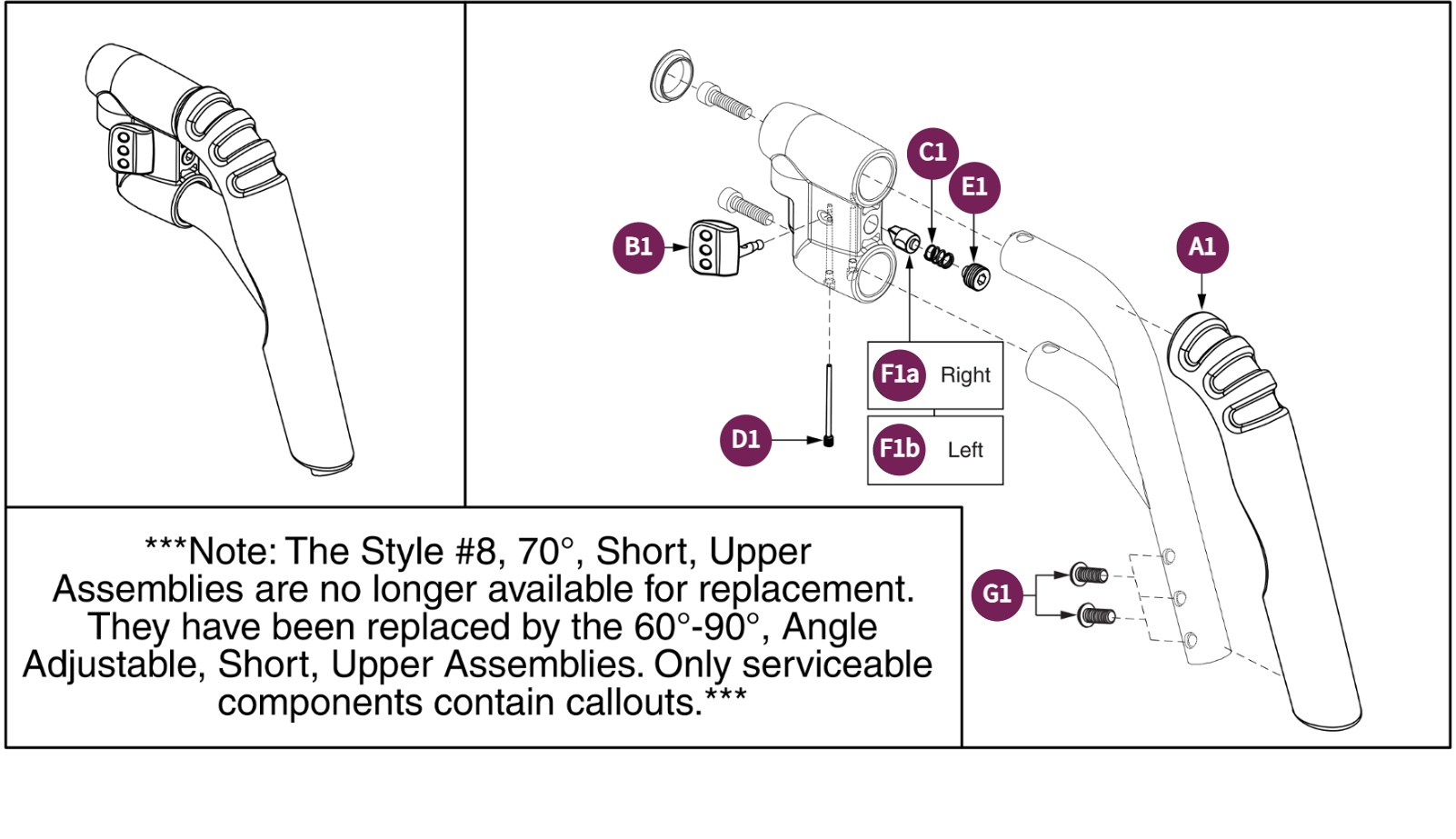

70° Style#8 Swing-away Short Straight Upper

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # G1	Description SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-L	Part #: SCRASBH1177	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E1	Description SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-H	Part #: SCRSETS1093	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-H	Part #: DWR1010B064	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SCREW,PIN,M5-.8,B-1010-066-G	Part #: DWR1010B066	Replaces:	Price Reg. Price: Starting At: $10.00
Ref # F1a	Description LATCH,DETENT,RIGHT,C-1010-135-H	Part #: DWR1010C135	Replaces:	Price Reg. Price: Starting At: $22.19
Ref # F1b	Description LATCH,DETENT,LEFT,C-1010-132-G	Part #: DWR1010C132	Replaces:	Price Reg. Price: Starting At: $22.83
Ref # A1	Description COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442-B	Part #: DWR1010E442	Replaces:	Price Reg. Price: Starting At: $38.00
Ref # B1	Description LEVER,MOLDED,B-1010-065-G	Part #: DWR1010B065	Replaces:	Price Reg. Price: Starting At: $39.30

gift guide

Quick & Easy Checkout

70° Style#8 Swing-away Short Straight Upper

SCREW, BUTTON HEAD, .3125-18 X .75, ASTM F835, BZ, PVTP-L

SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-H

SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-H

SCREW,PIN,M5-.8,B-1010-066-G

LATCH,DETENT,RIGHT,C-1010-135-H

LATCH,DETENT,LEFT,C-1010-132-G

COVER,FOAM,70° S/A #8,STRAIGHT,E-1010-442-B

LEVER,MOLDED,B-1010-065-G
