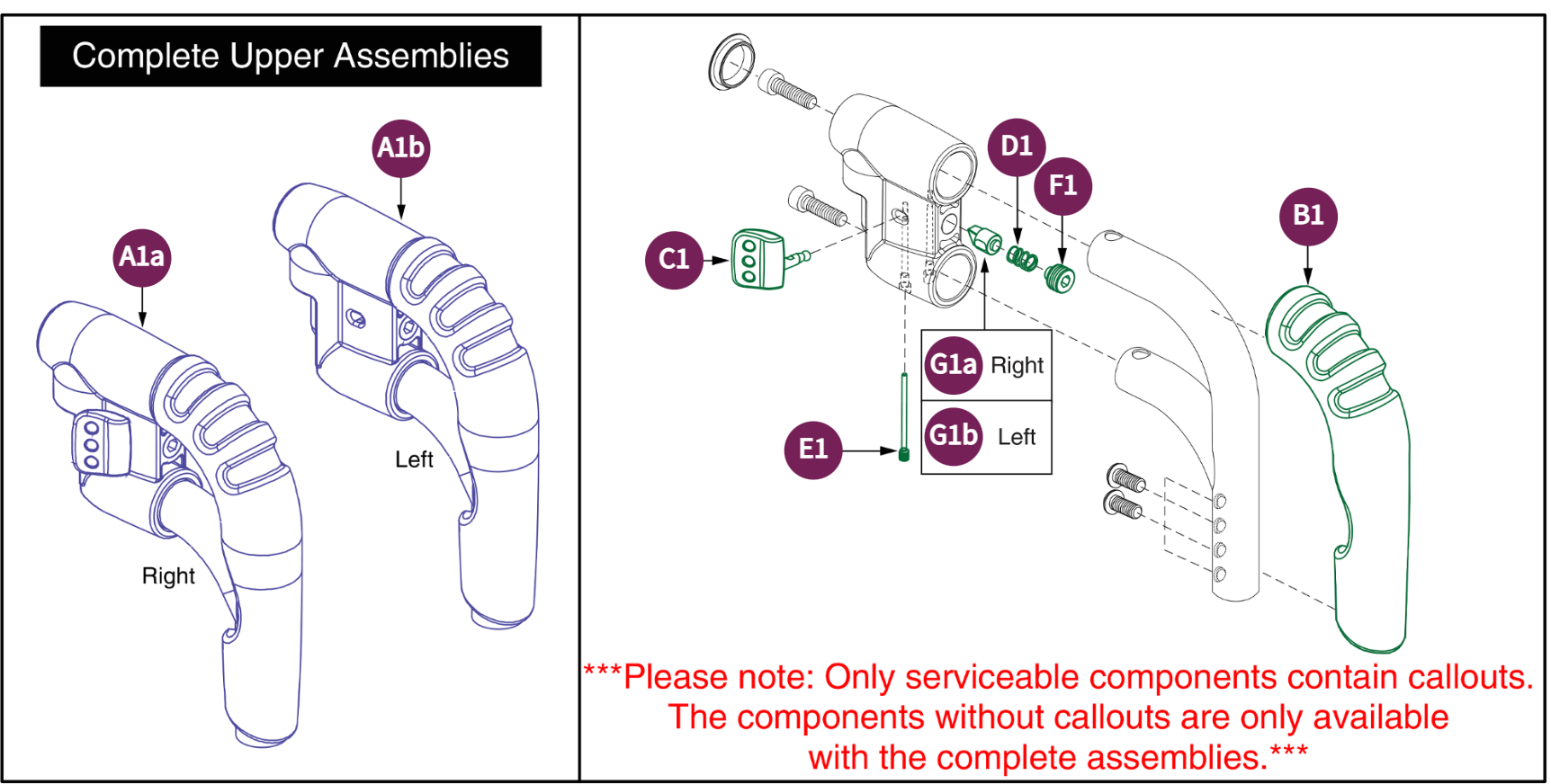

90° Style#8 Swing-away Pediatric Upper

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # F1	Description SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-L	Part #: SCRSETS1093	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-L	Part #: DWR1010B064	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E1	Description SCREW,PIN,M5-.8,B-1010-066-K	Part #: DWR1010B066	Replaces:	Price Reg. Price: Starting At: $10.00
Ref # B1	Description COVER,FOAM,90° PEDIATRIC S/A #8,E-1010-594	Part #: DWR1010E594	Replaces:	Price Reg. Price: Starting At: $12.64
Ref # G1a	Description LATCH,DETENT,RIGHT,C-1010-135-L	Part #: DWR1010C135	Replaces:	Price Reg. Price: Starting At: $22.19
Ref # G1b	Description LATCH,DETENT,LEFT,C-1010-132-K	Part #: DWR1010C132	Replaces:	Price Reg. Price: Starting At: $22.83
Ref # C1	Description LEVER,MOLDED,B-1010-065-K	Part #: DWR1010B065	Replaces:	Price Reg. Price: Starting At: $39.30
Ref # A1b	Description LEGREST,ASSY,PEDIATRIC S/A # 8,90°,UPPER,LEFT,D-1010-237	Part #: FRMASMB8809	Replaces:	Price Reg. Price: Starting At: $198.22
Ref # A1a	Description LEGREST,ASSY,PEDIATRIC S/A # 8,90°,UPPER,RIGHT,D-1010-238	Part #: FRMASMB8810	Replaces:	Price Reg. Price: Starting At: $198.22

gift guide

Quick & Easy Checkout

90° Style#8 Swing-away Pediatric Upper

SCREW,SET,BLACK ZINC,M14-1.5 X 12MM,HALF DOG POINT-L

SPRING,COMPRESSION,0.563" FL X 0.360" OD X 0.032" WIRE DIA X RATE: 2.328N/MM,B-1010-064,(LEE SPRING: LC-032E-2-M)-L

SCREW,PIN,M5-.8,B-1010-066-K

COVER,FOAM,90° PEDIATRIC S/A #8,E-1010-594

LATCH,DETENT,RIGHT,C-1010-135-L

LATCH,DETENT,LEFT,C-1010-132-K

LEVER,MOLDED,B-1010-065-K

LEGREST,ASSY,PEDIATRIC S/A # 8,90°,UPPER,LEFT,D-1010-237

LEGREST,ASSY,PEDIATRIC S/A # 8,90°,UPPER,RIGHT,D-1010-238
