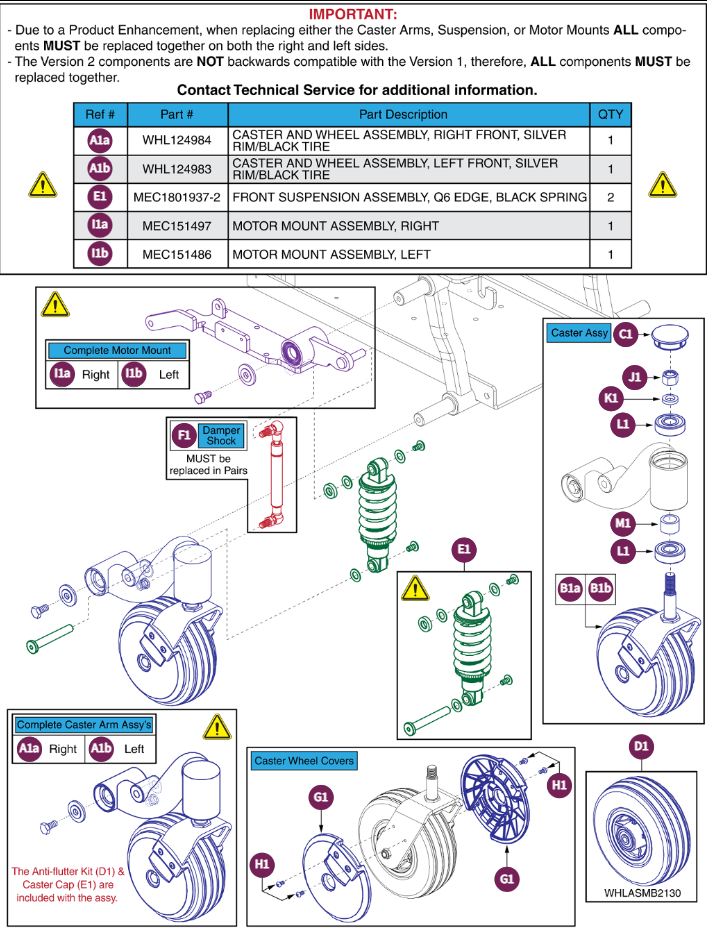

Front Caster Arm & Front Susp. Assy, V2 J600ES

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # J1	Description NUT, HEX, LOCK, .50-20, ASME B18.16.6, BZ, PVTP	Part #: NUTNYLK1010	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # H1	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-O	Part #: SCRPPH1036	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description SHROUD,COVER,CAP,CASTER,BLACK-A	Part #: DWR1065C008	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # G1	Description COVER,CASTER SPHERE,BLACK,6" WHEEL,THIN,LOW PROFILE,D-1202-044-B	Part #: DWR1202D044	Replaces:	Price Reg. Price: Starting At: $15.66
Ref # D1	Description WHEEL,ASSY,LOW IMPACT,SILVER RIM/BLACK TIRE,6" X 2",W/BEARINGS & SPACER,E-1202-039-A	Part #: WHLASMB2131	Replaces:	Price Reg. Price: Starting At: $39.59
Ref # F1	Description DAMPER ASMB, 100 LB FORCE, COMPRESSION ONLY-B	Part #: DWR1062C058	Replaces:	Price Reg. Price: Starting At: $46.06
Ref # E1	Description FRONT SUSPENSION ASSEMBLY, Q6 EDGE, BLACK SPRING (DRAWING #: 1801937	Part #: MEC1801937-2	Replaces:	Price Reg. Price: Starting At: $74.38
Ref # I1B	Description MOTOR MOUNT ASSEMBLY, LEFT-A	Part #: MEC151486	Replaces:	Price Reg. Price: Starting At: $76.38
Ref # I1a	Description MOTOR MOUNT ASSEMBLY, RIGHT-A	Part #: MEC151497	Replaces:	Price Reg. Price: Starting At: $76.38
Ref # B1b	Description CASTER,ASSY,LOW IMPACT,SILVER RIM/BLACK TIRE,6" WHEEL,W/FORK & COVERS,LEFT,W/RADIUS,D-1202-047-A	Part #: CASASMB7120005	Replaces:	Price Reg. Price: Starting At: $104.79
Ref # B1a	Description CASTER,ASSY,LOW IMPACT,SILVER RIM/BLACK TIRE,6" WHEEL,W/FORK & COVERS,RIGHT,W/RADIUS,D-1202-048-A	Part #: CASASMB7120009	Replaces:	Price Reg. Price: Starting At: $104.79
Ref # A1b	Description CASTER AND WHEEL ASSEMBLY, LEFT FRONT, SILVER RIM/BLACK TIRE (SEE DRAWING 154782	Part #: WHL124983	Replaces:	Price Reg. Price: Starting At: $190.68
Ref # A1a	Description CASTER AND WHEEL ASSEMBLY, RIGHT FRONT, SILVER RIM/BLACK TIRE (SEE DRAWING 154785	Part #: WHL124984	Replaces:	Price Reg. Price: Starting At: $190.68
