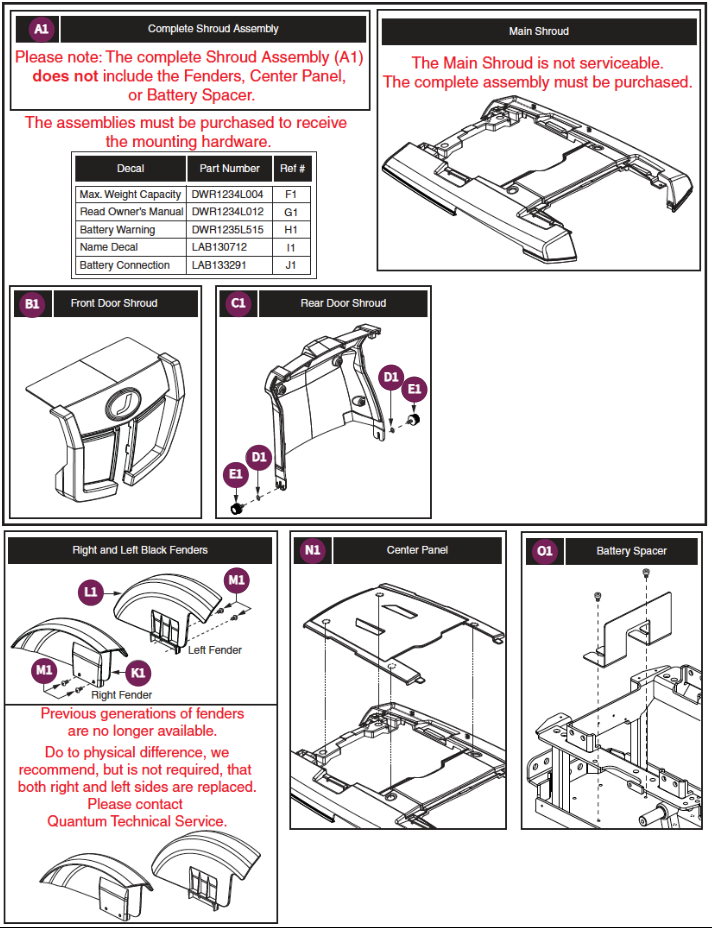

Shroud Assy, Jazzy 600 ES

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # M1	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-S	Part #: SCRPPH1036	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING	Part #: WASNEOP1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E1	Description KNOB,PLASTIC,M4-.7 X 12MM,KNURLED HEAD,TALL,C-1060-041	Part #: PLSKNCP1056	Replaces:	Price Reg. Price: Starting At: $4.45
Ref # J1	Description DECAL,BATTERY CONNECTION,JAZZY 600 ES	Part #: LAB133291	Replaces:	Price Reg. Price: Starting At: $5.74
Ref # G1	Description DECAL,ICON,1.5",READ OWNERS MANUAL,L-1234-012	Part #: DWR1234L012	Replaces:	Price Reg. Price: Starting At: $5.74
Ref # F1	Description DECAL,ICON,MAXIMUM WEIGHT CAPACITY,300LBS/135 KG,L-1234-004	Part #: DWR1234L004	Replaces:	Price Reg. Price: Starting At: $5.74
Ref # H1	Description DECAL,WARNING,BATTERY WARNINGS,L-1235-515	Part #: DWR1235L515	Replaces:	Price Reg. Price: Starting At: $5.74
Ref # L1	Description LEFT FENDER, ILEVEL	Part #: DGN155720	Replaces:	Price Reg. Price: Starting At: $9.78
Ref # K1	Description RIGHT FENDER, ILEVEL	Part #: DGN155719	Replaces:	Price Reg. Price: Starting At: $9.78
Ref # I1	Description DECAL,NAME,JAZZY 600 ES,SIDE	Part #: LAB130712	Replaces:	Price Reg. Price: Starting At: $17.95
Ref # O1	Description SHROUD,ASSY,BATTERY SPACER,METAL,Q6 EDGE	Part #: MEC154025	Replaces:	Price Reg. Price: Starting At: $24.09
Ref # N1	Description SHROUD,ASSY,CENTER PANEL,STANDARD,Q6 EDGE	Part #: SHDASMB6043	Replaces:	Price Reg. Price: Starting At: $34.59
Ref # B1	Description SHROUD,ASSY,FRONT DOOR,CARDINAL RED,J6EDGE	Part #: DGN124999-PRD2	Replaces:	Price Reg. Price: Starting At: $59.74
Ref # C1	Description SHROUD,ASSY,REAR DOOR,CARDINAL RED,JAZZY600 ES	Part #: DGN133935-PRD2	Replaces:	Price Reg. Price: Starting At: $69.28
Ref # A1	Description SHROUD,ASSY,CARDINAL RED,JAZZY600 ES	Part #: DGN131609	Replaces:	Price Reg. Price: Starting At: $300.65

gift guide

Quick & Easy Checkout

Shroud Assy, Jazzy 600 ES

SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ-S

WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING

KNOB,PLASTIC,M4-.7 X 12MM,KNURLED HEAD,TALL,C-1060-041

DECAL,BATTERY CONNECTION,JAZZY 600 ES

DECAL,ICON,1.5",READ OWNERS MANUAL,L-1234-012

DECAL,ICON,MAXIMUM WEIGHT CAPACITY,300LBS/135 KG,L-1234-004

DECAL,WARNING,BATTERY WARNINGS,L-1235-515

LEFT FENDER, ILEVEL

RIGHT FENDER, ILEVEL

DECAL,NAME,JAZZY 600 ES,SIDE

SHROUD,ASSY,BATTERY SPACER,METAL,Q6 EDGE

SHROUD,ASSY,CENTER PANEL,STANDARD,Q6 EDGE

SHROUD,ASSY,FRONT DOOR,CARDINAL RED,J6EDGE

SHROUD,ASSY,REAR DOOR,CARDINAL RED,JAZZY600 ES

SHROUD,ASSY,CARDINAL RED,JAZZY600 ES
