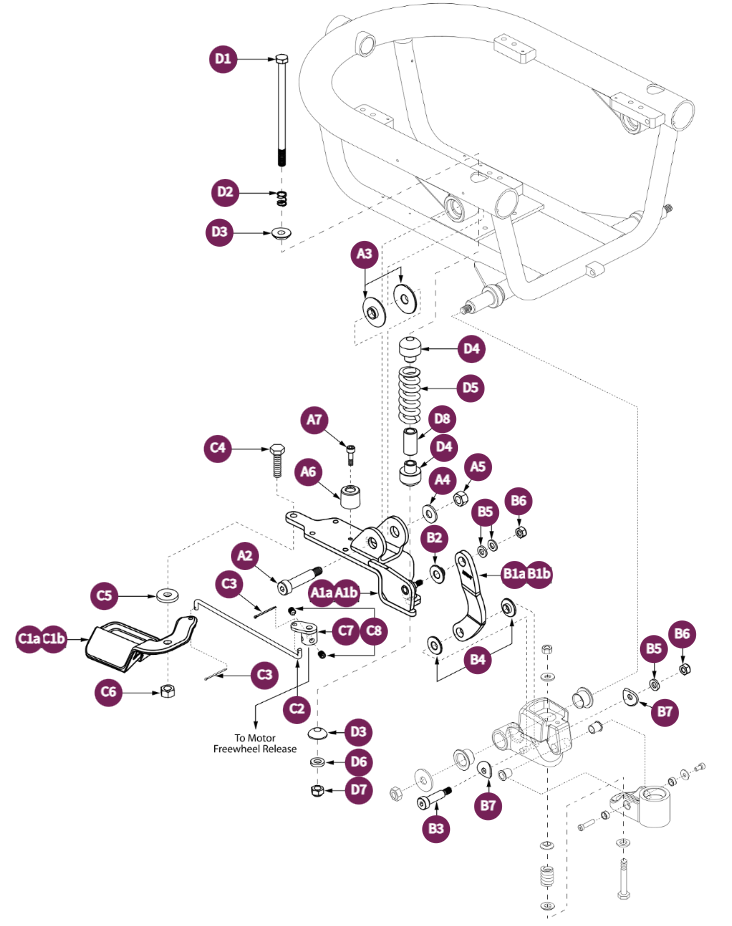

Active Trac,Motor MT,Freewhel Lever,Cater Arm Assy

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # A3	Description BEARING,FLANGE,DELRIN,12MM ID X 15MM OD X 7MM TH X 40MM FOD X 2MM FTH,B-1005-013	Part #: BRGFLNG1053	Replaces:	Price Reg. Price: Starting At: $2.87
Ref # B2	Description BEARING,FLANGE,DELRIN,8.2MM ID X 10.2MM OD X 7.5MM TH X 20MM FOD X 1.5MM FTH,B-1005-010	Part #: BRGFLNG1051	Replaces:	Price Reg. Price: Starting At: $2.87
Ref # A2	Description BOLT, SHOULDER, 12 X 45, M10X1.5, ISO 7379, CL 12.9, BLK	Part #: BLTASHL1126	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169	Part #: NUTNYLK1073	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B6	Description NUT, LOCK, PVTP, M6X1.0, ISO 10511, CL 05, BZ-C	Part #: NUTNYLK1019	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C6	Description NUT, LOCK, PVTP, M8X1.25, ISO 7040, CL 5, BZ	Part #: NUTNYLK1080	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D7	Description NUT, LOCK, PVTP, M8X1.25, ISO 7040, CL 5, BZ-A	Part #: NUTNYLK1080	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C3	Description PIN, COTTER,ZINC PLATED,1/16" X 1	Part #: PINSOTR1000	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C8	Description SCREW,SET,M6-1.0 X 8MM,CUP POINT	Part #: SCRSETS1023	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D6	Description WASHER, BLACK, NYLON, 8.5 ID X 16 OD X 3 THK (SEE DRAWING	Part #: WASNYLN1085	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A4	Description WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ	Part #: WASMETR1043	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B5	Description WASHER, FLAT, 6.4 ID X 12 OD X 1.6 THK, ISO 7089-6-200 HV, BZ (USE WASSTND1097	Part #: WASMETR1033	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C5	Description WASHER,NYLON,BLACK 8 ID X 22 OD X 3 THK (DWG WASNYLN1066	Part #: WASNYLN1066	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B7	Description WASHER,COPE,BLACK E-COAT,9MM ID X 28MM OD X 3MM TH,B-1005-051	Part #: DWR1005B051	Replaces:	Price Reg. Price: Starting At: $3.07
Ref # B3	Description BOLT, SHOULDER, M8 X 35, ISO 7379, CL 12.9, BZ	Part #: BLTASHL1131	Replaces:	Price Reg. Price: Starting At: $3.12
Ref # D1-D8	Description STRUT,ASSY,FRONT SUSPENSION,C-1054-048	Part #: FRMASMB8474	Replaces:	Price Reg. Price: Starting At: $33.77
