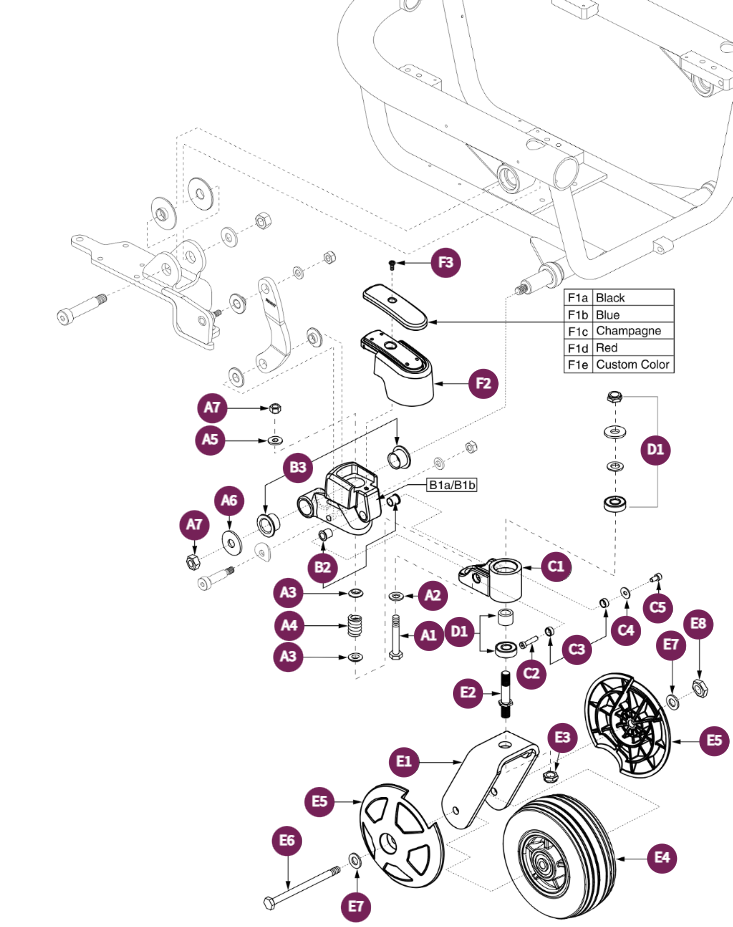

Front Caster Arm,Anti-tip Assy,S/N J7408607001S10

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # E3	Description NUT, HEX JAM, M16X1.5, ISO 8675, CL 04, B	Part #: NUTJAM1027	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E8	Description NUT, HEX, JAM, PVTP, M8X1.25, ISO 10511, CL 04, BZ (DWG NUTNJAM1020)-A	Part #: NUTNJAM1020	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)-A	Part #: NUTNYLK1073	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C5	Description SCREW, SOCKET HEAD, M6X1.0 X 12, ISO 4762, CL 12.9, BZ	Part #: SCRSHCS1169	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A1	Description SCREW,HHCS,BLACK ZINC,M10-1.5 X 50MM,GRADE 10.9,B-1005-118	Part #: SCRHHCS1444	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E6	Description SCREW,HHCS,BLACK ZINC,M8-1.25 X 80MM,GRADE 12.9	Part #: SCRHHCS1384	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ-A	Part #: WASMETR1031	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A6	Description WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ-A	Part #: WASMETR1043	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E7	Description WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-E	Part #: HDW138262	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # E5	Description COVER,CASTER BALL,SLIM,5" WHEEL,C-1202-012	Part #: DWR1202C012	Replaces:	Price Reg. Price: Starting At: $16.77
Ref # E4	Description WHEEL,ASSY,CASTER,FLAT FREE,BLACK RIM/GRAY TIRE,5" X 1.75",W/BEARINGS & SPACER,E-1202-008	Part #: WHLASMB1745	Replaces:	Price Reg. Price: Starting At: $94.08

gift guide

Quick & Easy Checkout

Front Caster Arm,Anti-tip Assy,S/N J7408607001S10

NUT, HEX JAM, M16X1.5, ISO 8675, CL 04, B

NUT, HEX, JAM, PVTP, M8X1.25, ISO 10511, CL 04, BZ (DWG NUTNJAM1020)-A

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)-A

SCREW, SOCKET HEAD, M6X1.0 X 12, ISO 4762, CL 12.9, BZ

SCREW,HHCS,BLACK ZINC,M10-1.5 X 50MM,GRADE 10.9,B-1005-118

SCREW,HHCS,BLACK ZINC,M8-1.25 X 80MM,GRADE 12.9

WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ-A

WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ-A

WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ-E

COVER,CASTER BALL,SLIM,5" WHEEL,C-1202-012

WHEEL,ASSY,CASTER,FLAT FREE,BLACK RIM/GRAY TIRE,5" X 1.75",W/BEARINGS & SPACER,E-1202-008
