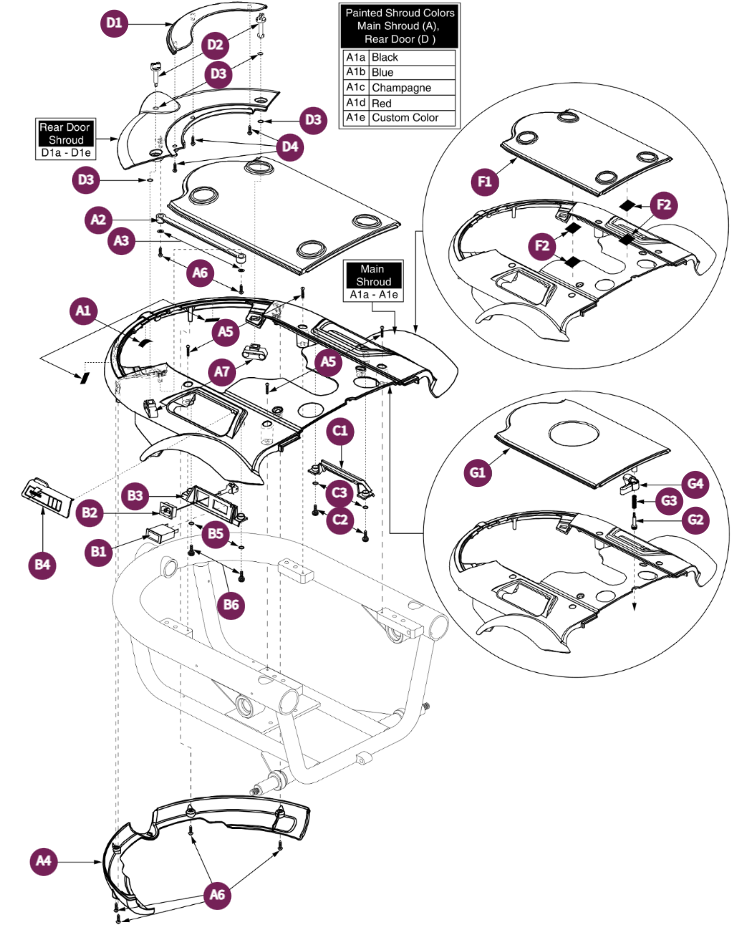

Shroud Assy, Onboard Charger, Jazzy 610

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # D1	Description SHROUD,BLACK,REAR DOOR,D-1054-013	Part #: DWR1054D013	Replaces:	Price Reg. Price: Starting At: $2.81
Ref # A7	Description RECEPTACLE, SNAP-IN BACK LOAD, 0.228 PANEL-GAP, POM, BLK (DZUS 4604-6-BK	Part #: CLISTL1012	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ-E	Part #: SCRPPH1163	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A6	Description SCREW, PPH - SHEET METAL,BLACK ZINC,M4 X 10MM	Part #: SCRPPSM1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D4	Description SCREW, PPH - SHEET METAL,BLACK ZINC,M4 X 10MM-A	Part #: SCRPPSM1029	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D2	Description STUD, SLOTTED KNOB, SNAP-IN, 0.25 DIA X 1.0 LG INCH, POM, BLK (DZUS 4644-25-BK	Part #: CLISTL1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A3	Description WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK	Part #: WASMETR1042	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B5	Description WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING-C	Part #: WASNEOP1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C3	Description WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING-D	Part #: WASNEOP1003	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A2	Description LANYARD,NATURAL RUBBER,6",C-1054-019	Part #: DWR1054C019	Replaces:	Price Reg. Price: Starting At: $3.48
Ref # A4	Description COVER,TUBE,E-1054-007	Part #: DWR1054E007	Replaces:	Price Reg. Price: Starting At: $6.14
Ref # F1-F2	Description SHROUD,ASSY,CENTER,BLACK,ULTRA	Part #: SHDASMB4072	Replaces:	Price Reg. Price: Starting At: $9.21
Ref # G1-G4	Description SHROUD,ASSY,CENTER,BLACK,POWER SEAT,ULTRA	Part #: SHDASMB3983	Replaces:	Price Reg. Price: Starting At: $9.39
Ref # C1-C3	Description ELECTRONIC,ASSY,BLANK PANEL	Part #: ELEASMB4269	Replaces:	Price Reg. Price: Starting At: $23.58
Ref # D1c-D4	Description SHROUD,ASSY,CHAMPAGNE,REAR DOOR,ULTRA	Part #: SHDASMB4024	Replaces:	Price Reg. Price: Starting At: $39.36
Ref # D1a-D4	Description SHROUD,ASSY,BACK IN BLACK,REAR DOOR,ULTRA/Q610/J6	Part #: SHDASMB4023	Replaces:	Price Reg. Price: Starting At: $50.18
Ref # D1d-D4	Description SHROUD,ASSY,RED CORVETTE,REAR DOOR,ULTRA/Q610/J6	Part #: SHDASMB3876	Replaces:	Price Reg. Price: Starting At: $72.05
Ref # D1b-D14	Description SHROUD,ASSY,VIPER BLUE,REAR DOOR,ULTRA/Q610/J6	Part #: SHDASMB3917	Replaces:	Price Reg. Price: Starting At: $72.05

gift guide

Quick & Easy Checkout

Shroud Assy, Onboard Charger, Jazzy 610

SHROUD,BLACK,REAR DOOR,D-1054-013

RECEPTACLE, SNAP-IN BACK LOAD, 0.228 PANEL-GAP, POM, BLK (DZUS 4604-6-BK

SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ-E

SCREW, PPH - SHEET METAL,BLACK ZINC,M4 X 10MM

SCREW, PPH - SHEET METAL,BLACK ZINC,M4 X 10MM-A

STUD, SLOTTED KNOB, SNAP-IN, 0.25 DIA X 1.0 LG INCH, POM, BLK (DZUS 4644-25-BK

WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK

WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING-C

WASHER,BLACK,NEOPRENE,3.20MM ID X 7.00MM OD X 1.90MM TH,O-RING-D

LANYARD,NATURAL RUBBER,6",C-1054-019

COVER,TUBE,E-1054-007

SHROUD,ASSY,CENTER,BLACK,ULTRA

SHROUD,ASSY,CENTER,BLACK,POWER SEAT,ULTRA

ELECTRONIC,ASSY,BLANK PANEL

SHROUD,ASSY,CHAMPAGNE,REAR DOOR,ULTRA

SHROUD,ASSY,BACK IN BLACK,REAR DOOR,ULTRA/Q610/J6

SHROUD,ASSY,RED CORVETTE,REAR DOOR,ULTRA/Q610/J6

SHROUD,ASSY,VIPER BLUE,REAR DOOR,ULTRA/Q610/J6
