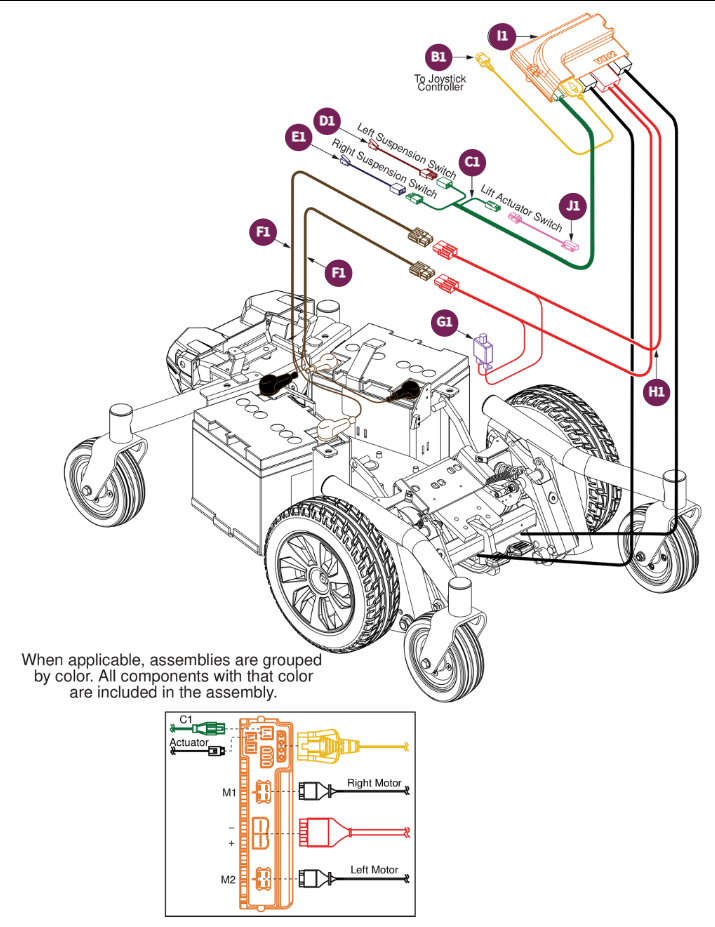

Electrical Assy, VR2, 1 Actuator, Jazzy Air MED

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C1	Description SCREW, SOCKET HEAD, M8X1.25 X 35, ISO 4762, CL 12.9, BZ, PVTP	Part #: HDW138550	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description HARNESS, SUSPENSION LOCK, JAZZY AIR	Part #: ELE154541	Replaces:	Price Reg. Price: Starting At: $19.87
Ref # G1	Description ELECTRONIC,CIRCUIT BREAKER,25AMP-C	Part #: ELECBRK1001	Replaces:	Price Reg. Price: Starting At: $42.60
Ref # D1	Description LEFT SUSPENSION INHIBIT HARNESS	Part #: ELE2302519	Replaces:	Price Reg. Price: Starting At: $50.00
Ref # J1	Description LIFT ACTUATOR INHIBIT HARNESS	Part #: ELE2302520	Replaces:	Price Reg. Price: Starting At: $50.00
Ref # E1	Description RIGHT SUSPENSION INHIBIT HARNESS	Part #: ELE2302518	Replaces:	Price Reg. Price: Starting At: $50.00
Ref # F1	Description ELECTRONIC,HARNESS, BATTERY CABLE,GC,JAZZYSELECT,H-1060-001-D	Part #: DWR1060H001	Replaces:	Price Reg. Price: Starting At: $59.54
Ref # H1	Description JAZZY AIR 2.0 POWER HARNESS	Part #: ELE1706596	Replaces:	Price Reg. Price: Starting At: $80.09
Ref # B1	Description VR2 EXTENSION CABLE 2M (P&G: SA81797	Part #: ELE1800022	Replaces:	Price Reg. Price: Starting At: $83.52
Ref # I1	Description CONTROLLER,VR2,ASSY,40 AMP,1 ACTUATOR,JAZZY AIR 2	Part #: CTL1807519	Replaces:	Price Reg. Price: Starting At: $506.05

gift guide

Quick & Easy Checkout

Electrical Assy, VR2, 1 Actuator, Jazzy Air MED

SCREW, SOCKET HEAD, M8X1.25 X 35, ISO 4762, CL 12.9, BZ, PVTP

HARNESS, SUSPENSION LOCK, JAZZY AIR

ELECTRONIC,CIRCUIT BREAKER,25AMP-C

LEFT SUSPENSION INHIBIT HARNESS

LIFT ACTUATOR INHIBIT HARNESS

RIGHT SUSPENSION INHIBIT HARNESS

ELECTRONIC,HARNESS, BATTERY CABLE,GC,JAZZYSELECT,H-1060-001-D

JAZZY AIR 2.0 POWER HARNESS

VR2 EXTENSION CABLE 2M (P&G: SA81797

CONTROLLER,VR2,ASSY,40 AMP,1 ACTUATOR,JAZZY AIR 2
