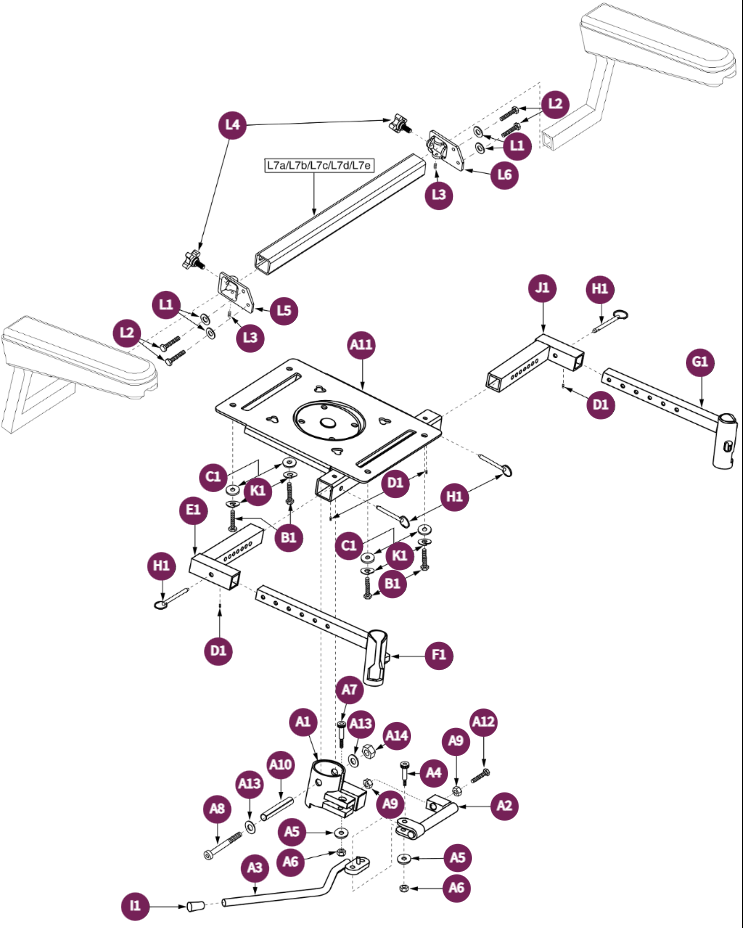

Frt Lock,ELR,SA,SOL 16-24,DLXCont,SSP,Frt Rigging

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # I1	Description HAND GRIP,BLACK,VINYL,.375ID X 3"L-E	Part #: PROHDLC1034	Replaces:	Price Reg. Price: Starting At: $3.01
Ref # A13	Description WASHER, FLAT, 5.3 ID X 10 OD X 1.0 THK, ISO 7089-5-200HV, ZINC (USE WASSTND1142)-B	Part #: WASSTND1039	Replaces:	Price Reg. Price: Starting At: $3.02
Ref # A6	Description NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP-F	Part #: NUTNYLK1040	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B1	Description SCREW, HEX HEAD, .250-20 X 1.00, SAE J429 GR 8, BZ, PVTP-E	Part #: SCRHHCS1373	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # L3	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-B	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # D1	Description SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-O	Part #: SCRSETS1056	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # L2	Description SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-B	Part #: SCRHHCS1011	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description WASHER, FLAT, 0.281 ID X 0.50 OD X 0.047 TH, ASTM F844, ZN-B	Part #: WASSAE1005	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ-H	Part #: WASSTND1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description BOLT,SHOULDER,1/4" X 0.75"-A	Part #: BLTASHL1062	Replaces:	Price Reg. Price: Starting At: $3.23
Ref # L4	Description HANDLE,LOCK KNOB,B-1000-152-TWW	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # H1	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-BB	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # K1	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-D	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # L6	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-B	Part #: DWR1010C013	Replaces:	Price Reg. Price: Starting At: $12.38
Ref # L5	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-B	Part #: DWR1010C007	Replaces:	Price Reg. Price: Starting At: $12.41
Ref # L7c	Description SEAT CROSS BAR,22",C-1200-122-A	Part #: DWR1200C122H	Replaces:	Price Reg. Price: Starting At: $35.61
Ref # J1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-H	Part #: DWG1107C130	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # E1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-H	Part #: DWG1107C120	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # L7a	Description SEAT CROSS BAR,18",C-1200-122-B	Part #: DWR1200C122D	Replaces:	Price Reg. Price: Starting At: $38.16
Ref # L7e	Description SEAT CROSS BAR,26",C-1200-122-A	Part #: DWR1200C122L	Replaces:	Price Reg. Price: Starting At: $39.02
Ref # L7b	Description SEAT CROSS BAR,20",C-1200-122-D	Part #: DWR1200C122F	Replaces:	Price Reg. Price: Starting At: $42.32
Ref # L1-L7e	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,26"W,JET-E	Part #: FRMASMB9618	Replaces:	Price Reg. Price: Starting At: $43.31
Ref # L1-L7a	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-F	Part #: FRMASMB5734	Replaces:	Price Reg. Price: Starting At: $43.85
Ref # L1-L7b	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,20"W,JET-F	Part #: FRMASMB5735	Replaces:	Price Reg. Price: Starting At: $47.00
Ref # L7d	Description SEAT CROSS BAR,24",C-1200-122-B	Part #: DWR1200C122J	Replaces:	Price Reg. Price: Starting At: $49.34
Ref # L1-L7d	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,24"W,JET-F	Part #: FRMASMB7667	Replaces:	Price Reg. Price: Starting At: $56.55
Ref # L1-L7c	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,22"W,JET-H	Part #: FRMASMB6360	Replaces:	Price Reg. Price: Starting At: $69.21
Ref # A1-A14	Description SEAT FRAME,ASSY,FRICTION LOCK,ELR/SA,E-1107-030-C	Part #: FRMASMB1851	Replaces:	Price Reg. Price: Starting At: $782.54
