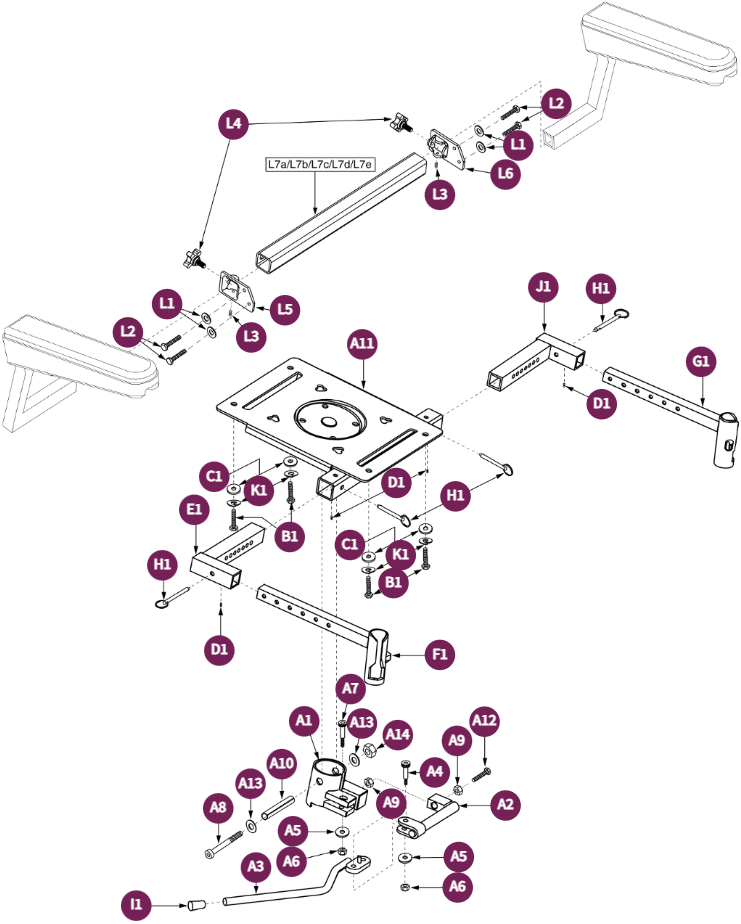

Friction Lock-DLX Contour, Front Riggings

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # I1	Description HAND GRIP,BLACK,VINYL,.375ID X 3"L-C	Part #: PROHDLC1034	Replaces:	Price Reg. Price: Starting At: $3.01
Ref # D1	Description HAND GRIP,BLACK,VINYL,.375ID X 3"L-F	Part #: PROHDLC1034	Replaces:	Price Reg. Price: Starting At: $3.01
Ref # A13	Description WASHER, FLAT, 5.3 ID X 10 OD X 1.0 THK, ISO 7089-5-200HV, ZINC (USE WASSTND1142)-C	Part #: WASSTND1039	Replaces:	Price Reg. Price: Starting At: $3.02
Ref # A6	Description NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP-G	Part #: NUTNYLK1040	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # B1	Description SCREW, HEX HEAD, .250-20 X 1.25, SAE J429, GR 5, BZ-D	Part #: SCRHHCS1188	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # L3	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # L2	Description SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5	Part #: SCRHHCS1011	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description WASHER, FLAT, 0.281 ID X 0.50 OD X 0.047 TH, ASTM F844, ZN-C	Part #: WASSAE1005 WASHER, FLAT, 0.281 ID X 0.50 OD X 0.047 TH, ASTM F844, ZN	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ-G	Part #: WASSTND1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description BOLT,SHOULDER,1/4" X 0.75"-C	Part #: BLTASHL1062	Replaces:	Price Reg. Price: Starting At: $3.23
Ref # L1	Description WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-E	Part #: WASSAE1003	Replaces:	Price Reg. Price: Starting At: $3.29
Ref # L1	Description WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-J	Part #: WASSAE1003	Replaces:	Price Reg. Price: Starting At: $3.29
Ref # L4	Description SCRSETS1013 SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-C	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # H1	Description PIN, COTTERLESS DETENT W/ RING, .25 DIA X 1.5 GRIP LG (DWG B1005-168)-Z	Part #: PINCOTD1000	Replaces:	Price Reg. Price: Starting At: $5.92
Ref # D1	Description SCREW, SET, CUP POINT, M8X1.25 X 10, ISO 4029, STL, BZ-N	Part #: SCRSETS1056	Replaces:	Price Reg. Price: Starting At: $6.12
Ref # K1	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-B	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # L6	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013	Part #: DWR1010C013	Replaces:	Price Reg. Price: Starting At: $12.38
Ref # L5	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007	Part #: DWR1010C007	Replaces:	Price Reg. Price: Starting At: $12.41
Ref # L7a	Description SEAT CROSS BAR,16",C-1200-122	Part #: DWR1200C122B	Replaces:	Price Reg. Price: Starting At: $20.07
Ref # J1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,LEFT,C-1107-013-G	Part #: DWG1107C130	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # E1	Description LEGREST HANGER RECEIVER,7 POSITION WIDTH ADJ,RIGHT,C-1107-012-G	Part #: DWG1107C120	Replaces:	Price Reg. Price: Starting At: $36.52
Ref # L7b	Description SEAT CROSS BAR,18",C-1200-122	Part #: DWR1200C122D	Replaces:	Price Reg. Price: Starting At: $38.16
Ref # L7c	Description DWR1200C122D SEAT CROSS BAR,18",C-1200-122	Part #: DWR1200C122F	Replaces:	Price Reg. Price: Starting At: $42.32
Ref # L1-L7a	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,16"W,JET-B	Part #: FRMASMB5733	Replaces:	Price Reg. Price: Starting At: $43.85
Ref # L1-L7b	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-D	Part #: FRMASMB5734	Replaces:	Price Reg. Price: Starting At: $43.85
Ref # L1-L7c	Description FRMASMB5734 ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET	Part #: FRMASMB5735	Replaces:	Price Reg. Price: Starting At: $47.00
Ref # L7e	Description SEAT CROSS BAR,24",C-1200-122	Part #: DWR1200C122J	Replaces:	Price Reg. Price: Starting At: $49.34
Ref # L1-L7e	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,24"W,JET-D	Part #: FRMASMB7667	Replaces:	Price Reg. Price: Starting At: $56.55
Ref # L1-L7d	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,22"W,JET-E	Part #: FRMASMB6360	Replaces:	Price Reg. Price: Starting At: $69.21
Ref # L7d	Description SEAT CROSS BAR,20",C-1200-122-A	Part #: DWR1200C122F	Replaces:	Price Reg. Price: Starting At: $84.64
Ref # A1-L7a	Description SEAT FRAME,ASSY,PINCHLESS HINGE FRICTION LOCK,16"W,ELR/SA,TAPER PIN	Part #: FRMASMB4363	Replaces:	Price Reg. Price: Starting At: $536.97
Ref # A1-L7d	Description SEAT FRAME,ASSY,PINCHLESS HINGE FRICTION LOCK,22"W,ELR/SA,TAPER PIN	Part #: FRMASMB4366	Replaces:	Price Reg. Price: Starting At: $536.97
Ref # A1-L7c	Description SEAT FRAME,ASSY,PINCHLESS HINGE FRICTION LOCK,20"W,ELR/SA,TAPER PIN	Part #: FRMASMB4365	Replaces:	Price Reg. Price: Starting At: $539.78
Ref # A1-L7e	Description SEAT FRAME,ASSY,PINCHLESS HINGE FRICTION LOCK,24"W,ELR/SA,TAPER PIN	Part #: FRMASMB4367	Replaces:	Price Reg. Price: Starting At: $539.78
Ref #	Description SEAT FRAME,ASSY,PINCHLESS HINGE FRICTION LOCK,18"W,ELR/SA,TAPER PIN	Part #:	Replaces:	Price Reg. Price: Starting At: $548.22
Ref # A1-A14	Description SEAT FRAME,ASSY,FRICTION LOCK,ELR/SA,E-1107-030-D	Part #: FRMASMB1851	Replaces:	Price Reg. Price: Starting At: $782.54
