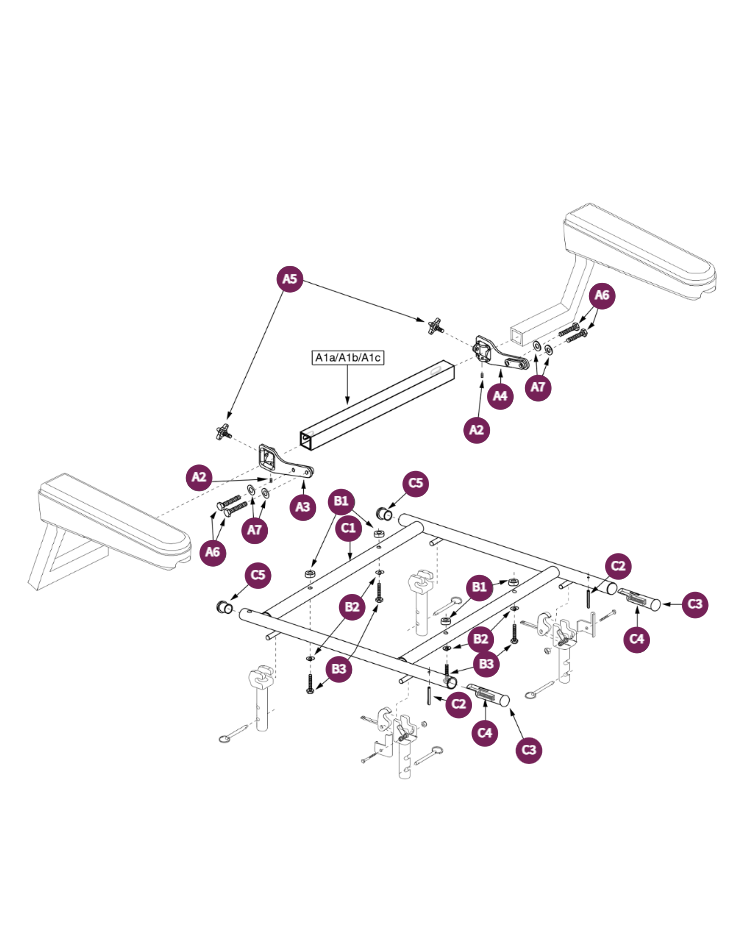

H-Frame-LTD Recline 16-20W

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # A6	Description SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ-O	Part #: SCRHHCS1207	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A2	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-FF	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ-O	Part #: WASSTND1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description HANDLE,LOCK KNOB,B-1000-152-HHHH	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # B2	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-LL	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # A1a	Description SEAT CROSS BAR,17",C-1200-122-C	Part #: DWR1200C122C	Replaces:	Price Reg. Price: Starting At: $29.18
Ref # A4	Description HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,LEFT,D-1010-214-M	Part #: DWR1010D214	Replaces:	Price Reg. Price: Starting At: $40.67
Ref # A1b	Description SEAT CROSS BAR,19",C-1200-122-G	Part #: DWR1200C122E SEAT CROSS BAR,19",C-1200-122	Replaces:	Price Reg. Price: Starting At: $40.84
Ref # A1c	Description SEAT CROSS BAR,21",C-1200-122-E	Part #: DWR1200C122G	Replaces:	Price Reg. Price: Starting At: $45.91
Ref # A3	Description HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,RIGHT,D-1010-213-M	Part #: DWR1010D213	Replaces:	Price Reg. Price: Starting At: $47.05
Ref # A1a-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,17"W,JET-E	Part #: FRMASMB5812	Replaces:	Price Reg. Price: Starting At: $49.78
Ref # A1c-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,21"W,JET-K	Part #: FRMASMB5816	Replaces:	Price Reg. Price: Starting At: $66.48
Ref # A1b-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,19"W,JET-K	Part #: FRMASMB5815	Replaces:	Price Reg. Price: Starting At: $159.96
