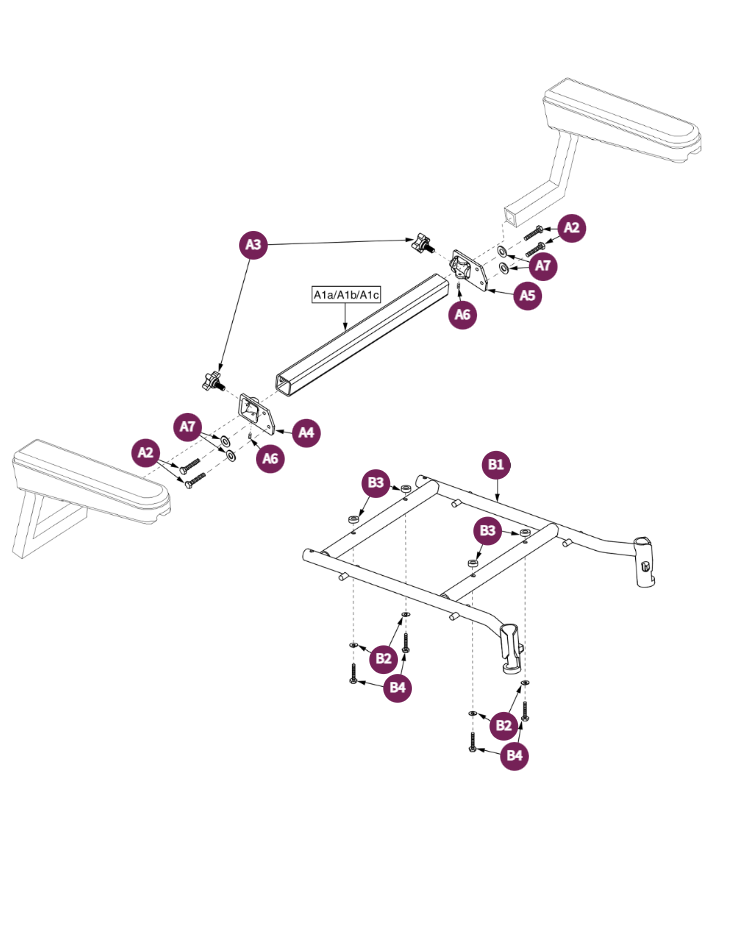

H-Frame-Q1114,Jzy1113,Pinchles1113,ELR SA 20D

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # A6	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-PP	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A2	Description SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-U	Part #: SCRHHCS1011	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-Z	Part #: WASSAE1003	Replaces:	Price Reg. Price: Starting At: $3.29
Ref # A3	Description HANDLE,LOCK KNOB,B-1000-152-AP	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # B2	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-UU	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # A5	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-W	Part #: DWR1010C013	Replaces:	Price Reg. Price: Starting At: $12.38
Ref # A4	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-W	Part #: DWR1010C007	Replaces:	Price Reg. Price: Starting At: $12.41
Ref # A1a	Description SEAT CROSS BAR,16",C-1200-122-I	Part #: DWR1200C122B	Replaces:	Price Reg. Price: Starting At: $20.07
Ref # A1b	Description SEAT CROSS BAR,18",C-1200-122-M	Part #: DWR1200C122D	Replaces:	Price Reg. Price: Starting At: $38.16
Ref # A1c	Description SEAT CROSS BAR,20",C-1200-122-O	Part #: DWR1200C122F	Replaces:	Price Reg. Price: Starting At: $42.32
Ref # A1a-A7	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,16"W,JET-L	Part #: FRMASMB5733	Replaces:	Price Reg. Price: Starting At: $43.85
Ref # A1b-A7	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-R	Part #: FRMASMB5734	Replaces:	Price Reg. Price: Starting At: $43.85
Ref # A1c-A7	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,20"W,JET-Q	Part #: FRMASMB5735	Replaces:	Price Reg. Price: Starting At: $47.00

gift guide

Quick & Easy Checkout

H-Frame-Q1114,Jzy1113,Pinchles1113,ELR SA 20D

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-PP

SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-U

WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-Z

HANDLE,LOCK KNOB,B-1000-152-AP

WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-UU

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-W

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-W

SEAT CROSS BAR,16",C-1200-122-I

SEAT CROSS BAR,18",C-1200-122-M

SEAT CROSS BAR,20",C-1200-122-O

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,16"W,JET-L

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-R

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,20"W,JET-Q
