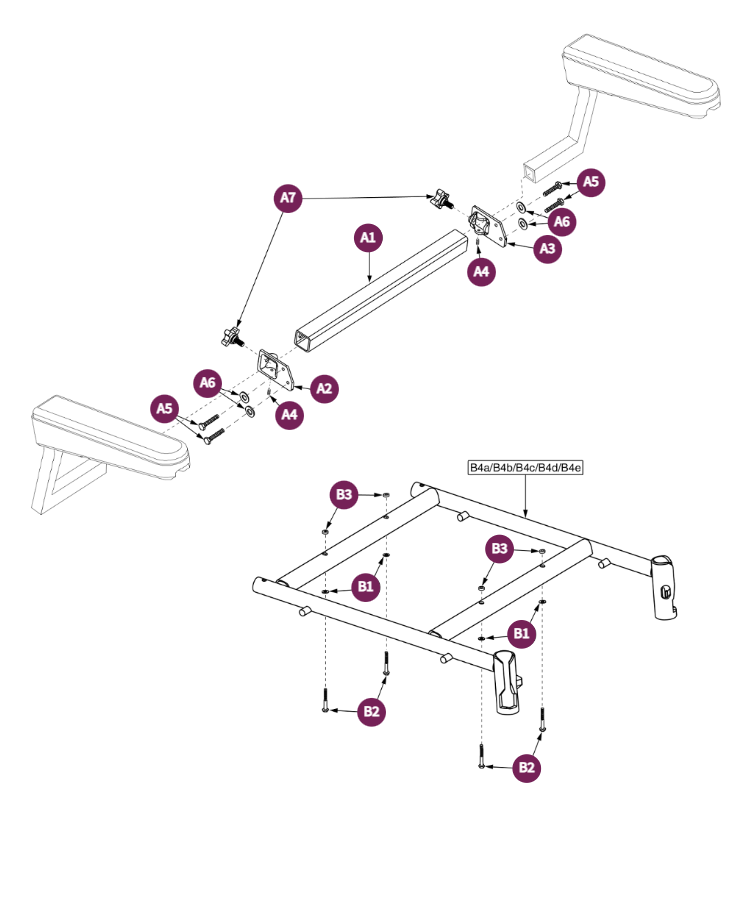

H-Frame-Pinchless Hinge-SSP,ELR SA Solid Pin 16W

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # A4	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-R	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-H	Part #: SCRHHCS1011	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A6	Description WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-L	Part #: WASSAE1003	Replaces:	Price Reg. Price: Starting At: $3.29
Ref # A7	Description HANDLE,LOCK KNOB,B-1000-152-KKK	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # B1	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-S	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # A3	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-H	Part #: DWR1010C013	Replaces:	Price Reg. Price: Starting At: $12.38
Ref # A2	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-H	Part #: DWR1010C007	Replaces:	Price Reg. Price: Starting At: $12.41
Ref # A1	Description SEAT CROSS BAR,18",C-1200-122-F	Part #: DWR1200C122D	Replaces:	Price Reg. Price: Starting At: $38.16
Ref # A1-A7	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-K	Part #: FRMASMB5734	Replaces:	Price Reg. Price: Starting At: $43.85

gift guide

Quick & Easy Checkout

H-Frame-Pinchless Hinge-SSP,ELR SA Solid Pin 16W

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-R

SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-H

WASHER, FLAT, .25 ID X .63OD X .063THK, ASTM F844, BZ-L

HANDLE,LOCK KNOB,B-1000-152-KKK

WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-S

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-H

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-H

SEAT CROSS BAR,18",C-1200-122-F

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-K
