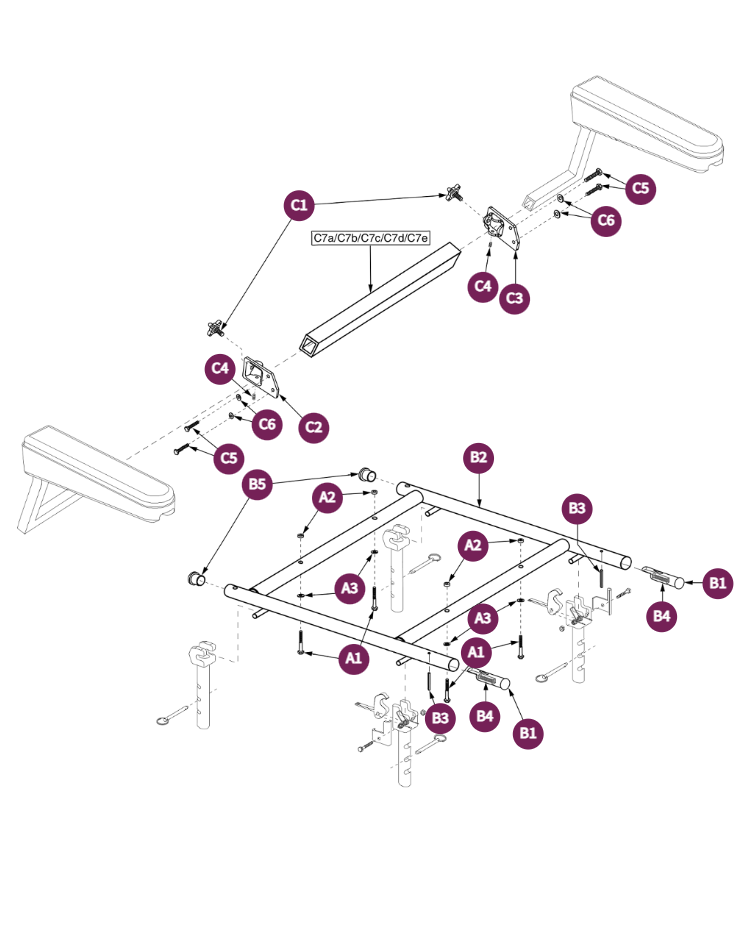

H-Frame-Pinchless Hinge-16W-24W

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # C4	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-M	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C5	Description SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-C	Part #: SCRHHCS1011	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # C1	Description HANDLE,LOCK KNOB,B-1000-152-FFF	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # A3	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-N	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # C3	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-C	Part #: DWR1010C013	Replaces:	Price Reg. Price: Starting At: $12.38
Ref # C2	Description RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-C	Part #: DWR1010C007	Replaces:	Price Reg. Price: Starting At: $12.41
Ref # C1-C7c	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-G	Part #: FRMASMB5735	Replaces:	Price Reg. Price: Starting At: $47.00
Ref # C1-C7a	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,16"W,JET-C	Part #: FRMASMB5733	Replaces:	Price Reg. Price: Starting At: $48.85
Ref # C1-C7e	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,24"W,JET-G	Part #: FRMASMB7667	Replaces:	Price Reg. Price: Starting At: $56.55
Ref # C1-C7d	Description ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,22"W,JET-I	Part #: FRMASMB6360	Replaces:	Price Reg. Price: Starting At: $69.21

gift guide

Quick & Easy Checkout

H-Frame-Pinchless Hinge-16W-24W

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-M

SCREW,HHCS,ZINC,1/4-20 X 1.00",GRADE 5-C

HANDLE,LOCK KNOB,B-1000-152-FFF

WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-N

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,LEFT,C-1010-013-C

RECEIVER BRACKET WELDMENT,SEAT CROSS TUBE,RIGHT,C-1010-007-C

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,18"W,JET-G

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,16"W,JET-C

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,24"W,JET-G

ARMREST RECEIVER BAR,ASSY,PINCHLESS HINGE,22"W,JET-I
