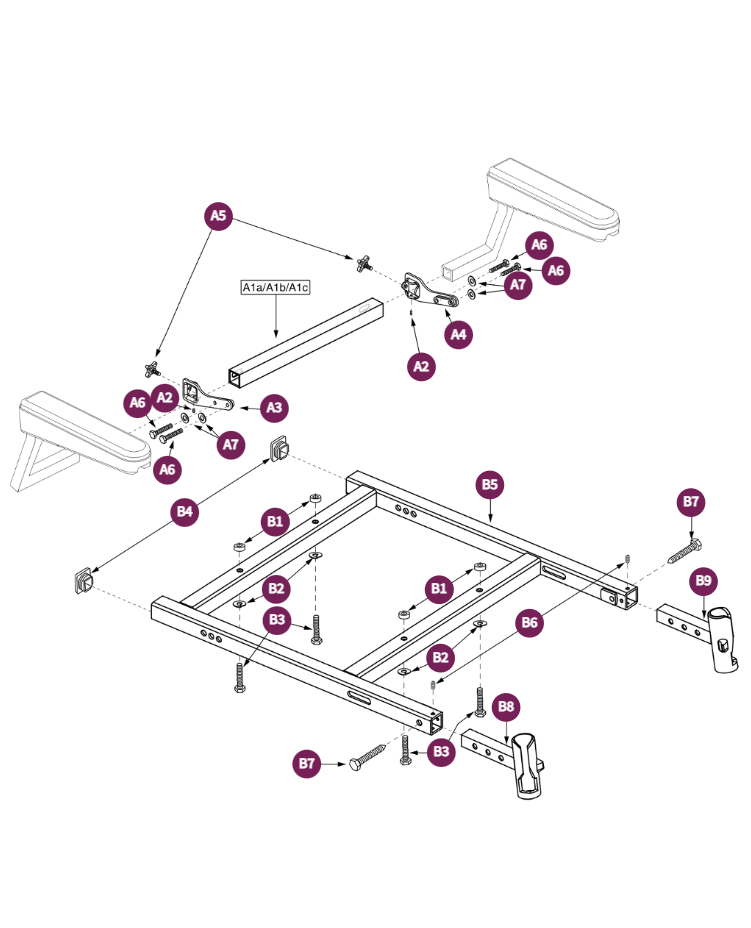

HFrame-SquareFrame Blast ELR SA Tap Pin 115 16-20W

Ref #	Description	Part #	Replaces	Price	Quantity
Ref # B4	Description PLUG, SQUARE, 1 W X 0.44 LG, PLASTIC, BLK (DWG PROECAP1000)-I	Part #: PROECAP1000	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A6	Description SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ-L	Part #: SCRHHCS1207	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A2	Description SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-W	Part #: SCRSETS1013	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A7	Description WASHER,FLAT,ZINC,5/16,0.3437" ID X 0.6875" OD X 0.0625" TH,SAE-A	Part #: WASSAE1002	Replaces:	Price Reg. Price: Starting At: $3.06
Ref # A5	Description HANDLE,LOCK KNOB,B-1000-152-RRR	Part #: DWR1000B152	Replaces:	Price Reg. Price: Starting At: $4.79
Ref # B2	Description WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-CC	Part #: WASLOCK1000	Replaces:	Price Reg. Price: Starting At: $7.38
Ref # A1a	Description SEAT CROSS BAR,17",C-1200-122-B	Part #: DWR1200C122C	Replaces:	Price Reg. Price: Starting At: $29.18
Ref # A4	Description HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,LEFT,D-1010-214-J	Part #: DWR1010D214	Replaces:	Price Reg. Price: Starting At: $40.67
Ref # A1b	Description SEAT CROSS BAR,19",C-1200-122-D	Part #: DWR1200C122E	Replaces:	Price Reg. Price: Starting At: $40.84
Ref # A1c	Description SEAT CROSS BAR,21",C-1200-122-B	Part #: DWR1200C122G	Replaces:	Price Reg. Price: Starting At: $45.91
Ref # A3	Description HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,RIGHT,D-1010-213-J	Part #: DWR1010D213	Replaces:	Price Reg. Price: Starting At: $47.05
Ref # A1a-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,17"W,JET-D	Part #: FRMASMB5812	Replaces:	Price Reg. Price: Starting At: $49.78
Ref # A1c-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,21"W,JET-H	Part #: FRMASMB5816	Replaces:	Price Reg. Price: Starting At: $66.48
Ref # A1b-A7	Description ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,19"W,JET-H	Part #: FRMASMB5815	Replaces:	Price Reg. Price: Starting At: $159.96

gift guide

Quick & Easy Checkout

HFrame-SquareFrame Blast ELR SA Tap Pin 115 16-20W

PLUG, SQUARE, 1 W X 0.44 LG, PLASTIC, BLK (DWG PROECAP1000)-I

SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ-L

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO-W

WASHER,FLAT,ZINC,5/16,0.3437" ID X 0.6875" OD X 0.0625" TH,SAE-A

HANDLE,LOCK KNOB,B-1000-152-RRR

WASHER, REGULAR SPRING LOCK, .25 ID X .47 OD X .068 THK, ASME B18.21.1, STL, BZ-CC

SEAT CROSS BAR,17",C-1200-122-B

HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,LEFT,D-1010-214-J

SEAT CROSS BAR,19",C-1200-122-D

SEAT CROSS BAR,21",C-1200-122-B

HINGE,HINGE CONNECTOR BRACKET WELDMENT,115Â° LTD REC,RIGHT,D-1010-213-J

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,17"W,JET-D

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,21"W,JET-H

ARMREST RECEIVER BAR,ASSY,115° LTD REC HINGE,19"W,JET-H
